| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | FTTA Breakout Fanout Patchcords | Insertion Loss: | ≤0.3dB |
|---|---|---|---|
| Mechanical Life: | 500cycles | Working Temperature: | -20°C~+70°C |
| High Light: | Fanout Patchcords,Fanout Fiber Optic Patch Cord,Fiber Optic Patch Cord 144 Cores |
||

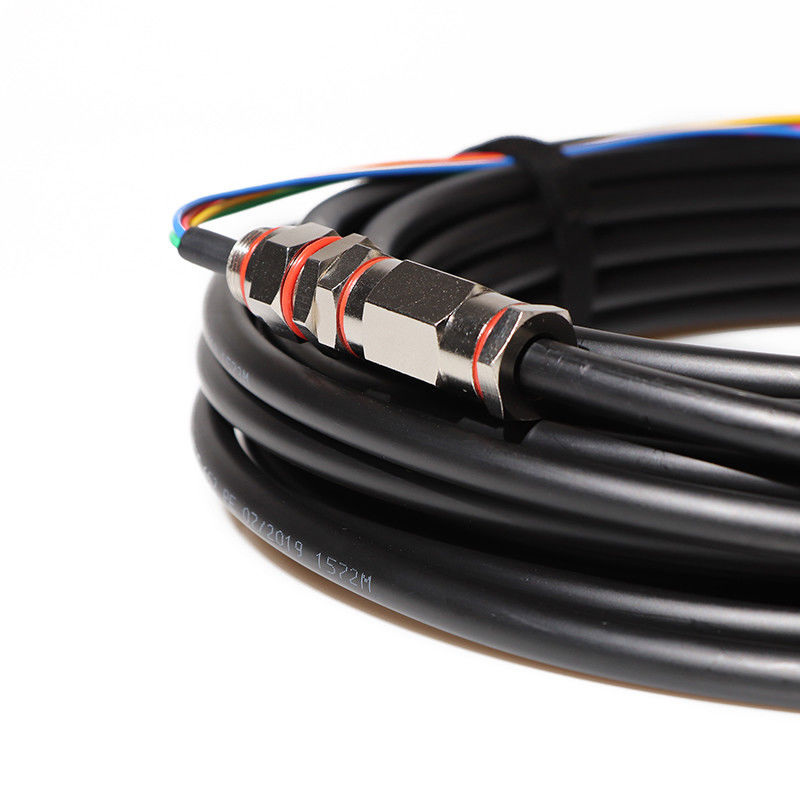

Single Mode Breakout Fanout Fiber Optic Patch Cord 144 Cores
Features
General purpose and standard stock items
Lightweight
Pliable
Non-stretch
High pulling load strength
Resists lateral pressure
Excellent bending characteristics
Cable Specifications
|
Fiber Count |
Tight Diameter mm |
Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100m |
Bending Radius Static/Dynamic mm |
|
1 |
0.6/0.9 |
2 |
11 |
300/750 |
200/1000 |
20D/10D |
|
1 |
0.6/0.9 |
3 |
15 |
300/750 |
200/1000 |
20D/10D |
|
2 |
0.6/0.9 |
3 |
15 |
300/750 |
200/1000 |
20D/10D |
|
2 |
0.6/0.9 |
2.0*4.0 |
30 |
300/750 |
200/1000 |
20D/10D |
|
2 |
0.6/0.9 |
3.0*6.0 |
40 |
300/750 |
200/1000 |
20D/10D |
Armored Patchcords Specifications
|
Item |
Data |
|
Insertion Loss |
≤0.3dB |
|
Return Loss |
SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
|
Mechanical life |
500cycles |
|
Working temperature |
-20°C~+70°C |
|
Storage temperature |
-20°C~+70°C |
|
Tensile Data |
Tensile between junction and fiber cable≥100N |
Application
1. LAN, WAN and Metro Networks
2. FTTH project & FTTX Deployments
3. CATV System
4. GPON, EPON
5. Fiber Optic Test Equipment
6. Data-base Transmit Broadband Net
