| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | OPTITAP | ||
|---|---|---|---|
| High Light: | UPC 30dB fiber patch cord types,0.3dB fiber patch cord types,waterproof pigtail connectors 12f |
||

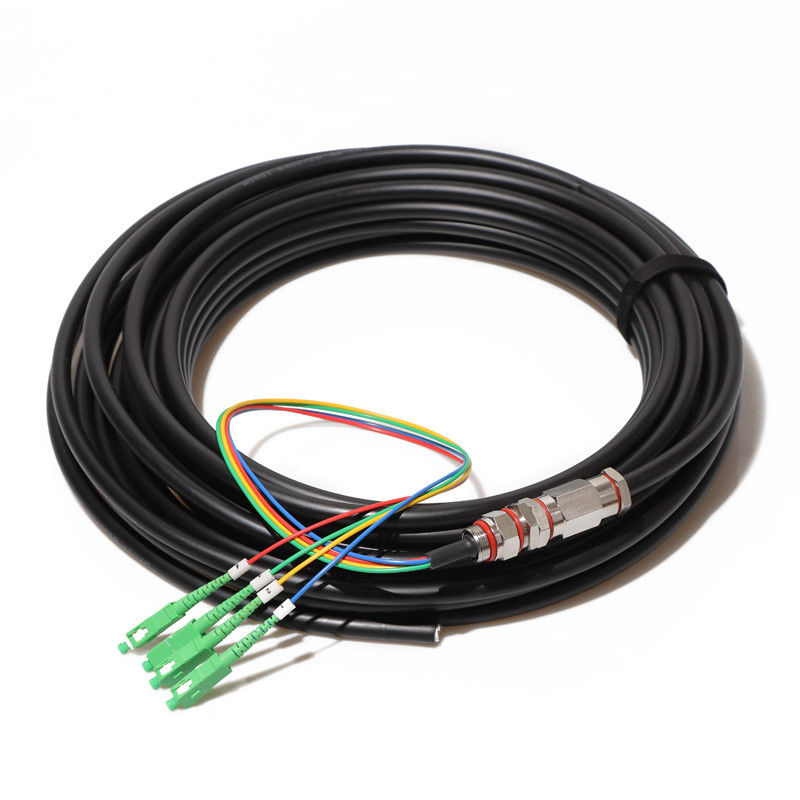

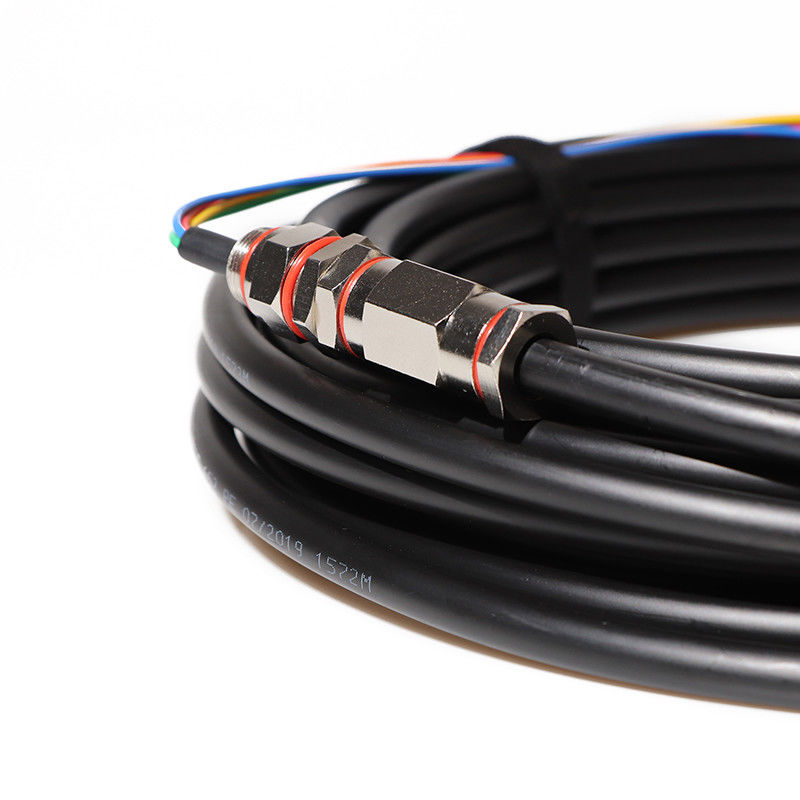

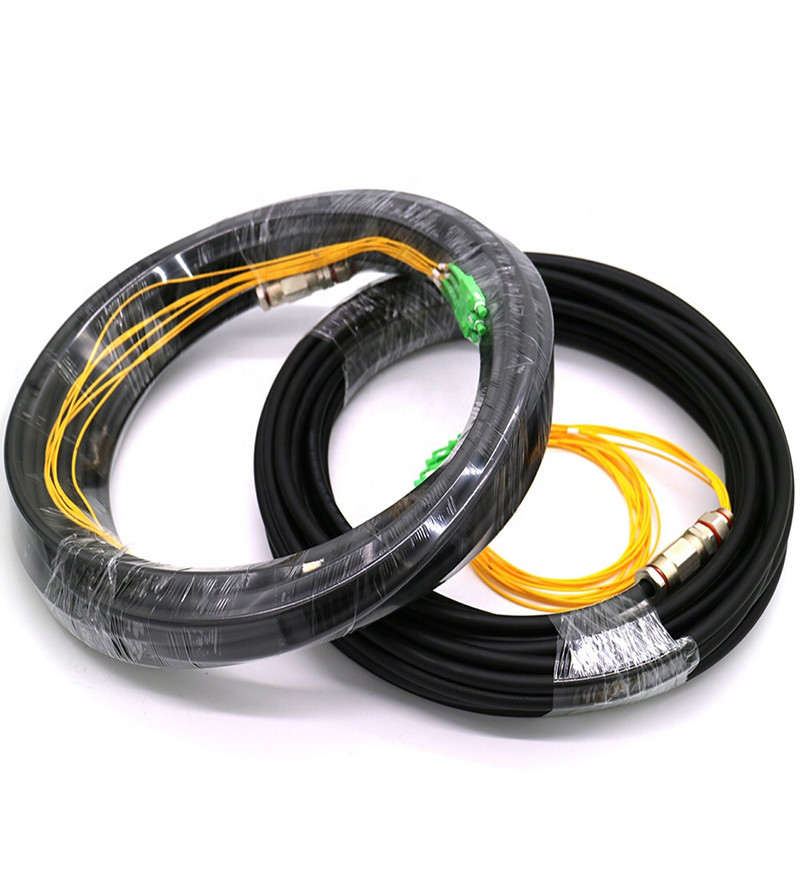

Waterproof fiber pigtails can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.
Waterproof fiber pigtails are widely used in data transmission network, typical types are with 2 fiber cores, 4 fiber cores or 8, 12 fiber cores. By adopting the special structure cables and connectors, these fiber cable assemblies are widely used in CATV and other applications.
Waterproof fiber pigtails are with strong PE jacket and waterproof sealed head connectors. Easily and reliable installment, long life, good toughness, and well done in the serious environment are their characteristics. Our waterproof fiber pigtails strictly according to IEC standards, the products feature low insertion loss, high return loss, good interchange ability and repeat push-pull performance, which make them easy to use.
Multi-purpose Outdoor.
For connection between distribution box and RRH.
Deployment in Remote Radio Head cell tower applications
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telecordia GR-326-CORE
Precise connector
Excellent mechanical capability
Patch cords accord with bellcord GR-326 ,ISO9001,ROHS
|
Type
|
SM-UPC
|
SM-APC
|
MM-UPC
|
|||
|
Typical
|
MAX
|
Typical
|
MAX
|
Typical
|
MAX
|
|
|
Insertion loss
|
≤0.2
|
≤0.3dB
|
≤0.12
|
≤0.3dB
|
≤0.2
|
≤0.3dB
|
|
Return loss
|
≥50dB
|
≥30dB
|
≥30dB
|
|||
|
Durability
|
500 mating cycles
|
|||||
|
Working temperature
|
-40 to + 85℃
|
|||||
