| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | PDLC FTTA | ||
|---|---|---|---|
| High Light: | PDLC network cable patch cord,network cable patch cord 0.3dB,multimode fiber patch cord 8F |
||

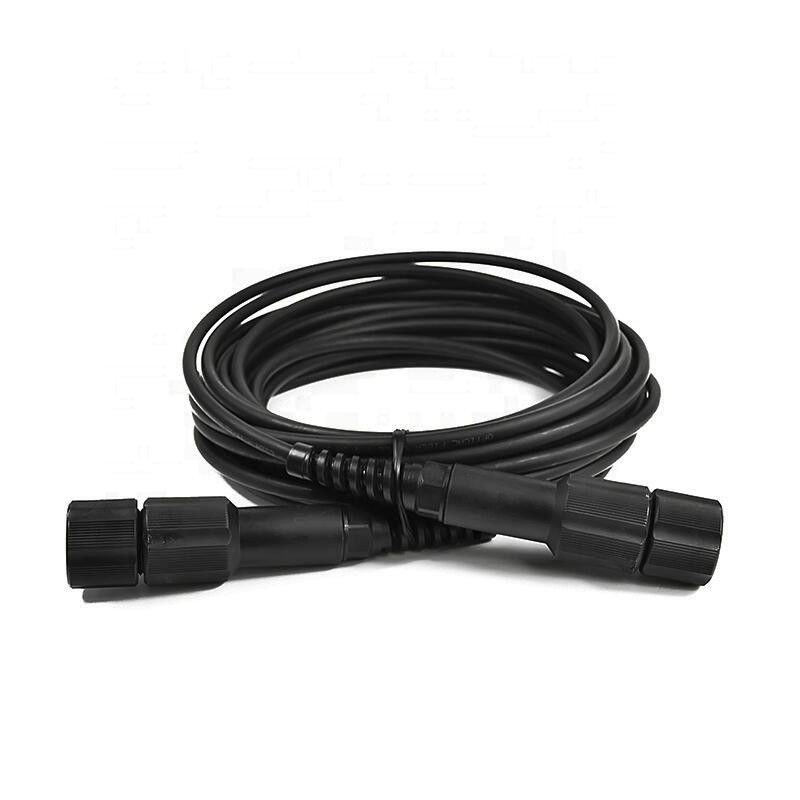

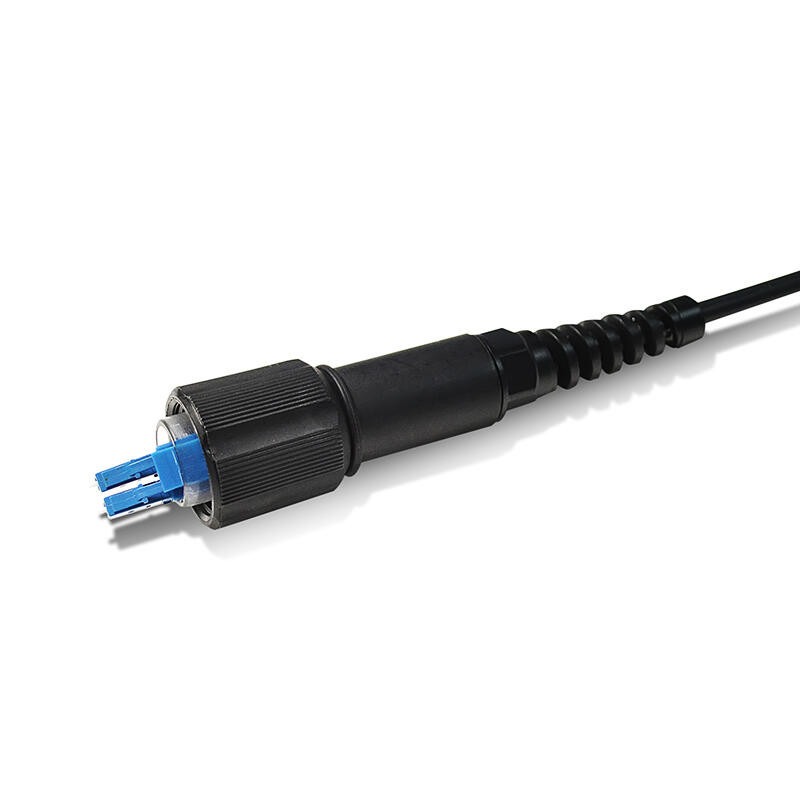

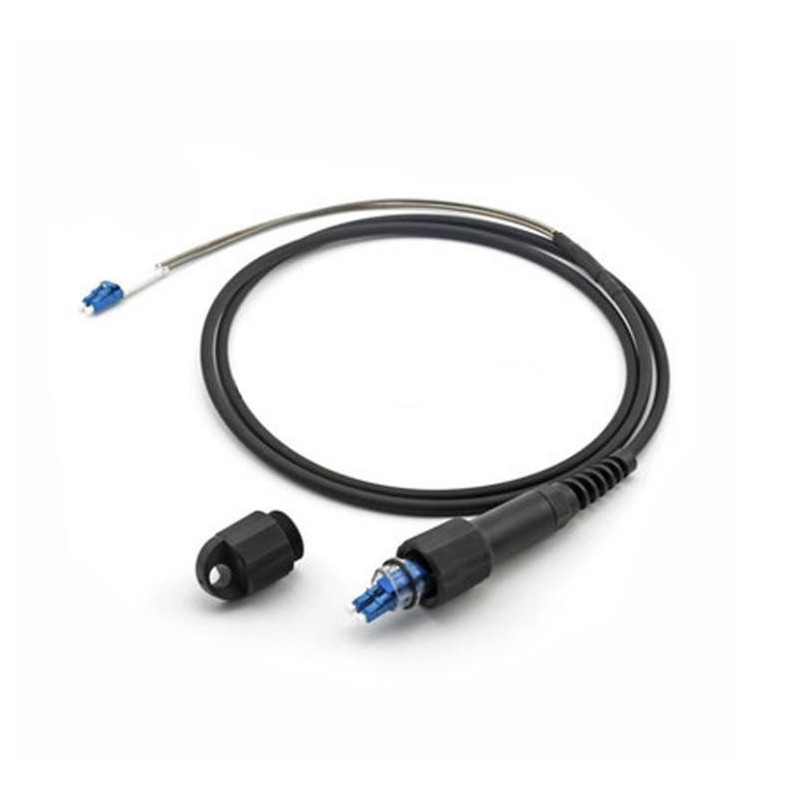

ZTE/Huawei PDLC Waterproof fiber patch cord is standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof,dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.
The PDLC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the Antenna applications.
Application
Multi-purpose Outdoor.
For connection between distribution box and RRH.
Deployment in Remote Radio Head cell tower applications.
Standard DLC connector, well connected with standard LC adaptor .
Low insertion loss and added loss.
Height of attenuation.
Flexibility with small bending radius and excellent cable routing properties.
End-face geometry and quality superior than IEC and Telcordia standards.
The material in the jumpel cable are all-weather and UV-resistant.
7 water and dust protection
Mechanical performance: IEC 61754-20 standard. 9.RoHS and REACH materials compliant.
GYFJH Cable Specifications
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 1--12 | 7 | 45 | 400 | 800 | 1000 | 2000 | 20D | 10D | --3-70℃, |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | |||||||||
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Tensile Data | Tensile between junction and fiber cable≥100N |
