| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | ODC (AARC) FTTA | ||
|---|---|---|---|
| High Light: | ODC AARC lc fc patch cord,4f lc fc patch cord 2x1.25 mm,optical patch cable RRHs 4f |
||

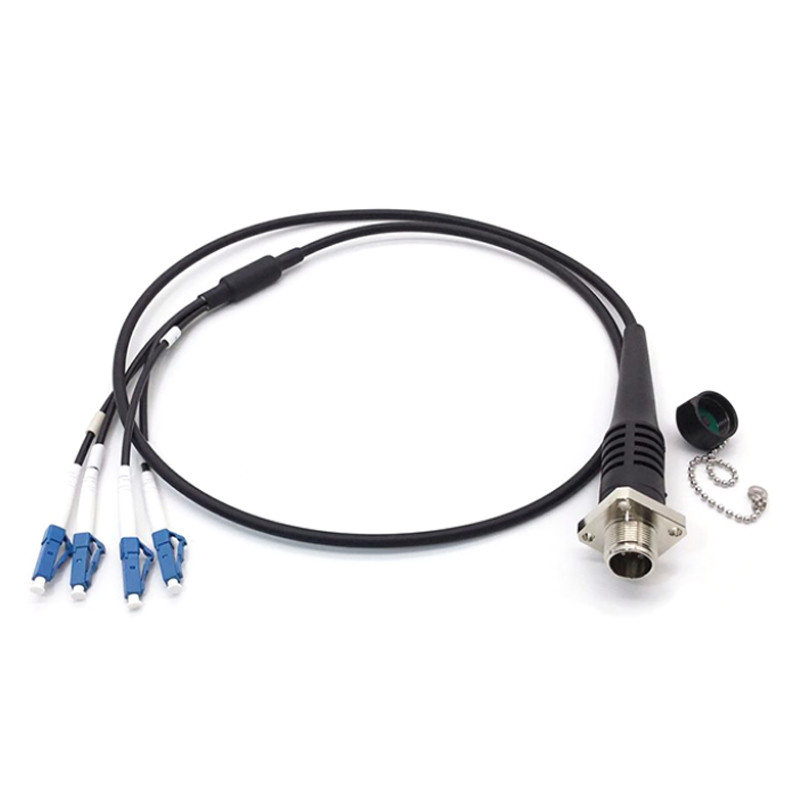

ODC Commonly used on Samsung, Ericsson and Alcatel-Lucent RRHs. This weatherproof connector attaches to socket on panel of RRH or extension jumper. This type can be used for Multi-purpose Outdoor.It can be the connection between distribution box and RRH.It screwed locking mechanism.
Multi-purpose Outdoor.
For connection between distribution box and RRH.
Deployment in Remote Radio Head cell tower applications.
2/4 fibers, singlemode or multimode
Compact design with 2 x 1.25 mm ferrules

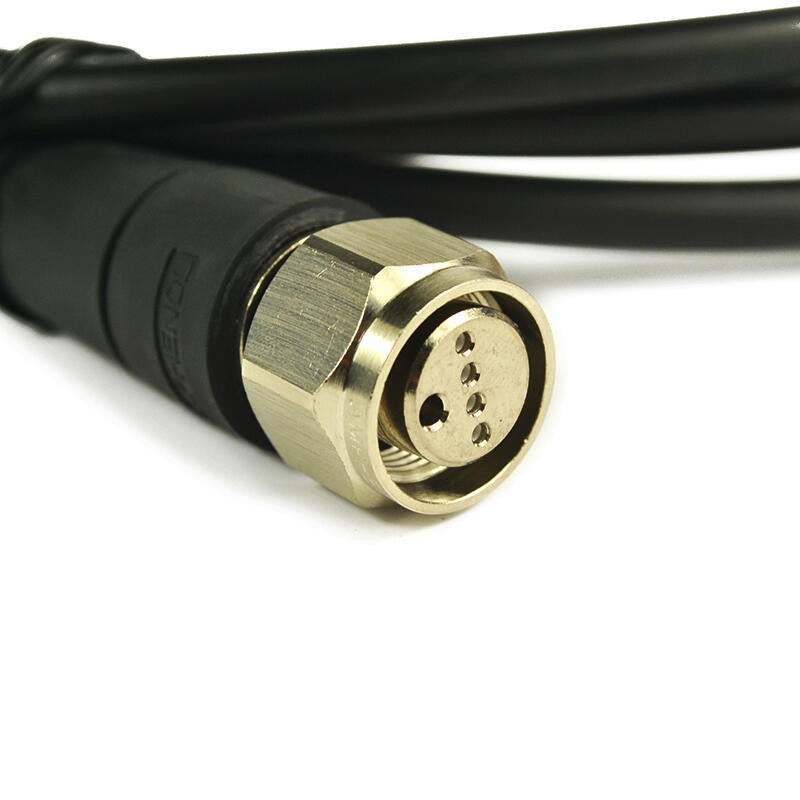

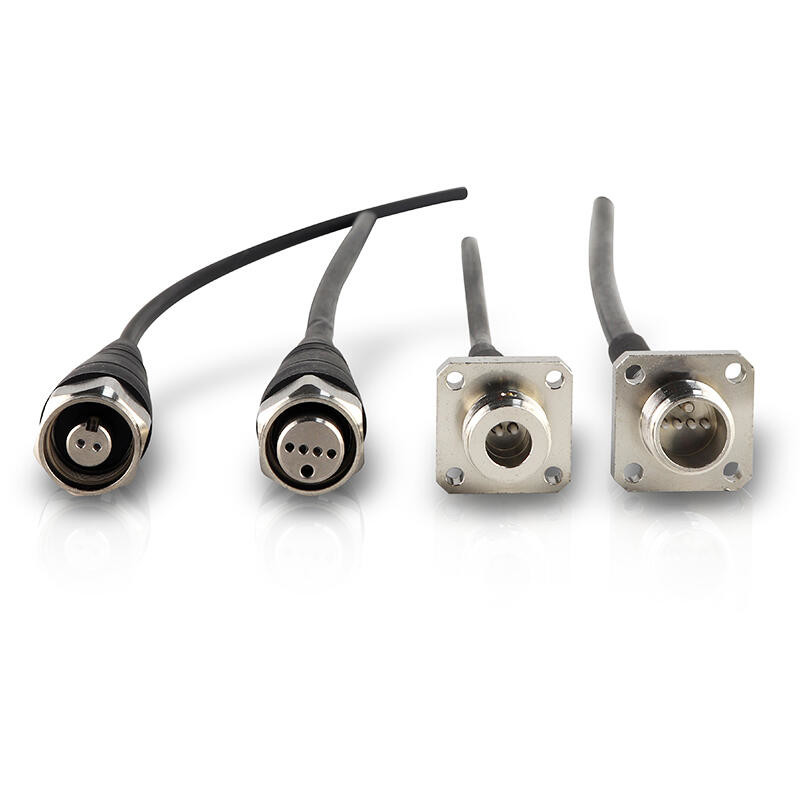

Built-in socket with square or hexagonal flange
Screwed locking mechanism
Waterproof, dust proof and corrosion resistant
Waterproof protection caps
Cable Type 1:
| Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature |
|||
| Long Term |
Short Term |
Long Term |
Short Term |
Dynamic | Static | ||||
| 1--12 | 5.0 | 25 | 350 | 700 | 1000 | 2000 | 20D | 10D | --30-70℃, |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
Cable Type 2:
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 1--12 | 7 | 45 | 400 | 800 | 1000 | 2000 | 20D | 10D | --3-70℃, |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | |||||||||
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Tensile Data | Tensile between junction and fiber cable≥100N |
