| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | NSN FTTA | ||
|---|---|---|---|
| High Light: | NSN mode conditioning patch cord,mode conditioning patch cord 5MM,armoured patch cord 12f |
||

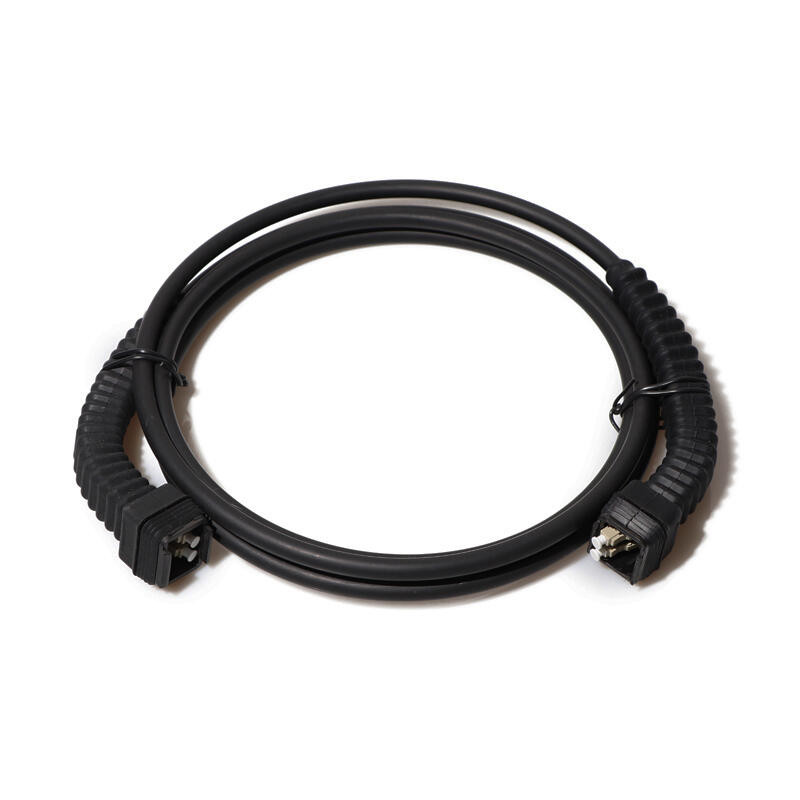

NSN fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WIMAX/GSM) tailored products that can be meet the FTTA(fiber to the anten na) program requirements for outdoor environment conditions and adverse weather conditions.They are suitable for Industrial and Aerospace and Defense applications.
Multi-purpose Outdoor.
For connection between distribution box and RRH.
Deployment in Remote Radio Head cell tower applications.
Standard DLC connector
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof
Aluminum housing, compact design
Broad temperature range and wide range of indoor and outdoor Patch cables
Easy Operation, reliable and cost-effective Installation

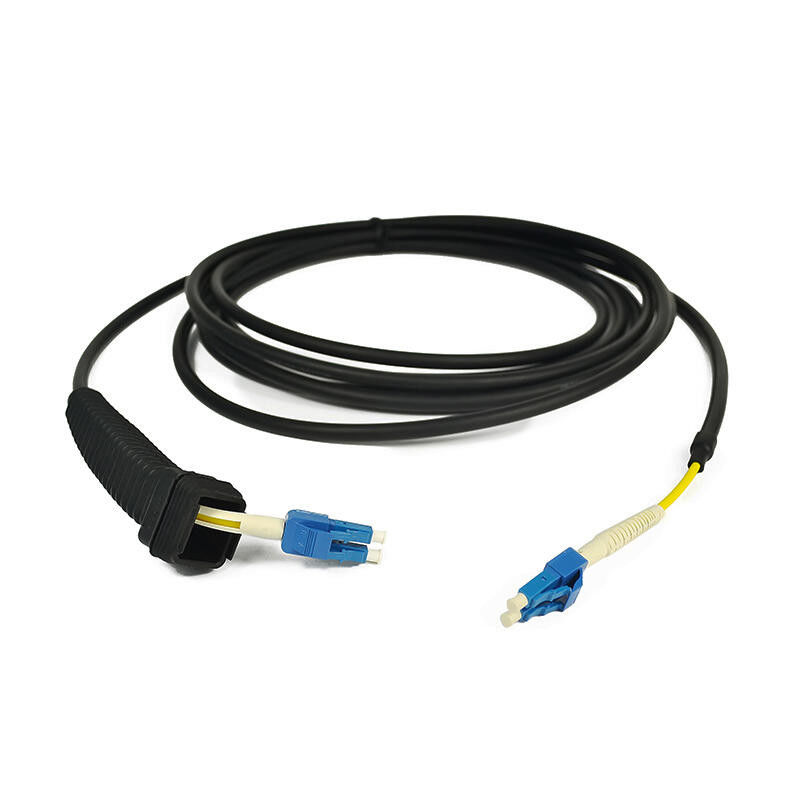

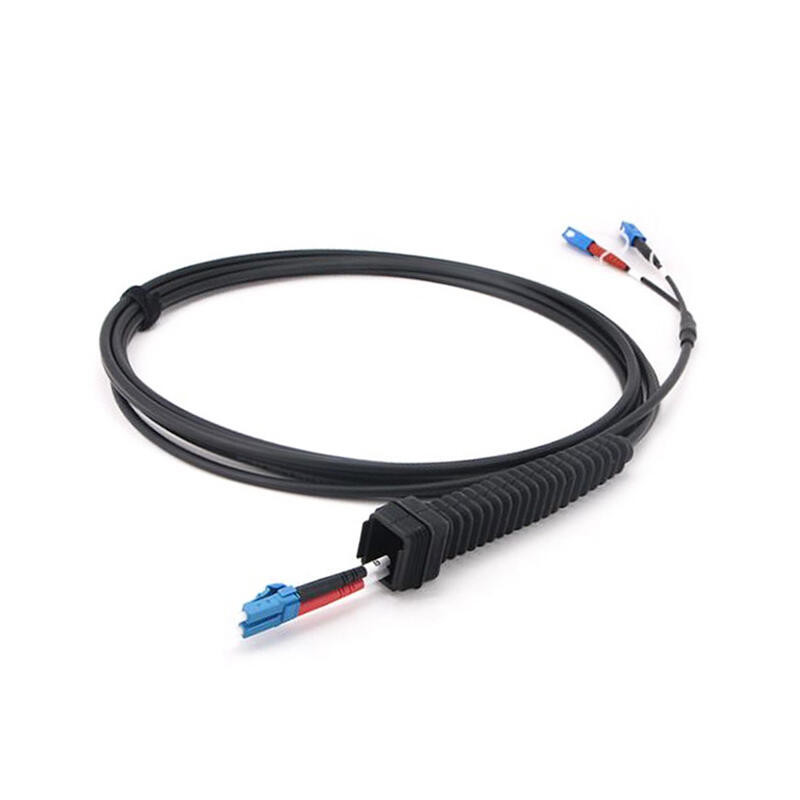

The connector of side A is DLC, and side-B can be LC,FC,SC
Used for 4G 5G base station BBU, RRU, RRH, LTE
Cable Type 1:
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 1--12 | 5 | 25 | 350 | 700 | 1000 | 2000 | 20D | 10D | --30-70℃, |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | |||||||||
Cable Type 2:
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 1--12 | 7 | 45 | 400 | 800 | 1000 | 2000 | 20D | 10D | --3-70℃, |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | |||||||||
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Tensile Data | Tensile between junction and fiber cable≥100N |
