| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | Fullaxs FTTA | ||
|---|---|---|---|
| High Light: | Fullaxs Type Outdoor Patch Cord,FTTA Outdoor Patch Cord FTTA,sc to sc patch cord IP67 |
||

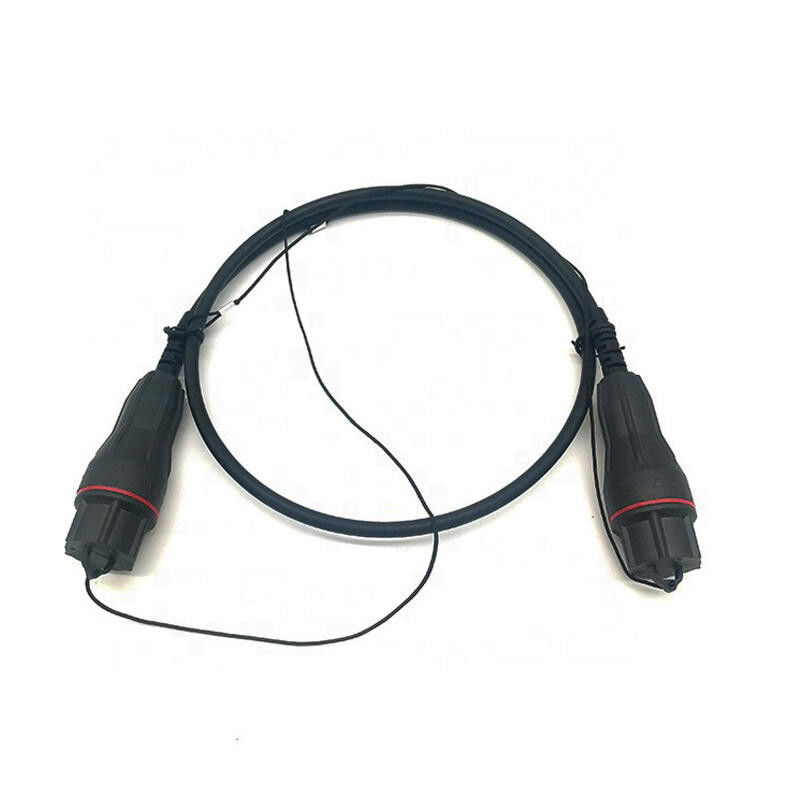

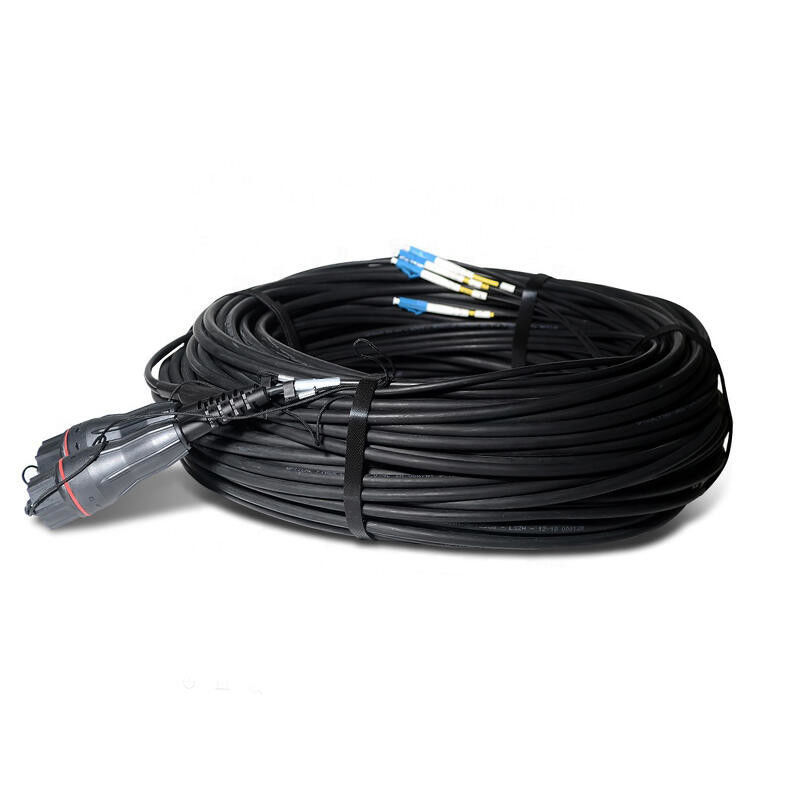

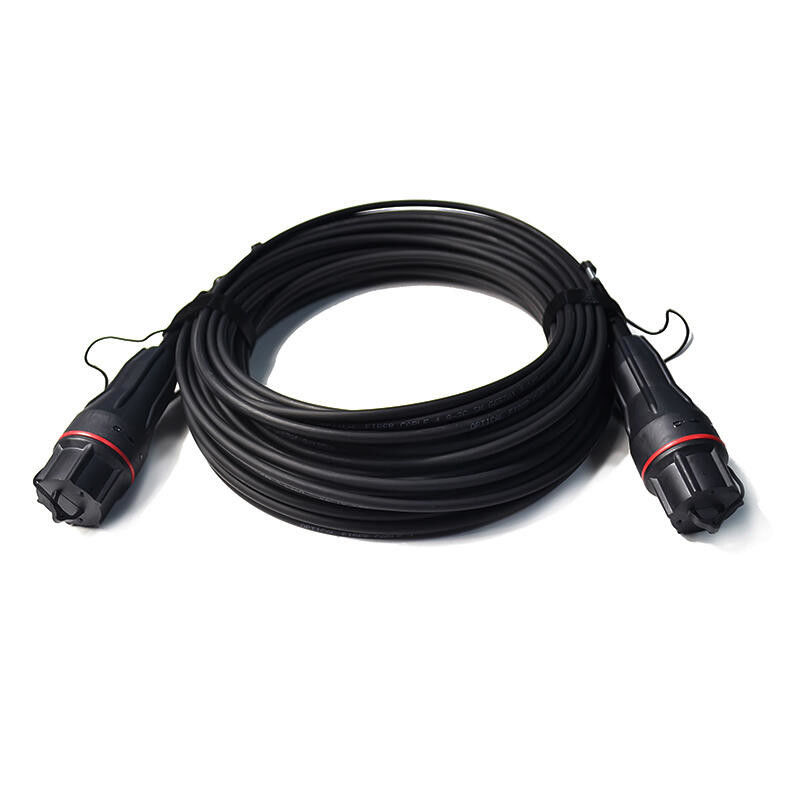

Fullaxs Type FTTA Outdoor Patch Cord
Multi-purpose Outdoor.
For connection between distribution box and RRH.
Deployment in Remote Radio Head cell tower applications.
Cost effective solution for in house termination
IP67 water and dust protection
Wide range of operational temperature for outside plant -40 to +85°C
Different cable diameter can be available
Intermatable to other Industrial LC adaptor per IEC 61076-3-106
No need special tools for assembly
Cable Type 1:
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 1--12 | 5 | 25 | 350 | 700 | 1000 | 2000 | 20D | 10D | --30-70℃, |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | |||||||||
Cable Type 2:
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 1--12 | 7 | 45 | 400 | 800 | 1000 | 2000 | 20D | 10D | --3-70℃, |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; | |||||||||
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Tensile Data | Tensile between junction and fiber cable≥100N |
