| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | FTTA Breakout Fanout Patchcords | Insertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB | Mechanical Life: | 500cycles |
| Working Temperature: | -20°C~+70°C | Storage Temperature: | -20°C~+70°C |
| High Light: | 144 Cores Fiber Optic Patch Cable,Fanout Fiber Optic Patch Cable |
||

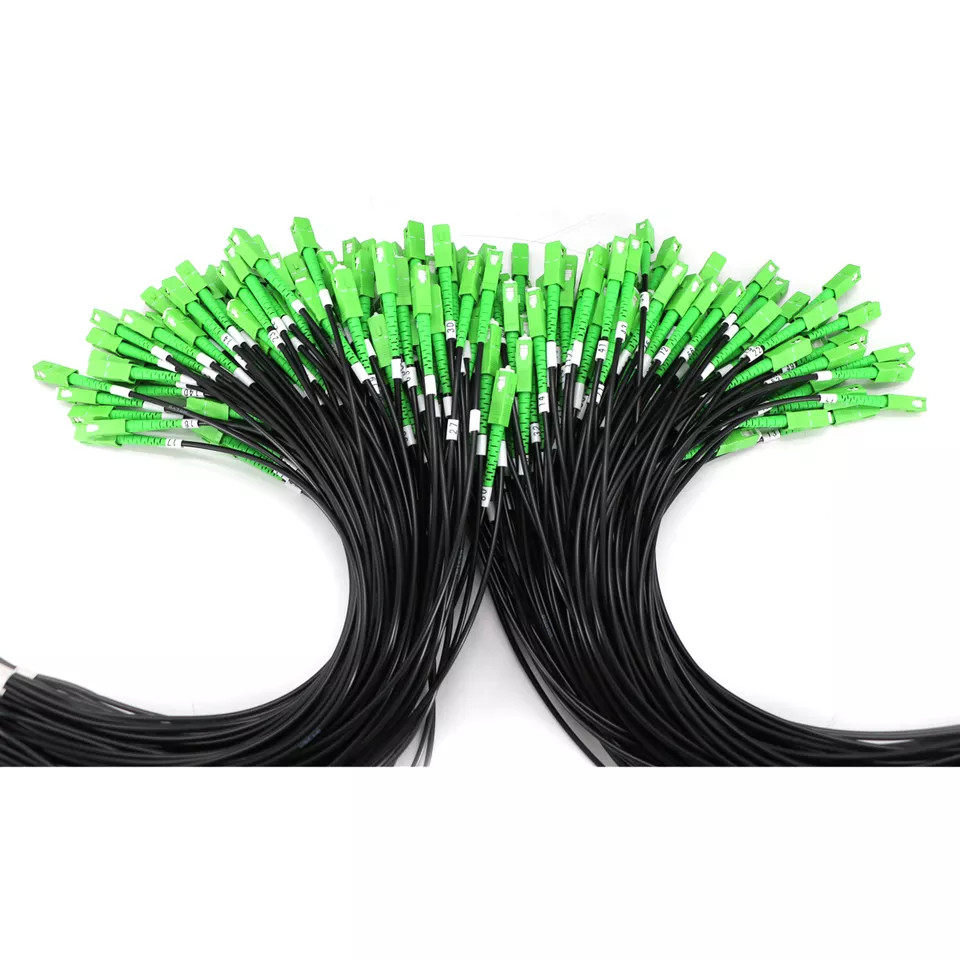

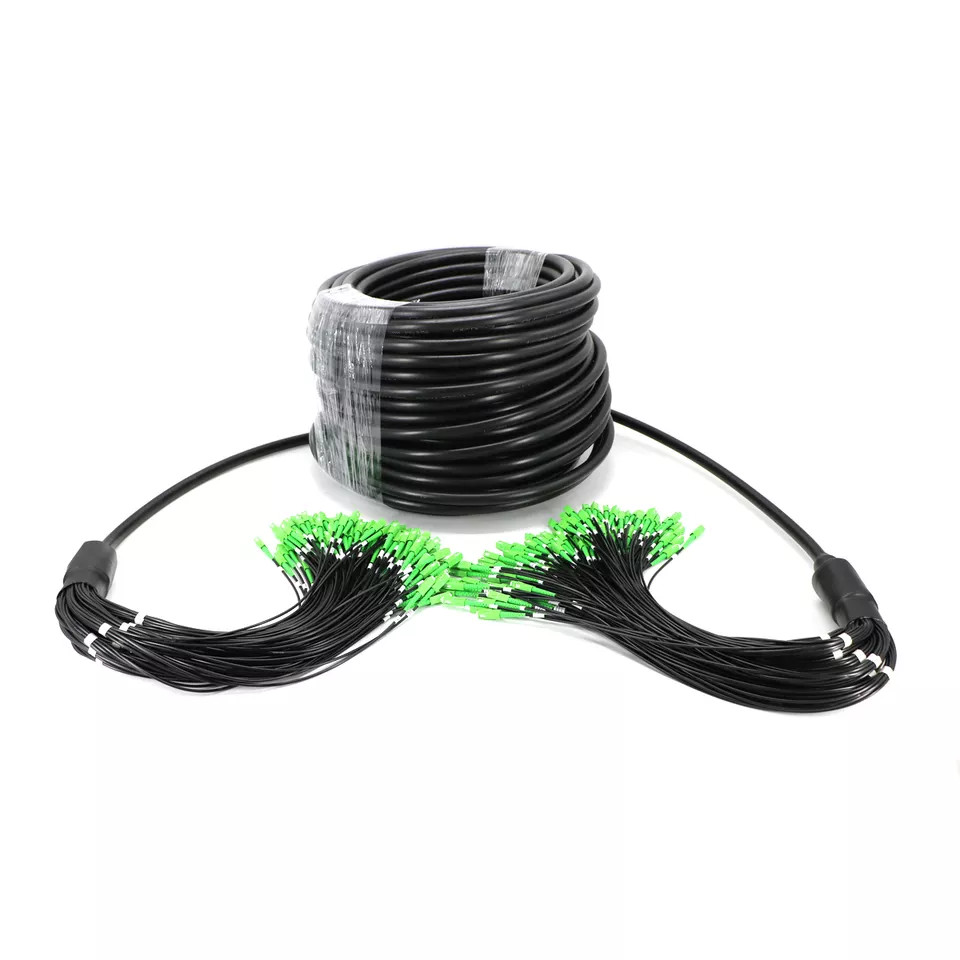

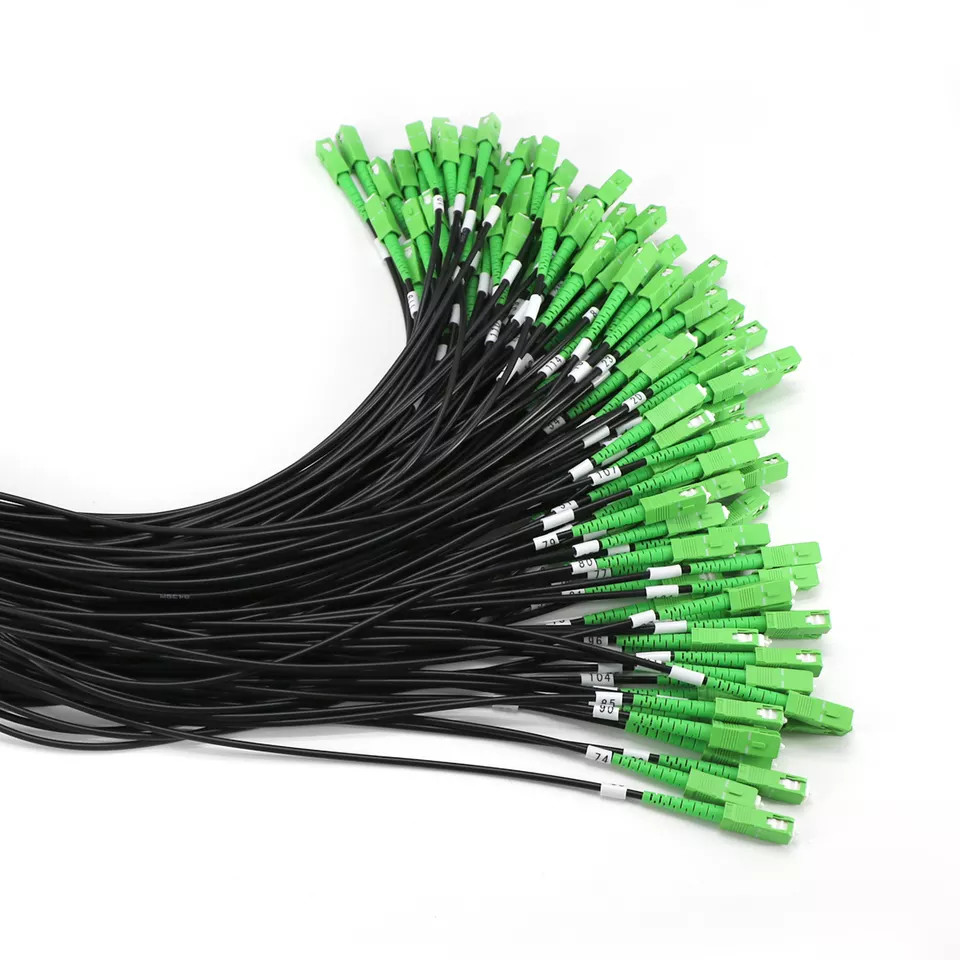

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.
Features
General purpose and standard stock items
Lightweight
Pliable
Non-stretch
High pulling load strength
Resists lateral pressure
Excellent bending characteristics
| Fiber Count | Tight Diameter mm | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100m | Bending Radius Static/Dynamic mm |
| 1 | 0.6/0.9 | 2 | 11 | 300/750 | 200/1000 | 20D/10D |
| 1 | 0.6/0.9 | 3 | 15 | 300/750 | 200/1000 | 20D/10D |
| 2 | 0.6/0.9 | 3 | 15 | 300/750 | 200/1000 | 20D/10D |
| 2 | 0.6/0.9 | 2.0*4.0 | 30 | 300/750 | 200/1000 | 20D/10D |
| 2 | 0.6/0.9 | 3.0*6.0 | 40 | 300/750 | 200/1000 | 20D/10D |
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Tensile Data | Tensile between junction and fiber cable≥100N |
