| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | GJFDBV | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Country Of Origin: | GUA,CN | ||
| High Light: | Ribbon Indoor Optical Fiber Cable 125μm,Indoor Optical Fiber Cable GJFDBV,6 core fiber optic cable 3db |
||
Flat Optical Fiber Ribbon Indoor Optical Fiber Cable
Description

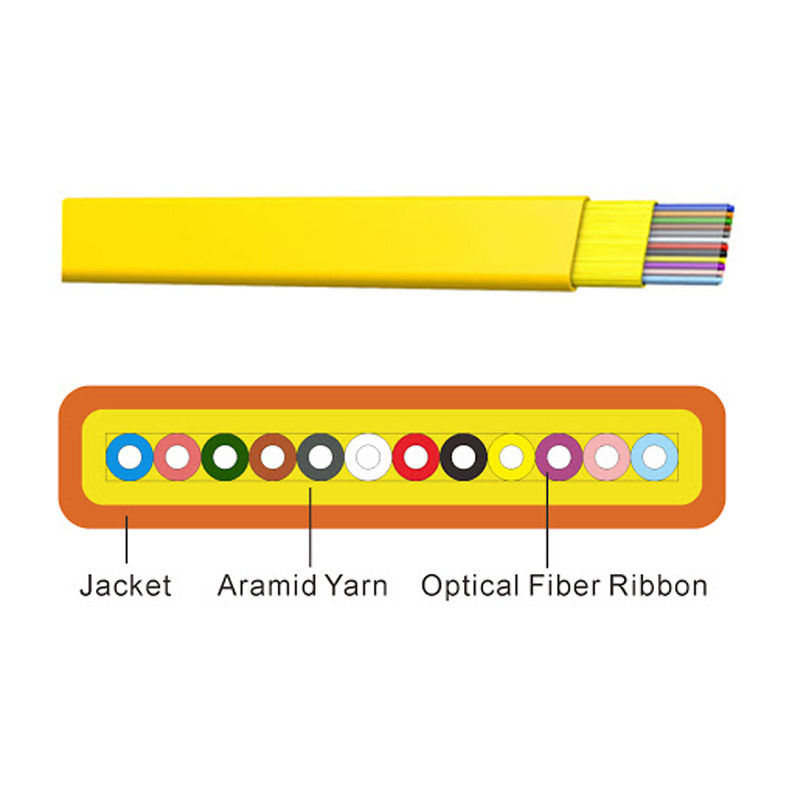

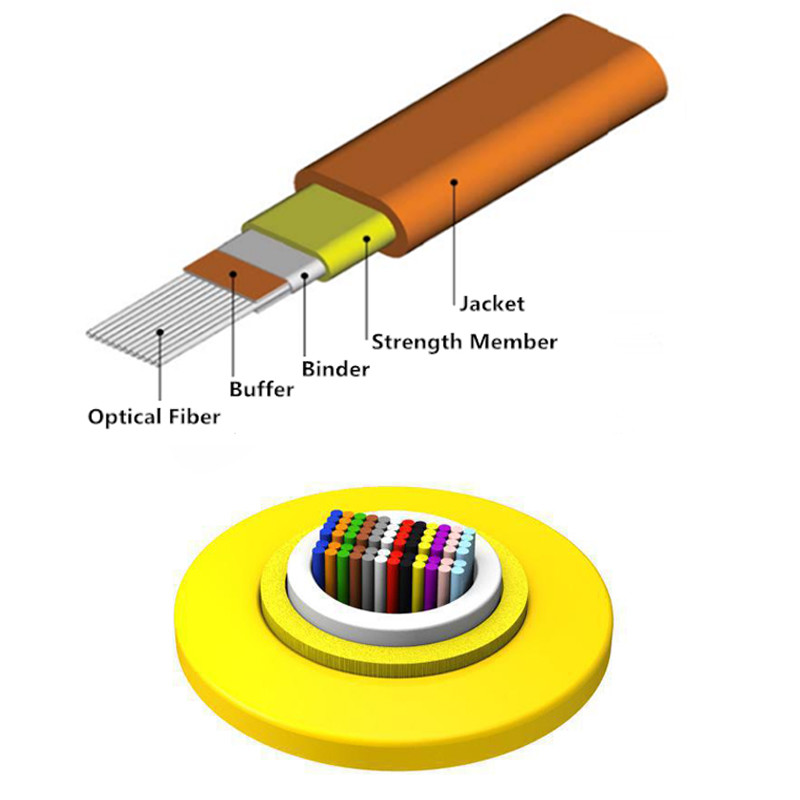

The flat fibre ribbon cable uses fibre ribbon as optical transmission medium, covered with aramid yarn as strength member, then extruded with a PVC sheath. Other sheath materials, like LSZH and TPU, are available on request.
Featuers
Optical Charactics
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
Cable Specification

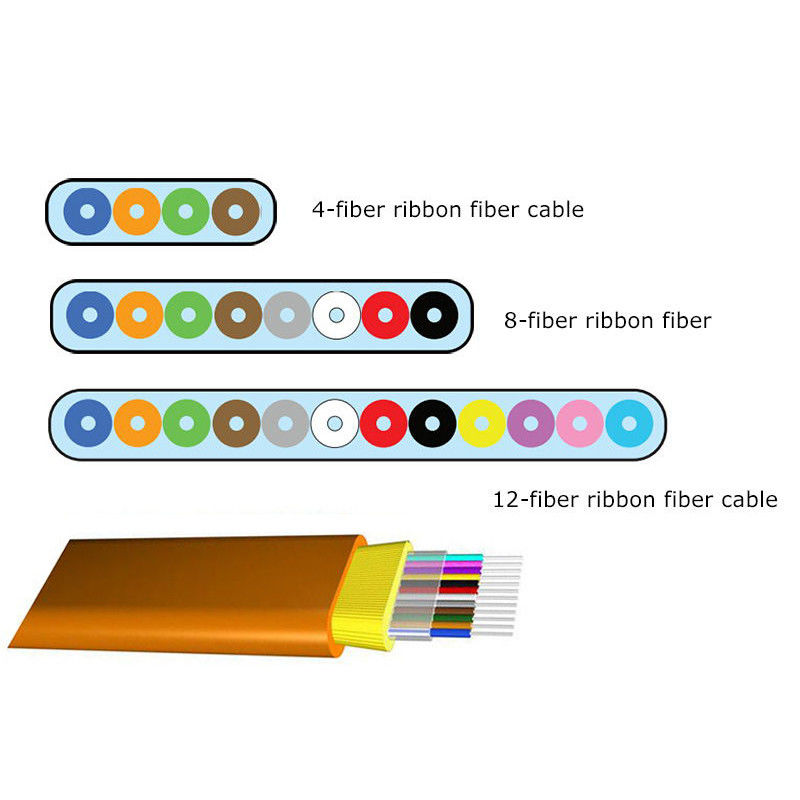

| Fiber count | 4 | 6 | 8 | 12 |
| Cable diameter (mm) | 3.7x2.5 | 4.2x2.5 | 4.7x2.5 | 5.2x2.5 |
| Cable weight (kg/km) | 4.7 | 5.1 | 5.5 | 5.9 |
| Temperature rating | 0 ~+60℃ | |||
| Operation storage | -5~+60℃ | |||
