| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | GJFJV | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Country Of Origin: | GUA,CN | ||
| High Light: | 3.0mm indoor fiber optic cable types,indoor fiber optic cable types GJFV,composite fiber optic cable GJFH MPO |
||

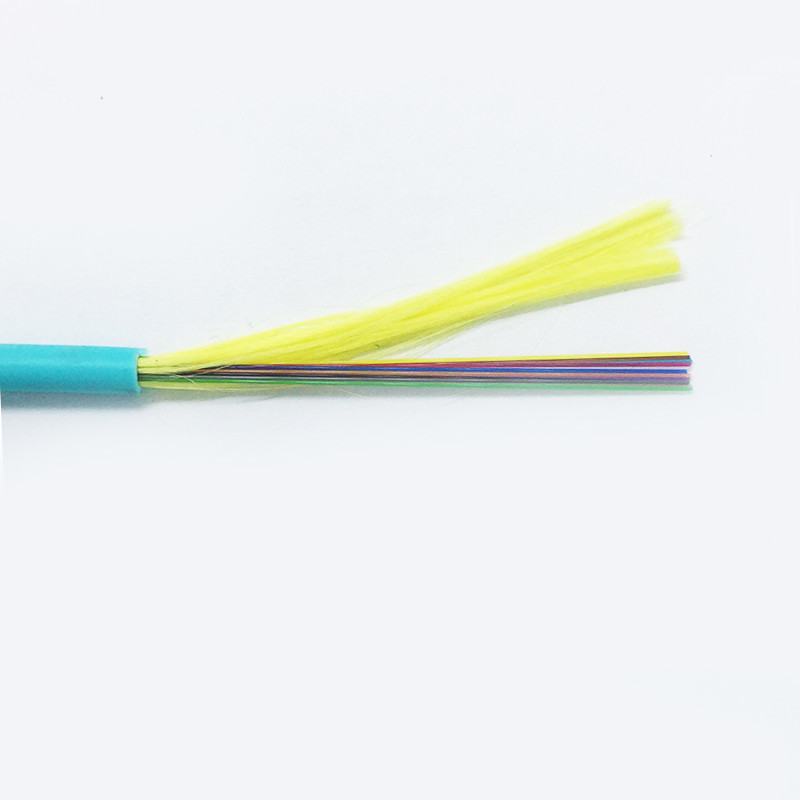

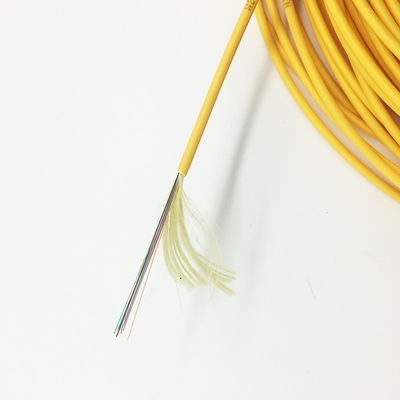

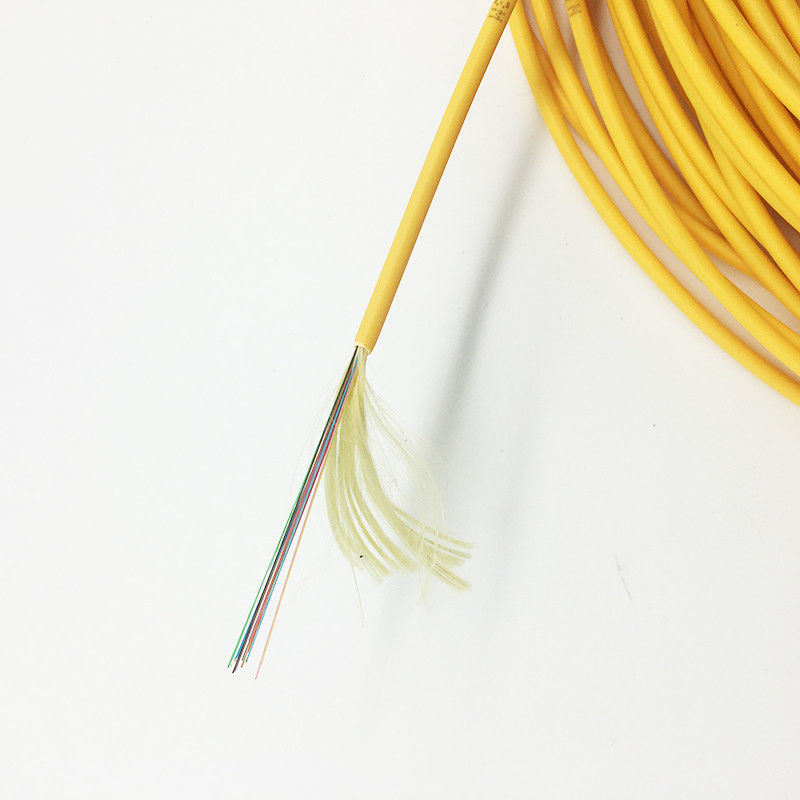

3.0mm Multi-core Indoor Micro Cable GJFV GJFH for MPO Use
Description
Indoor Mini cable are used for LAN connections, patch cords, MTP/MPO, pigtails and internal point-to-point links(data cabinets, equipment rooms, wall outlets and computers).
with 250um fibre, the cable is suitable for industry standard connectors and can be easily made into assemblies for MTP/MPO patch cords.
they can also be supplied in PVC (OFNR & OFNP) or LSZH jackets,
Features
Optical Characteristics
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||

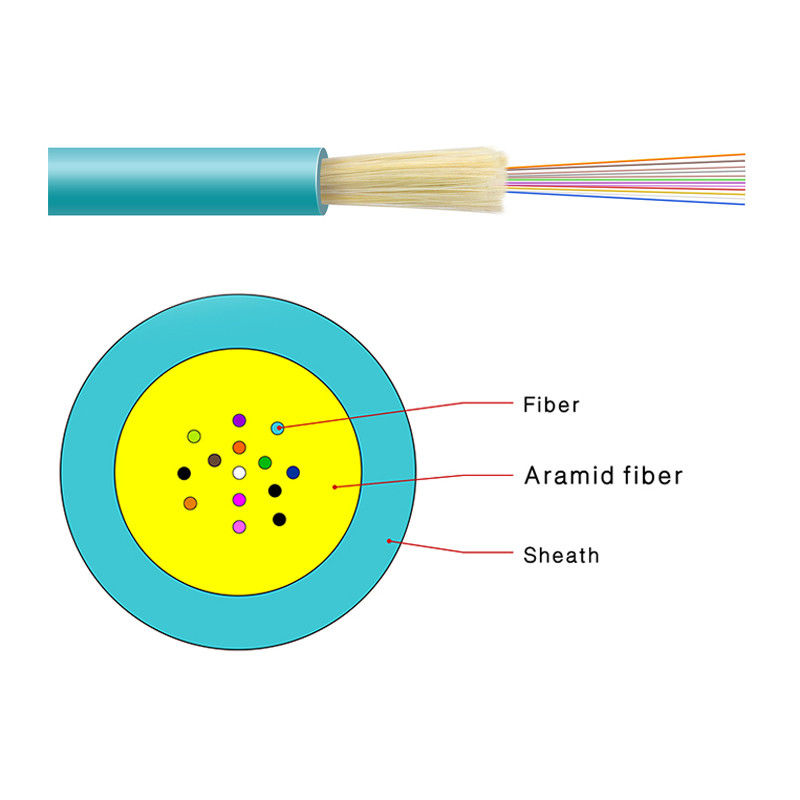

Cable Specification
| Items | Specifications | |
| Fiber Count | 4f-24f | |
| Dimension | 250±15μm | |
| Color Coated Fiber | Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua |
| Outer Jacket | Dimension | 3.0±0.2mm |
| Material | PVC, LSZH, OFNP, OFNR | |
| Color | SM: Yellow, MM: Orange, OM3: Aqua, OM4: Purple, OM5: Green | |
| Cable Weight | 9 kg/km | |
