| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | Indoor Breakout Cable | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Country Of Origin: | GUA,CN | ||
| High Light: | 900um fiber optic audio cable,6 core fiber optic audio cable 8F 9.4MM,6 core fiber optic cable puller |
||

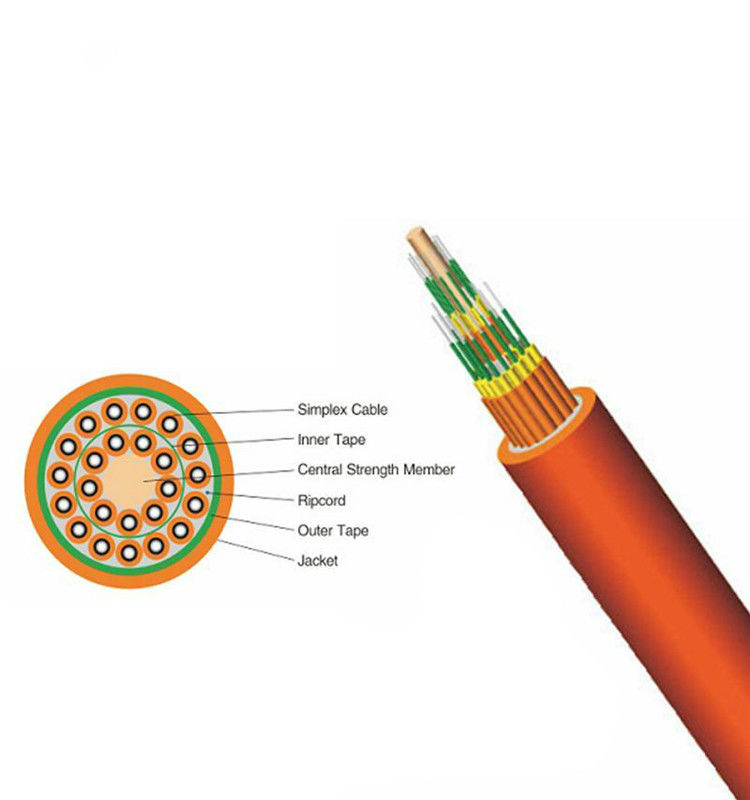

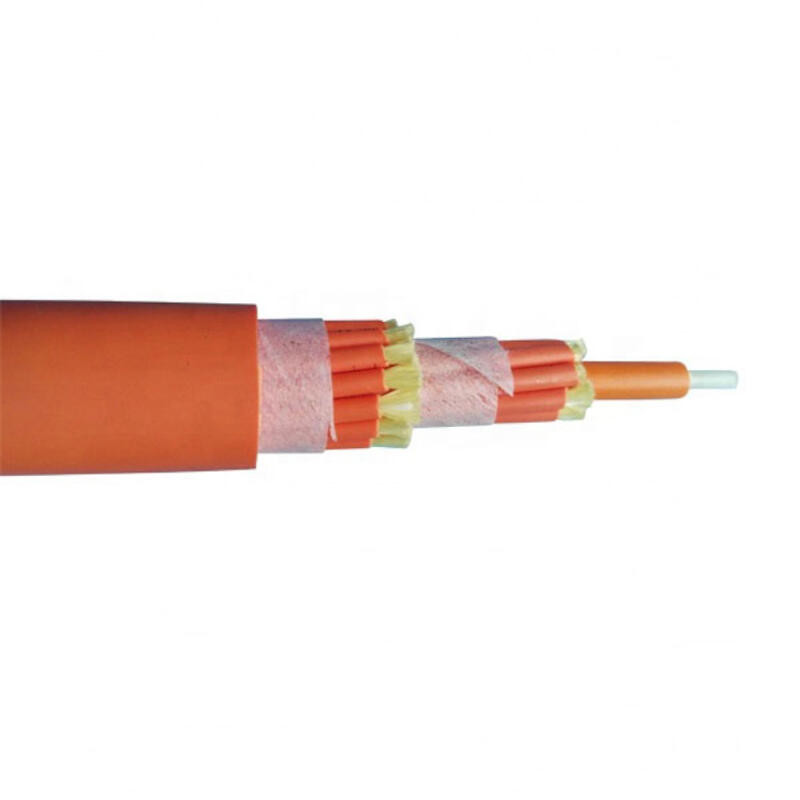

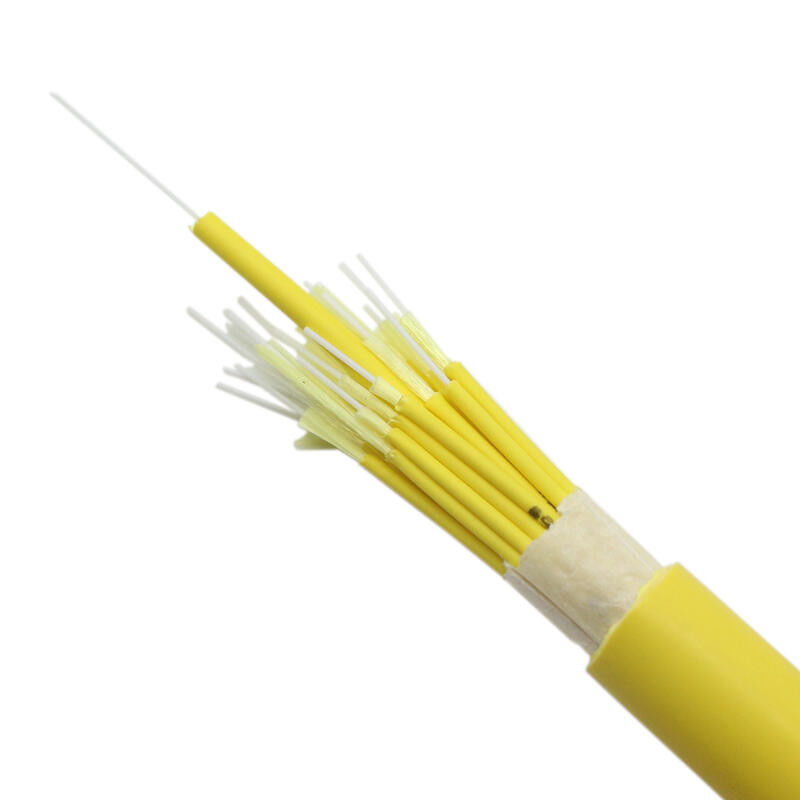

Indoor Breakout cable
Description
The robust construction of Breakout Fiber Cables make them ideal for demanding environments, including conduits, junction boxes, patch panels and the factory floor. They offer all the ease of a 900 µm tight buffered termination with only one fiber per sub-unit. To support rugged applications, the connector and cable's aramid yarns are bonded together to provide unmatched strength and durability.
Applications
Performance
Specifications
| Fibre Number | Unit Count | Fibre in Unit | OD (mm) | Cable Weight (kg/km) | Min. Bend Radius | Max. Tension (N) | ||
| Static | Dynamic | Short terms | Long terms | |||||
| 36 | 6 | 6 | 25.6 | 495 | 10D | 20D | 1600 | 600 |
| 48 | 8 | 6 | 30 | 845 | ||||
| 64 | 8 | 8 | 34.5 | 876 | 2000 | 700 | ||
| 72 | 6 | 12 | 38 | 1100 | 2000 | 800 | ||
