| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | Indoor Duplex Zipcord | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Country Of Origin: | GUA,CN | ||
| High Light: | Indoor Optical Fiber Cable LSZH,Indoor Optical Fiber Cable 600μm,multimode duplex fiber optic cable rohs |
||

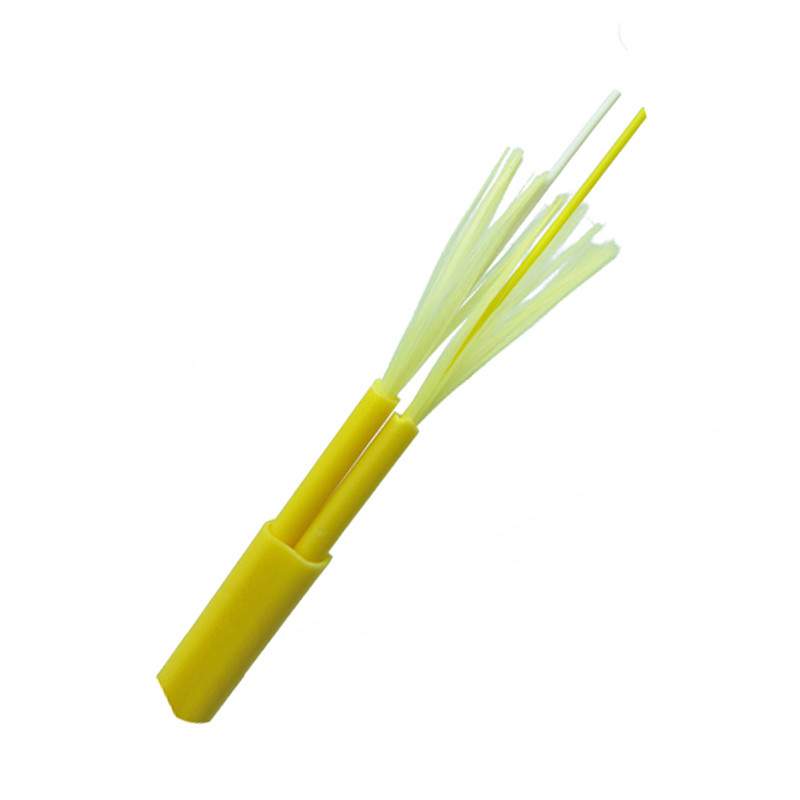

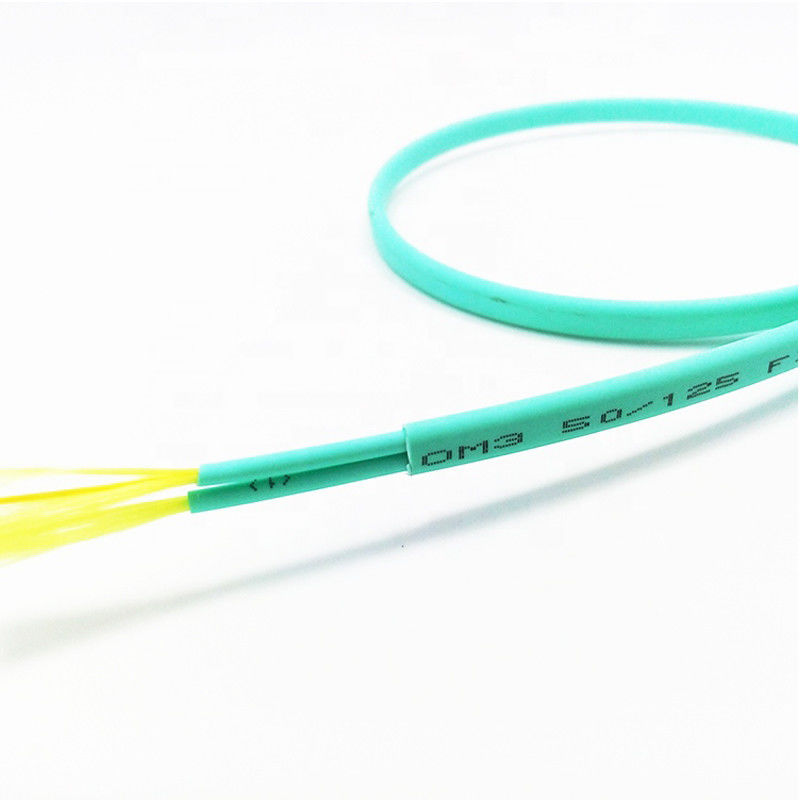

Fiber Optic Flat Twin Duplex Indoor Cable
Description

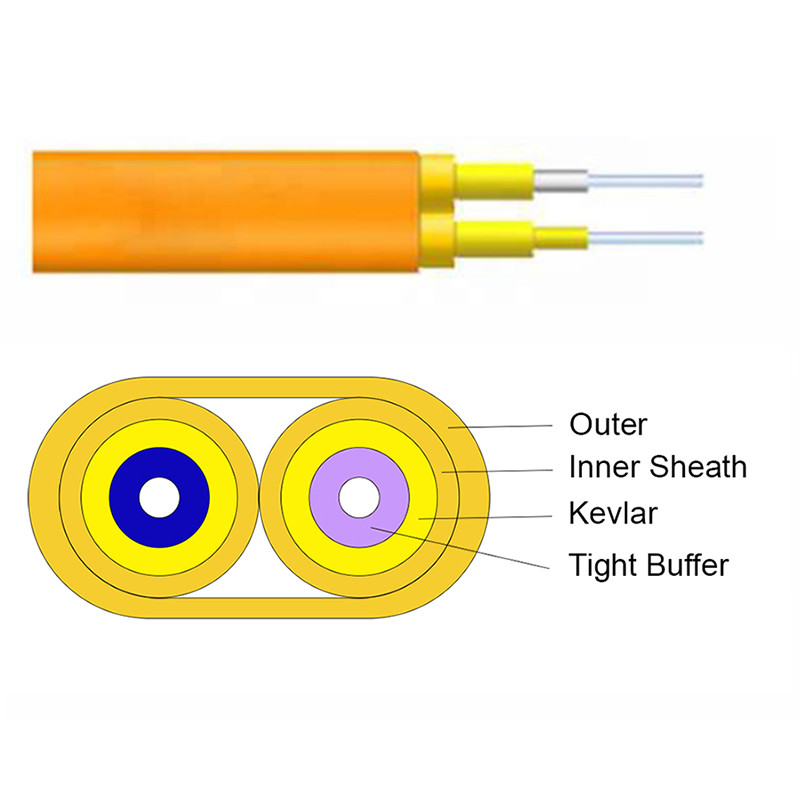

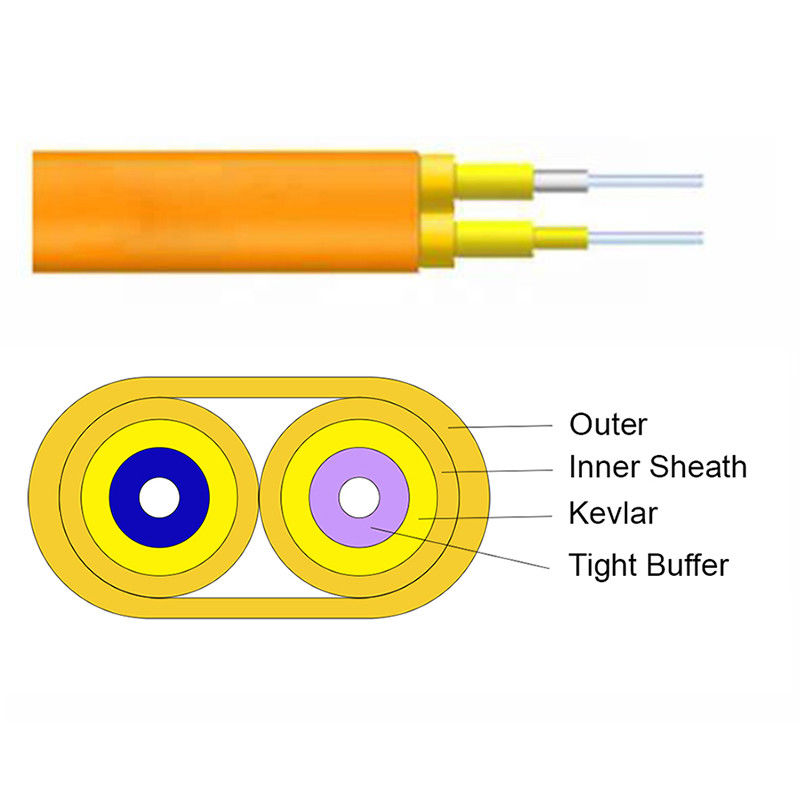

Flat Twin Duplex Indoor Cable use 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket. Then the cable is completed with a layer of flat PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket as out sheath .
Features
Application
Temperature Characteristics:
Specification
| Out sheath Diameter | Inner sheath Diameter | Weight | Min allowable Tensile Strength (N) | Min. allowable Crush Load(N/100mm) | Min. Bending Radius (MM) | |||||
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | ||
| 3.0×5.0 | 1.8 | 18.5 | 300 | 150 | 500 | 300 | 20D | 10D | ||
| 3.0×5.0 | 2 | 18.5 | 300 | 150 | 500 | 300 | 20D | 10D | ||
| 4.0×7.0 | 2.8 | 28.5 | 300 | 150 | 500 | 300 | 20D | 10D | ||
