| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | Duplex Zipcord Armored Cable | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Country Of Origin: | GUA,CN | ||
| High Light: | GJSFJV single mode fiber optic cable,single mode fiber optic cable G655,distribution fiber optic cable Duplex Zipcord |
||

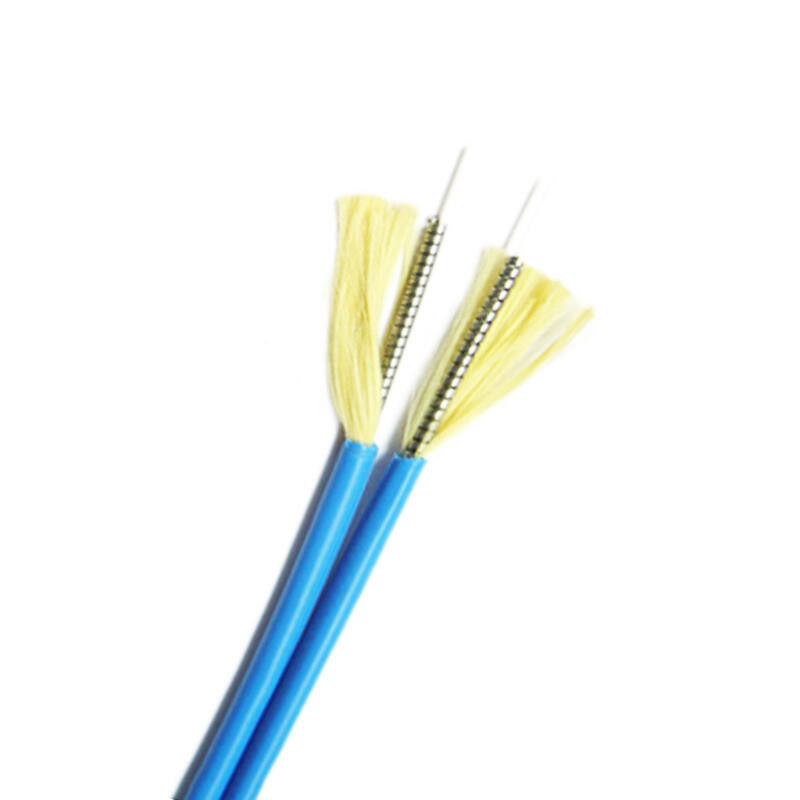

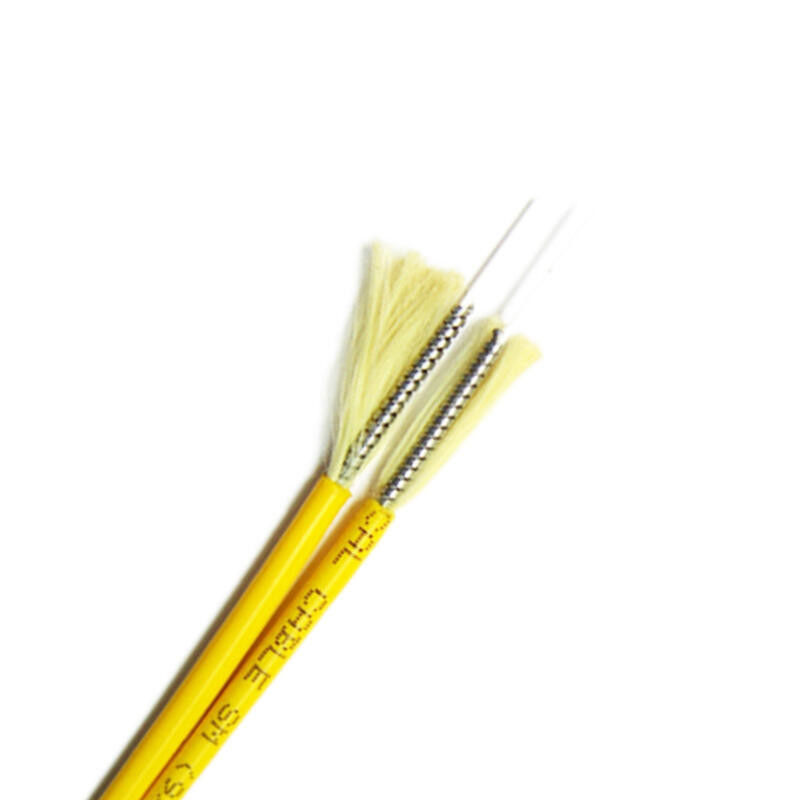

GJSFJV Indoor Duplex Zipcord Flat Twin Fiber Optic Armored Cable
Description

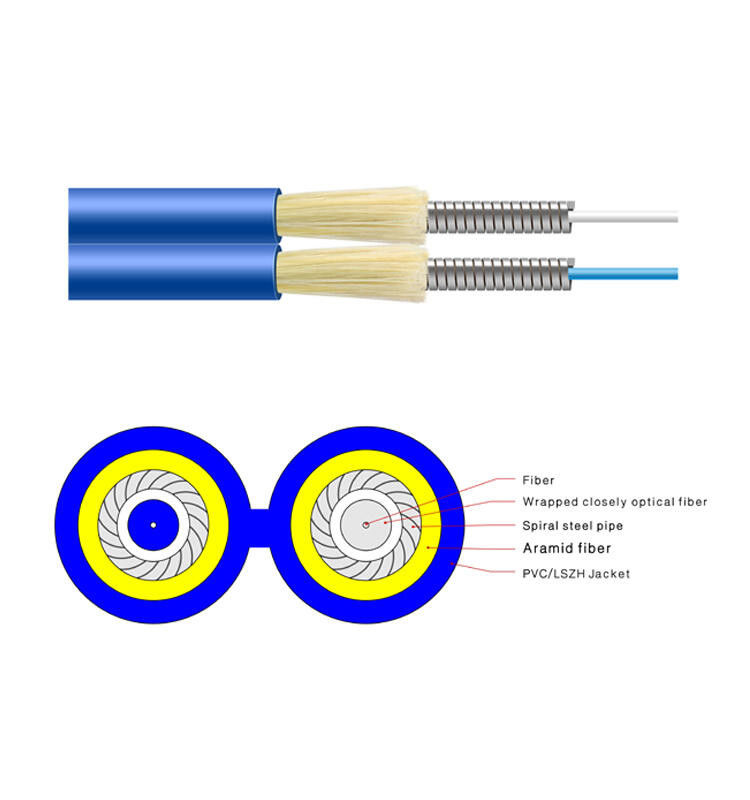

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into figure 8 shape fiber optic cable with PVC or LSZH sheath
Features
Application
Optical Specification
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| (+20℃) | @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth | @850 | ≥500MHZ·km | ≥200MHZ·km | ||
| (Class A) | @1300 | ≥1000MHZ·km | ≥600MHZ·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
Cable Specification
| Fiber Count | Tight Diameter mm | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100m | Bending Radius Static/Dynamic mm |
| 2 | 0.6/0.9 | 2.0*4.0 | 30 | 300/750 | 200/1000 | 20D/10D |
| 2 | 0.6/0.9 | 3.0*6.0 | 40 | 300/750 | 200/1000 | 20D/10D |
