| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | Indoor Simplex | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Country Of Origin: | GUA,CN | Minimum Static Bending Radius: | 10H |
| High Light: | Indoor Optical Fiber Cable 1.6x3.3 mm,GJFJV Indoor Optical Fiber Cable,multimode fiber optic cable 900μm |
||

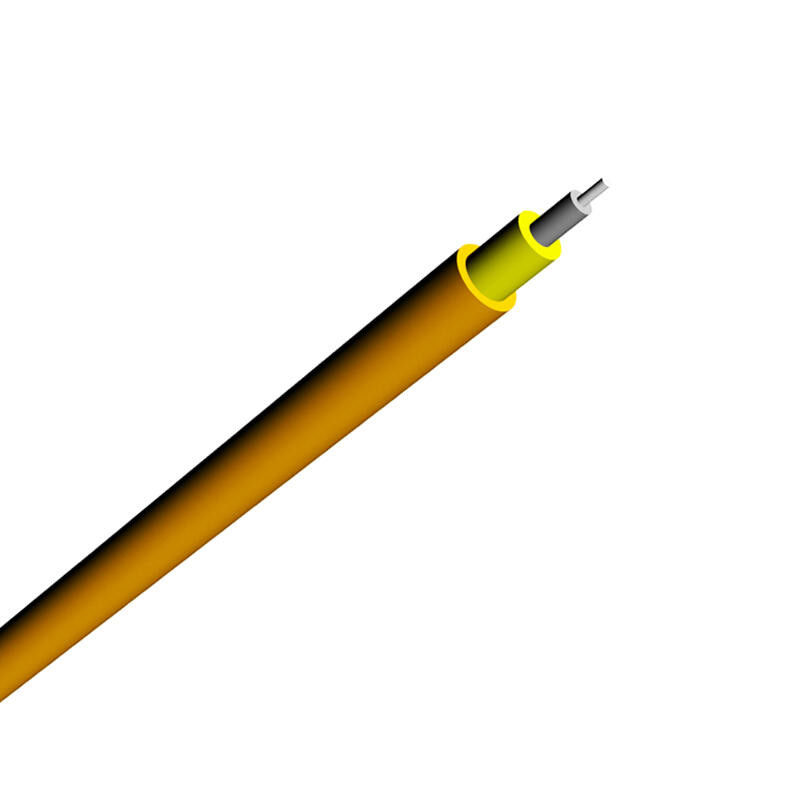

Indoor Simplex Cable
Description

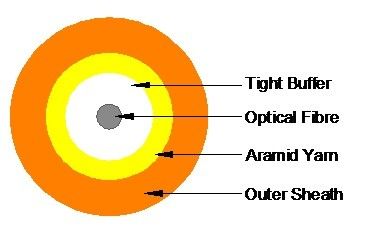

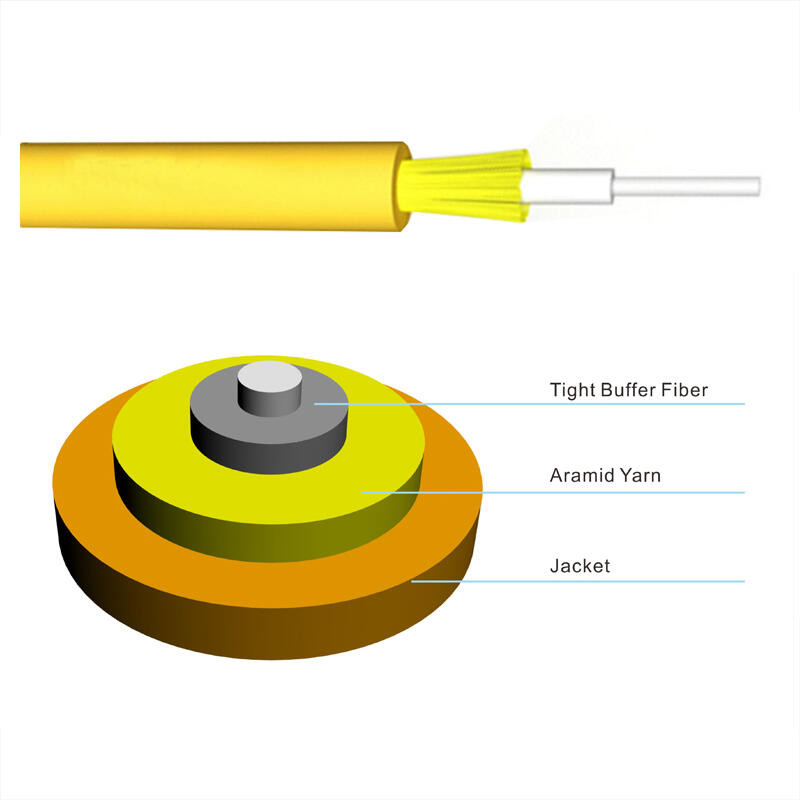

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket. We use high strength aramid yarn which has a longer lifeHave a longer life. The Operate temperature range of zipcord cable is -20oC to +60oC.
Fibre optic simplex offers one-way data transfer. It’s a good choice for an application such as an interstate trucking scale that sends weight readings back to a monitoring station. Another example is an oil line monitor that sends data about oil flow back to a central location
Features
Temperature Characteristics
1.Operate temperature range: -20oC to +60oC .
2.Storage temperature range: -20oC to +60oC .
Specifications
| Outer Diameter (mm) | 1.6x3.3 | 1.8x3.7 | 2.0x4.1 | 2.8*5.7 |
| Normal Weight (kg/km) | 5.7 | 6.7 | 8.2 | 13.2 |
| Long term tensile strength (N) | 80 | 80 | 100 | 160 |
| Short term tensile strength (N) | 160 | 160 | 200 | 300 |
| Minimum Static bending radius | 10H | |||
| Minimum Dynamic bending radius | 20H | |||
| Long term crush resistance (N) | 500 | |||
| Short term crush resistance (N) | 100 | |||
