| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | GJJV | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Country Of Origin: | GUA,CN | ||
| High Light: | GJJV tight buffered fiber,tight buffered fiber G652,G652 pre connectorized fiber optic cable 2F |
||

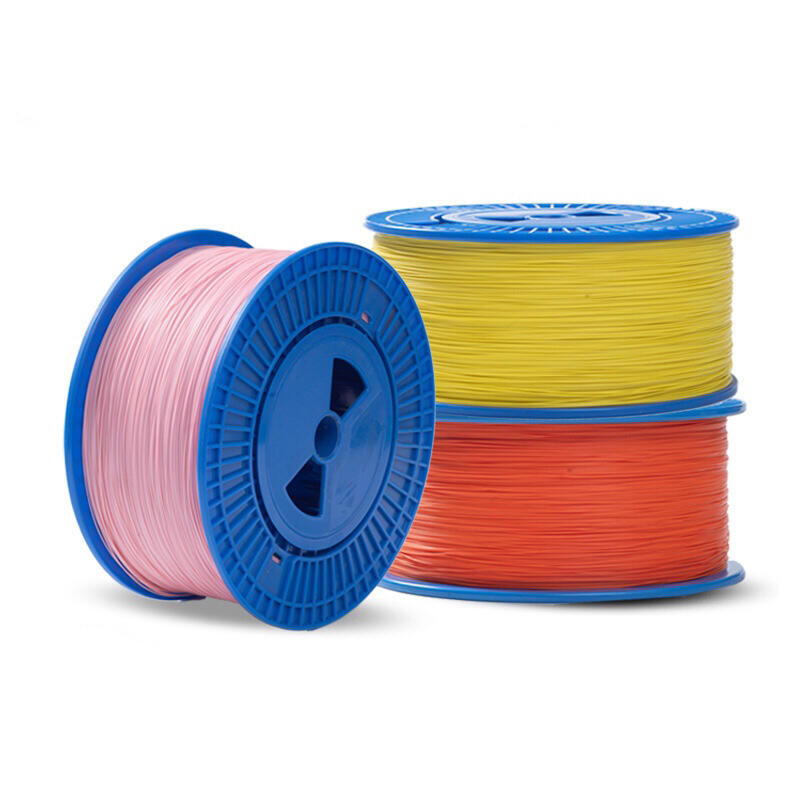

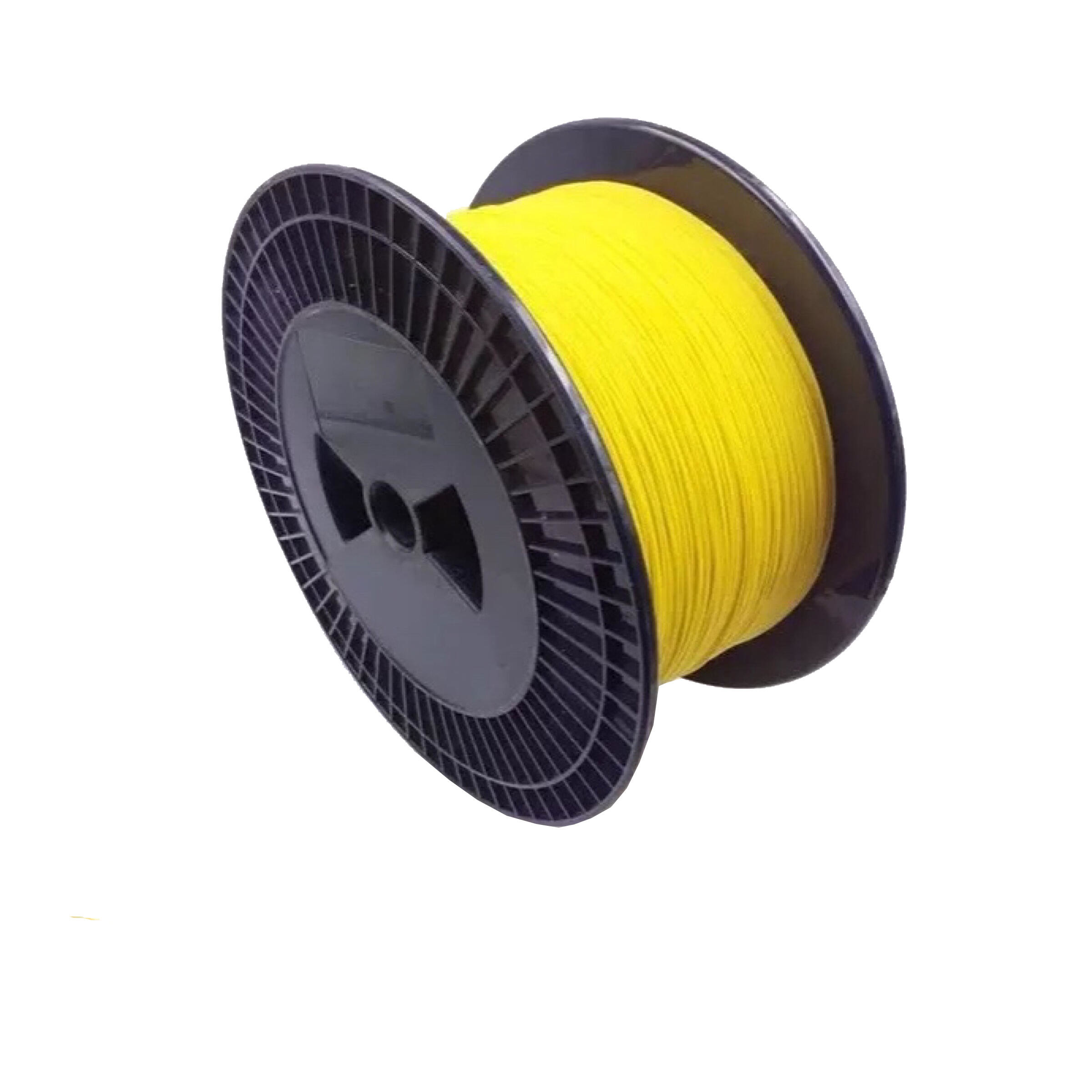

GJJV tight buffer Fiber
Description

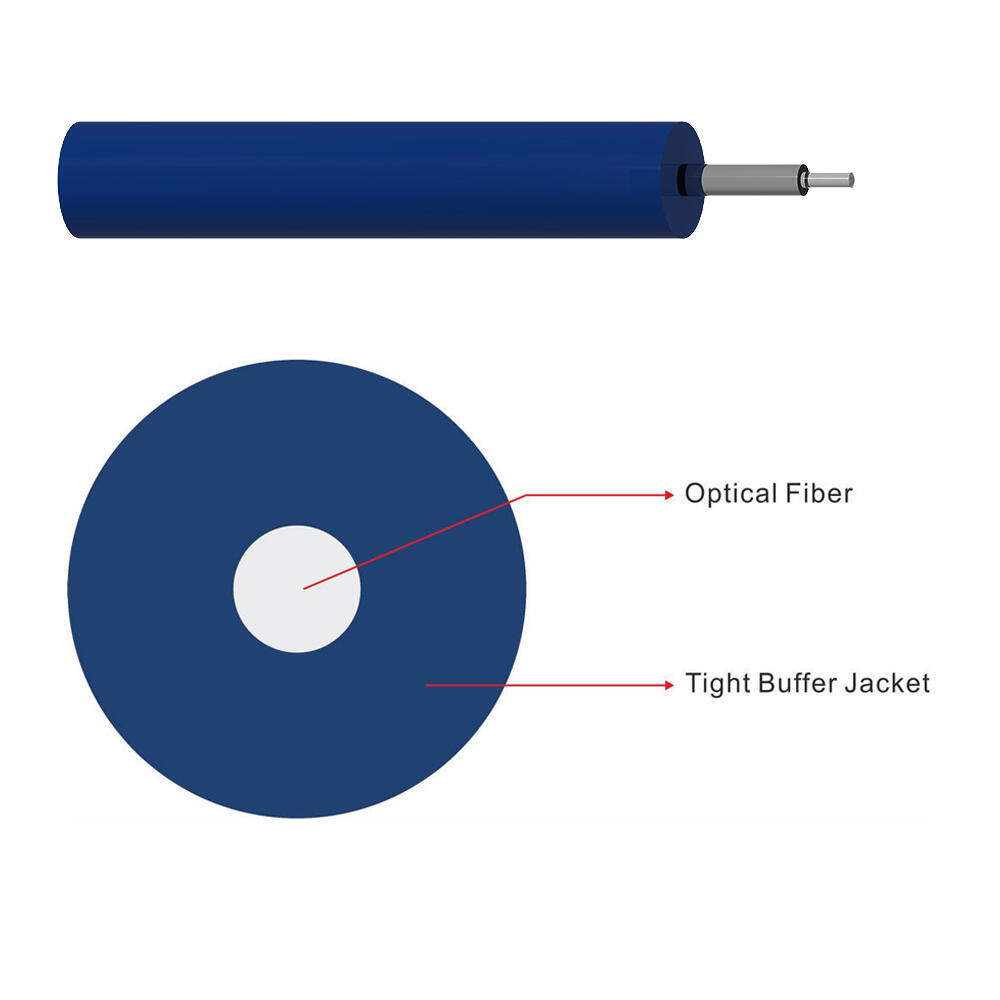

Tight Buffer Fiber is sheathed by buffer material. The selection of top-quality fiber, the specific production equipment and the accurately designed are benificial to improve the performance of product.
Features
Application
Optical Specifications
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| (+20℃) | @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth | @850 | ≥500MHZ·km | ≥200MHZ·km | ||
| (Class A) | @1300 | ≥1000MHZ·km | ≥600MHZ·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
