| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 14.30-14.80 / pieces |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | MPO | Delivery: | FOB |
|---|---|---|---|
| Minimum Order Quantity: | 10 Pieces | Country Of Origin: | Shenzhen |
| High Light: | 12f sc fiber patch panel,24f sc fiber patch panel,fibre optic distribution box LGX Cassette |
||

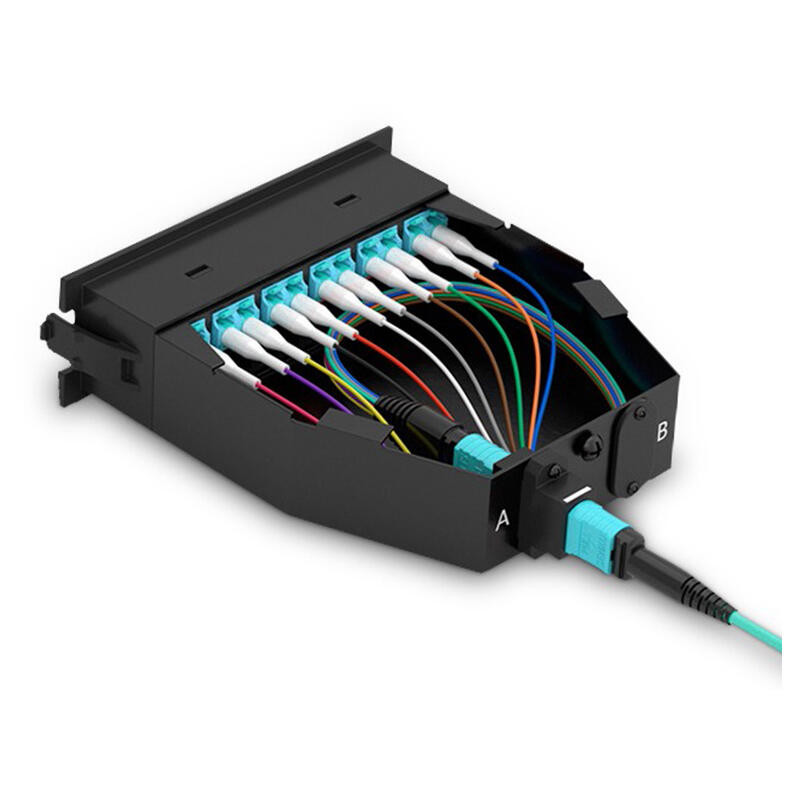

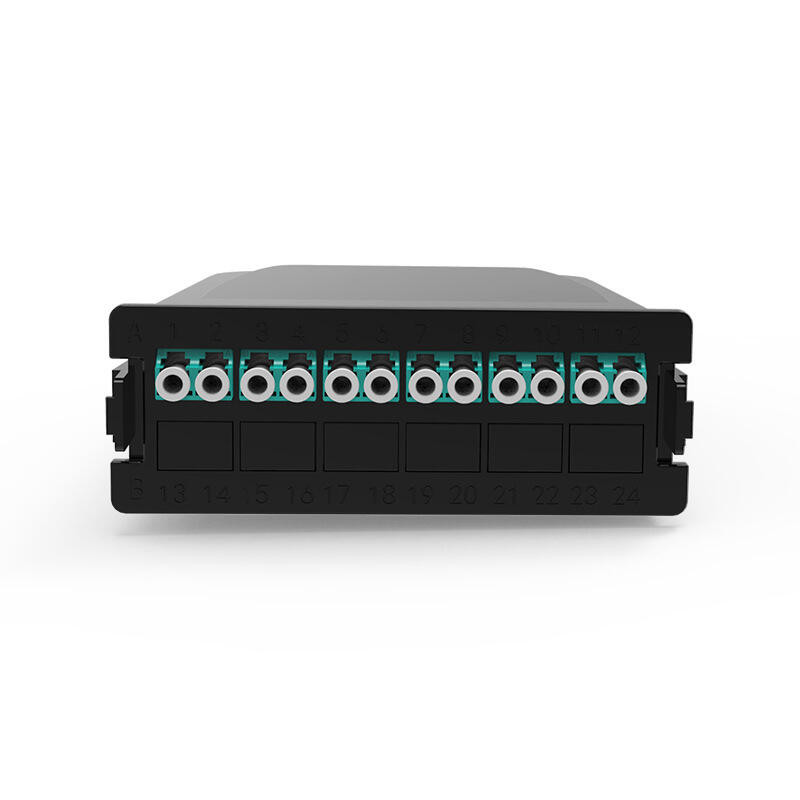

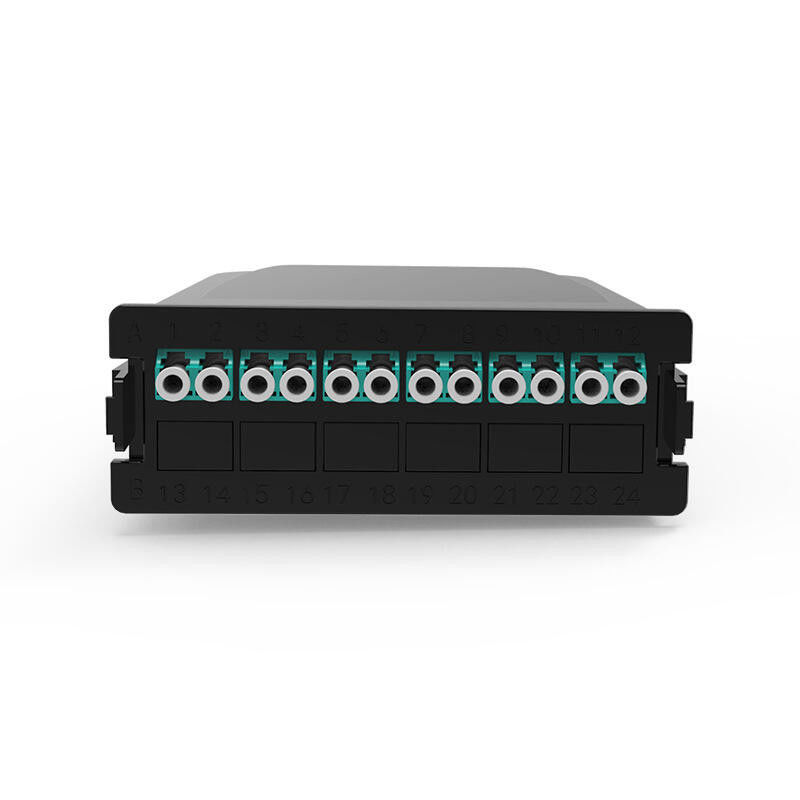

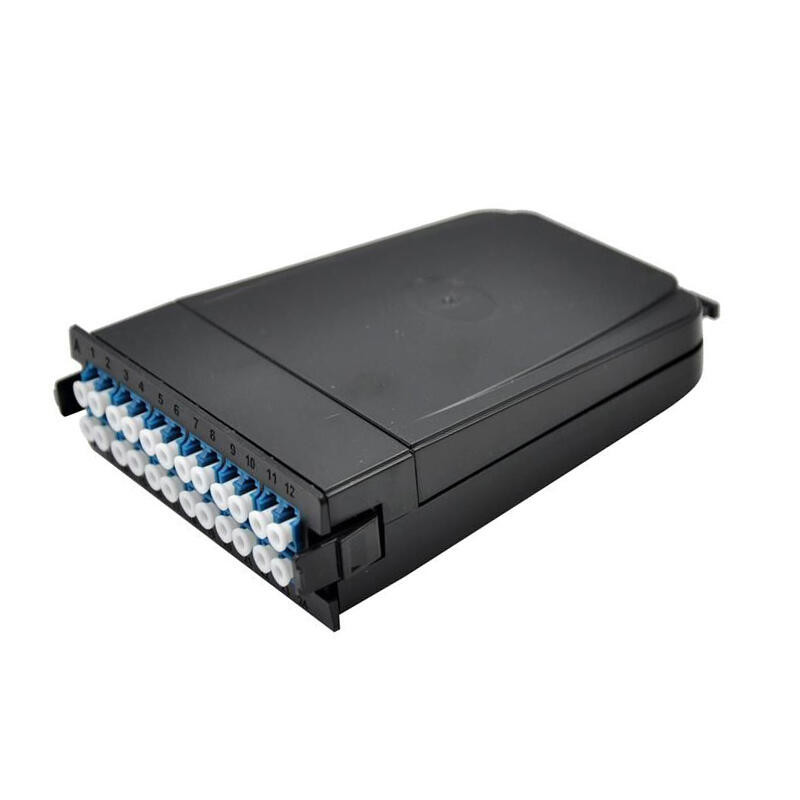

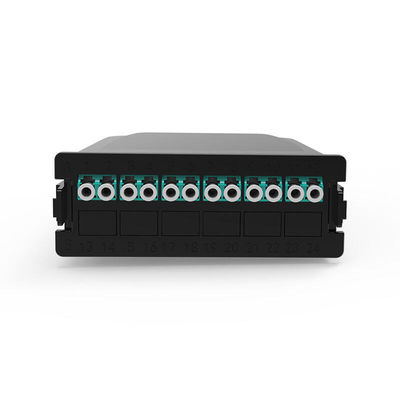

MPO/MTP module Cassettes is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.
|
Fiber Type |
Single Mode |
Multi-mode |
|
|
Standard Insertion Loss |
Typical(dB) |
≤0.7 |
≤0.5 |
|
Low Insertion Loss |
Typical(dB) |
≤0.35 |
≤0.35 |
|
Return Loss (dB) |
≥60(APC) |
≥30(PC) |
|
|
≥50(PC) |
|||
|
Tensile Strength (kgf) |
10 |
||
|
Durability(dB) |
≤0.2 500 matings |
||
|
Working Temperature(ºC) |
-40 ~+85 |
||
|
Testing Wavelength (nm) |
1310/1550 |
850 |
|
General Connector Termination
|
Fiber Type |
Single Mode |
Multi-mode |
|||
|
Parameter |
UPC |
APC |
UPC |
||
|
Insertion Loss Maximum (dB) |
≤0.3 |
||||
|
Return Loss (dB) |
≥50 |
≥60 |
≥35 |
||
|
Durability (dB) |
≤0.2 500 matings |
||||
|
Working Temperature(ºC) |
-40 ~+85 |
||||
|
Testing Wavelength (nm) |
1310/1550 |
850 |
|||
