| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | MTP MPO Cassette | Delivery: | FOB |
|---|---|---|---|
| High Light: | ftth fiber optic termination box 0.7db,ftth fiber optic termination box 0.5db,st fiber patch panel 24F |
||

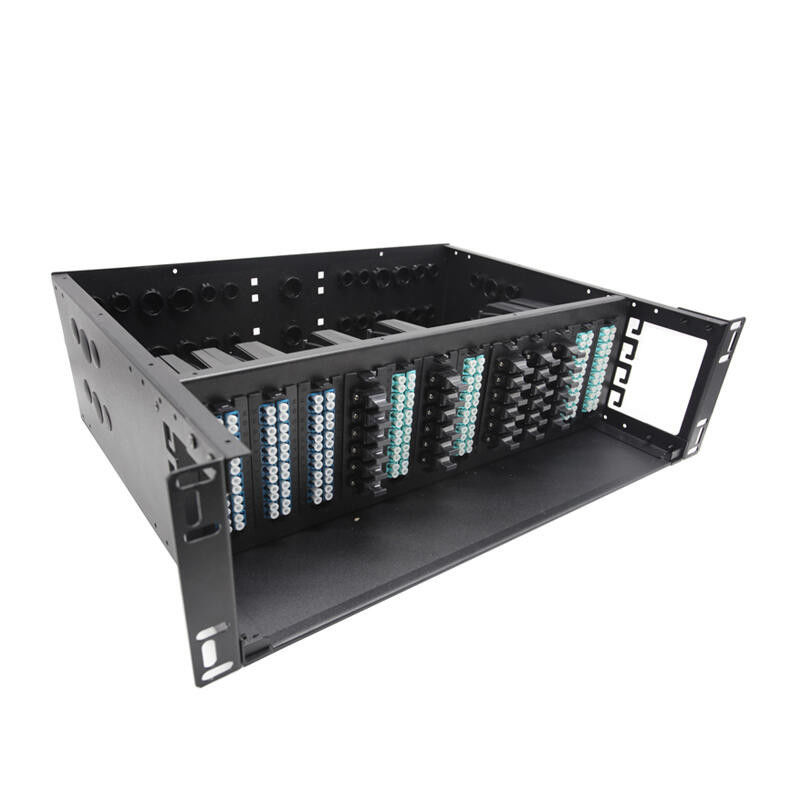

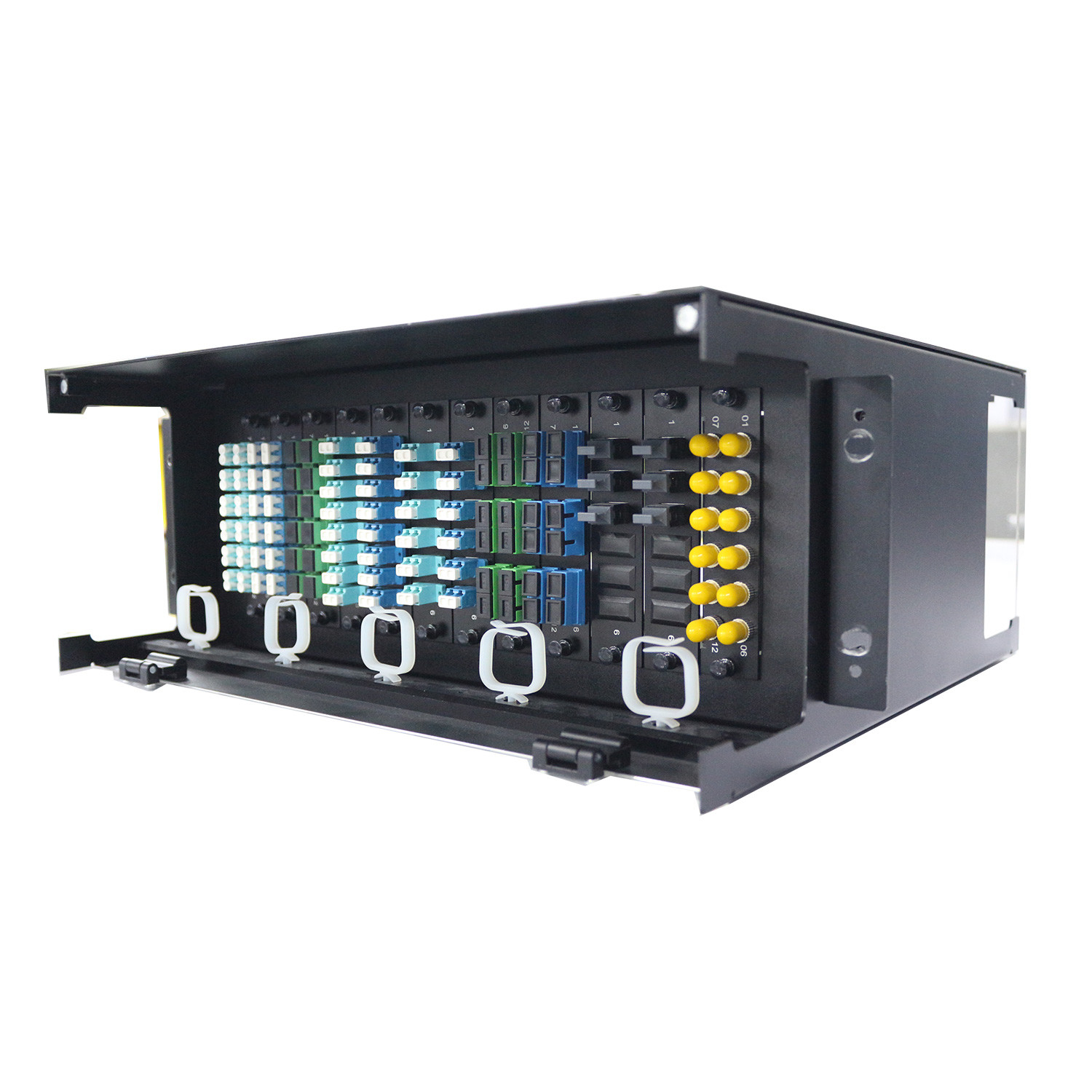

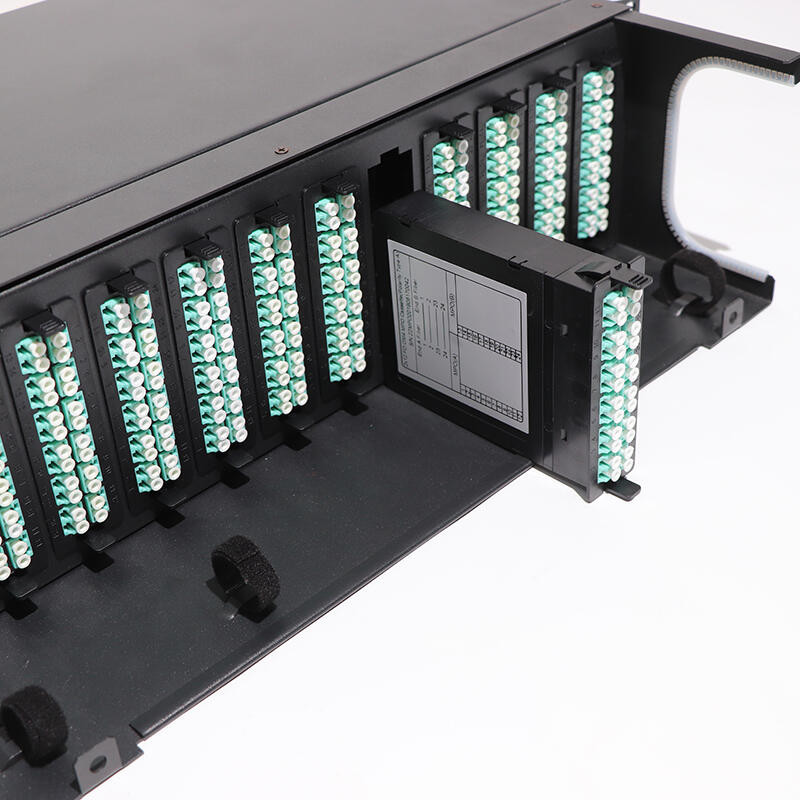

The fiber optic panel is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.
| Fiber Type | Single Mode | Multi-mode | |
| Standard Insertion Loss | Typical(dB) | ≤0.7 | ≤0.5 |
| Low Insertion Loss | Typical(dB) | ≤0.35 | ≤0.35 |
| Return Loss (dB) | ≥60(APC) | ≥30(PC) | |
| ≥50(PC) | |||
| Tensile Strength (kgf) | 10 | ||
| Durability(dB) | ≤0.2 500 matings | ||
| Working Temperature(ºC) | -40 ~+85 | ||
| Testing Wavelength (nm) | 1310/1550 | 850 | |
