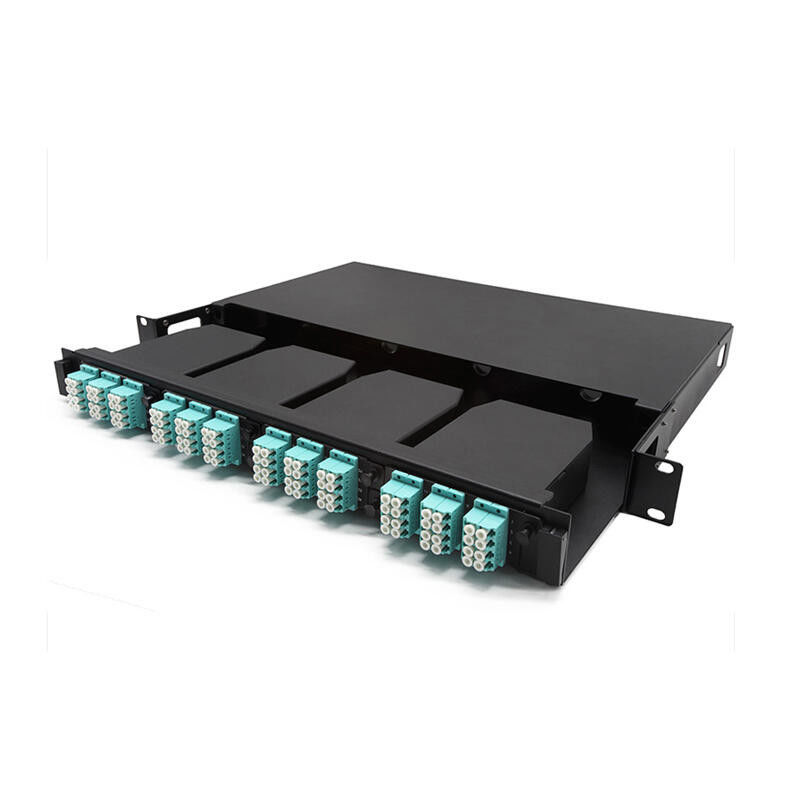

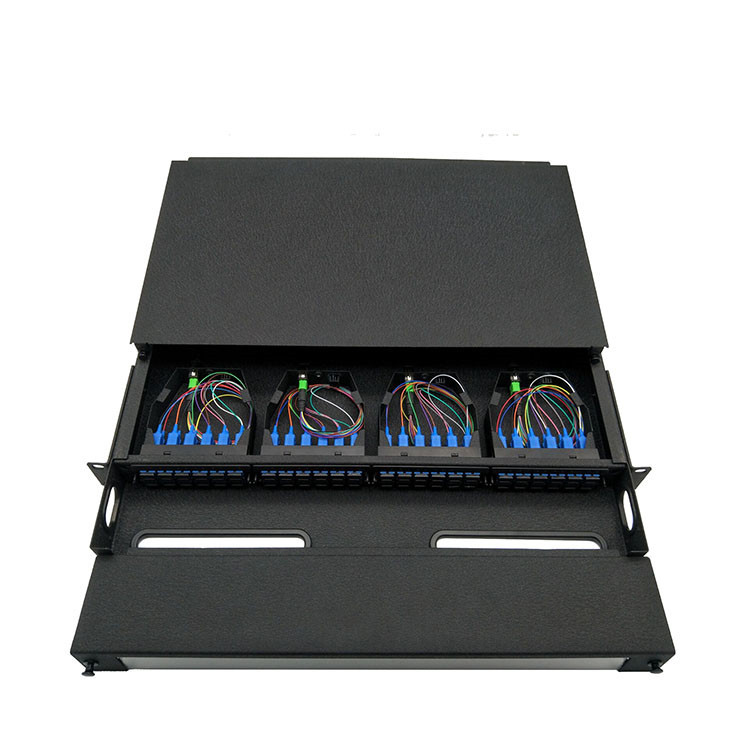

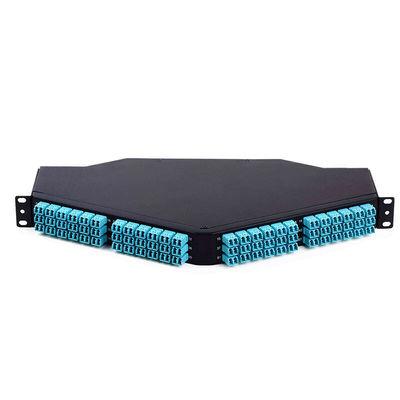

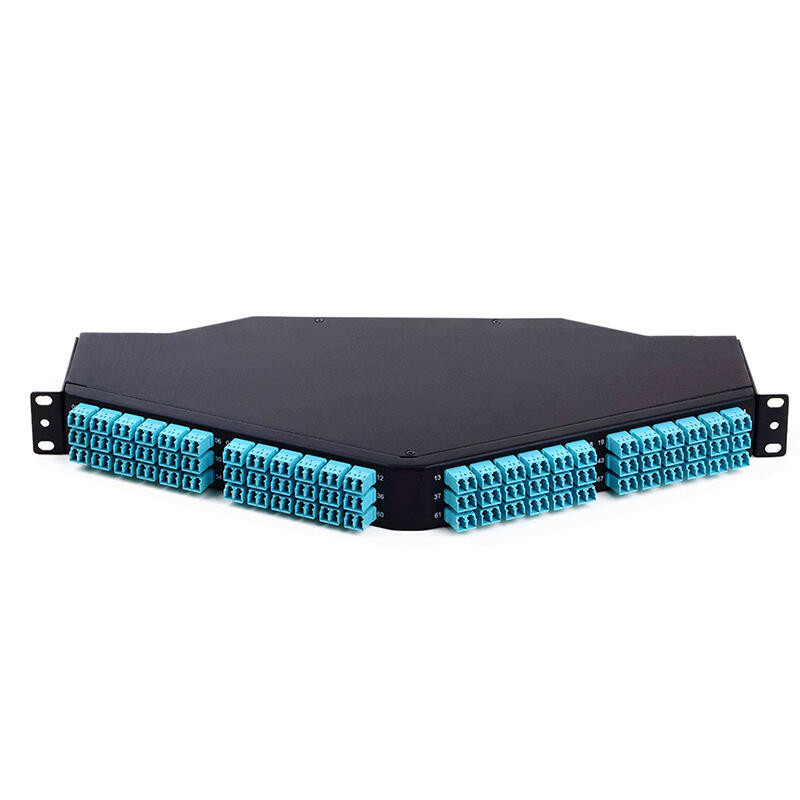

19" 48 Cores FDB Fiber Distribution Box Terminal Box Rack Mount Max 144F

19" 48 Cores FDB Fiber Distribution Box Terminal Box Rack Mount Max 144F
19" 48 Cores FDB Fiber Distribution Box Terminal Box Rack Mount Max 144F 19" 48 Cores FDB Fiber Distribution Box Terminal Box Rack Mount Max 144F 19" 48 Cores FDB Fiber Distribution Box Terminal Box Rack Mount Max 144F
Basic Information
Place of Origin: CHINA
Brand Name: SKYLYNN or OEM, ODM
Certification: ISO, ROHS, CE
Minimum Order Quantity: 10PCS
Packaging Details: PP BAG, INNER BOX, OUTER BOX
Delivery Time: 2-7 DAYS
Payment Terms: T/T, L/C, WEST UNION
Supply Ability: 800,000
Get Best Price Contact Now
Detail Information
Model NO.: Mpo Patch Panel Delivery: FOB
High Light:

19" fdb fiber distribution box

,

48Cores fdb fiber distribution box

,

fiber termination box wall mount 144F

Product Description

Rack Mount 48 Cores Fiber Optic Patch Panel MTP MPO LGX Chassis



Description

LGX PLC 1U 19” Rack Mount is an integrated unit for fiber management with a protection function, to hold 3 pieces of PLC LGX cassettes. The type of PLC LGX cassettes which have became the tendency in Europe&America fiber communications area at present.
The 12-Position LGX-style chassis from M2 Optics offers a rugged, 19" rack-mount platform for housing coupler, splitter, and WDM modules. This is most commonly requested chassis, however a 1RU 2-position unit is available as well.



Features

  • 19"rack mount, Color black.

  • Baffles are used where adapters are not installed.
  • Reliability - 100% Tested.Factory terminated and tested.
  • Front cable management function:Cable can be routed to the front of the cable management bar, either from the left or the right side
  • Rear cable management function:Cable can be routed to the rear of the cable management bar, from both sides.
  • 1U patch panel capacity comes up to 144F fully loaded , up to 12 MPO/MTP standard connectors.



Application

  • Data communication appications
  • Data Center infrastructure
  • Storage Area Network - Fiber Channel
  • Emerging 40 and 100Gbps Protocols compatible



Specifications

Model
MPO patch cord
MPO modular
MTPMPO sets
Connector type
MPO-LC/UPC
LC/UPC
MTP-LC
CONNECTOR
MPO LC
MPO LC
MPO LC
Material
MM OM3 10G Multi-mode
MM OM3 DX LSZHMM
MM OM3 DX LSZH







Tag:

4F MTP MPO Cables OFNP,

12F MTP MPO Cables,

mtp breakout cable 3MM
