| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | MPO/MTP Trunk Patch Cable | Delivery: | EXW/FOB/CIF Etc. |
|---|---|---|---|
| Country Of Origin: | GUA, CN | ||
| High Light: | 4F MTP MPO Cables OFNP,12F 72F MTP MPO Cables,fiber optic trunk cable 3MM |
||

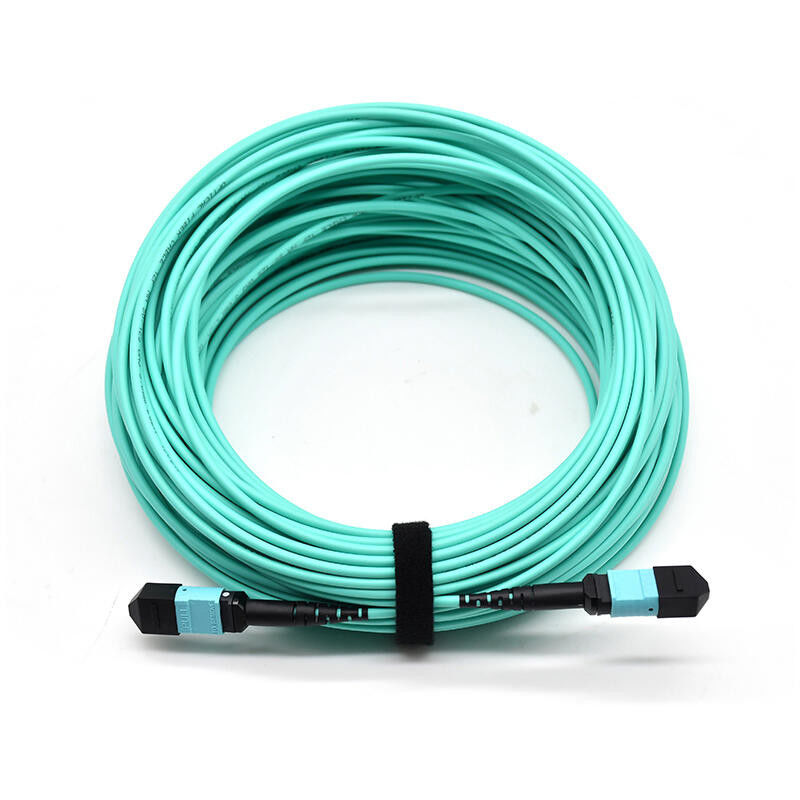

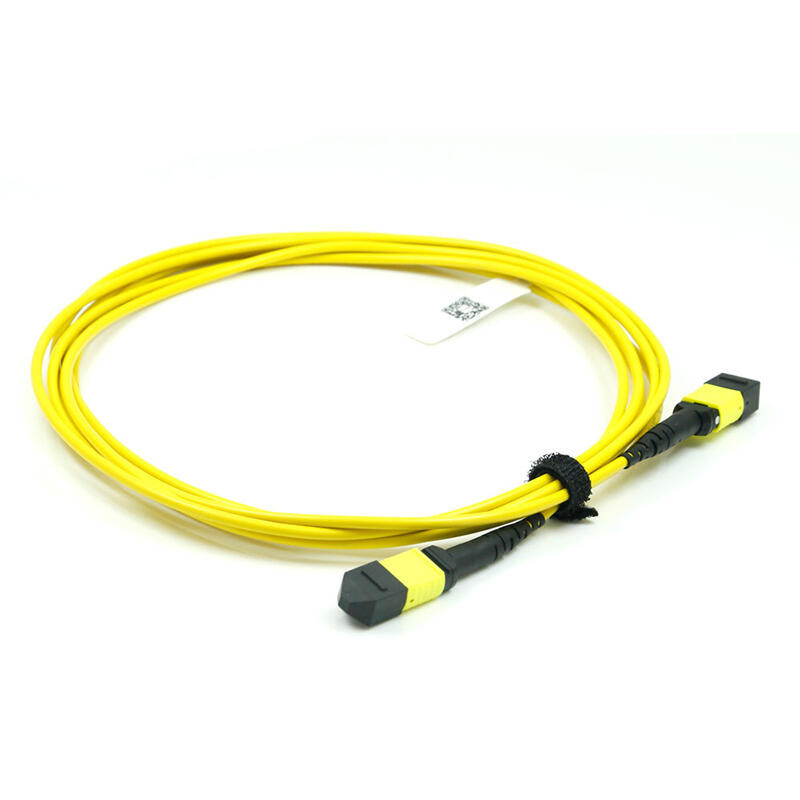

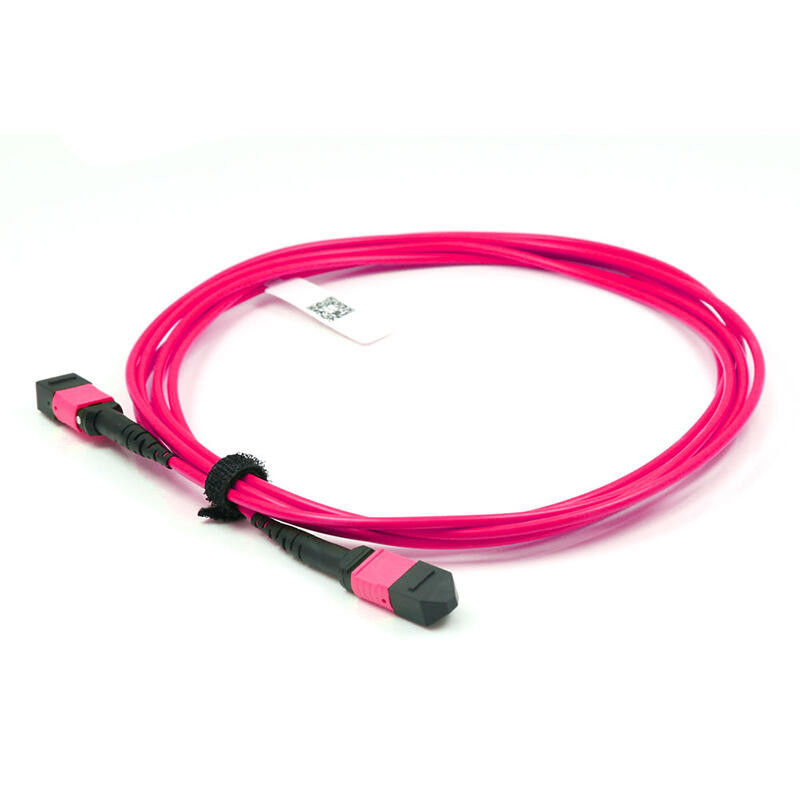

MPO/MTP Trunk Patch Cable
Description
MPO Fiber Patch cable/trunk cable is terminated with MPO connector on both ends. MPO Patch cable/trunk cables connect MPO modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48 and 72 fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels.
Features
Cable Parameters
| Fiber account |
OD(mm) | Nominal Weight (kg/km) |
Max.tensile Strength (N) | Max.Crush Resistance (N/100mm) |
Min.Bending Radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 12 | 3.0±0.15 | 7 | 180 | 90 | 500 | 150 | 20D | 10D |
Optical Characteristics
| Item | Parameter | |||
| Single mode | Multimode | |||
| Standard | Elite | Standard | Elite | |
| Insertion loss | Typical≤0.30dB Max≤0.75dB |
Typical≤0.15dB Max≤0.35dB |
Typical≤0.50dB Max≤0.25dB |
Typical≤0.10dB Max≤0.35dB |
| Return loss | ≥ 50dB (PC) ≥ 60dB (APC) |
≥ 55dB (PC) ≥ 65dB (APC) |
≥30dB(PC) | ≥30dB(PC) |
Polarity
