| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | MTP MPO Cassette | Delivery: | FOB |
|---|---|---|---|
| High Light: | Chassis Cores MTP MPO Cables 12F,144 Cores MTP MPO Cables 24F,wall mount fiber patch panel LGX Module |
||

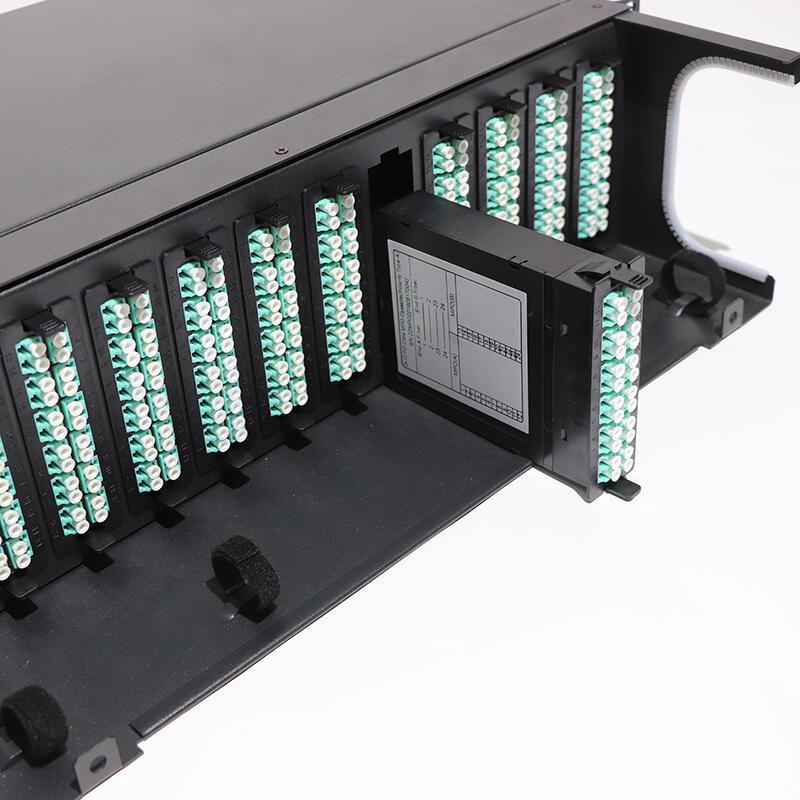

The fiber optic panel is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.

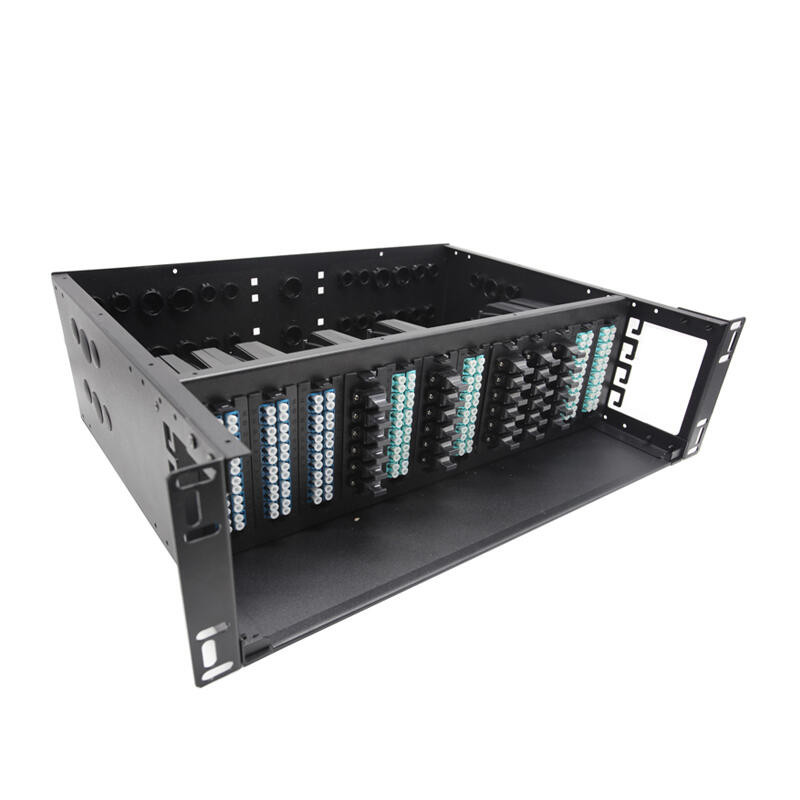

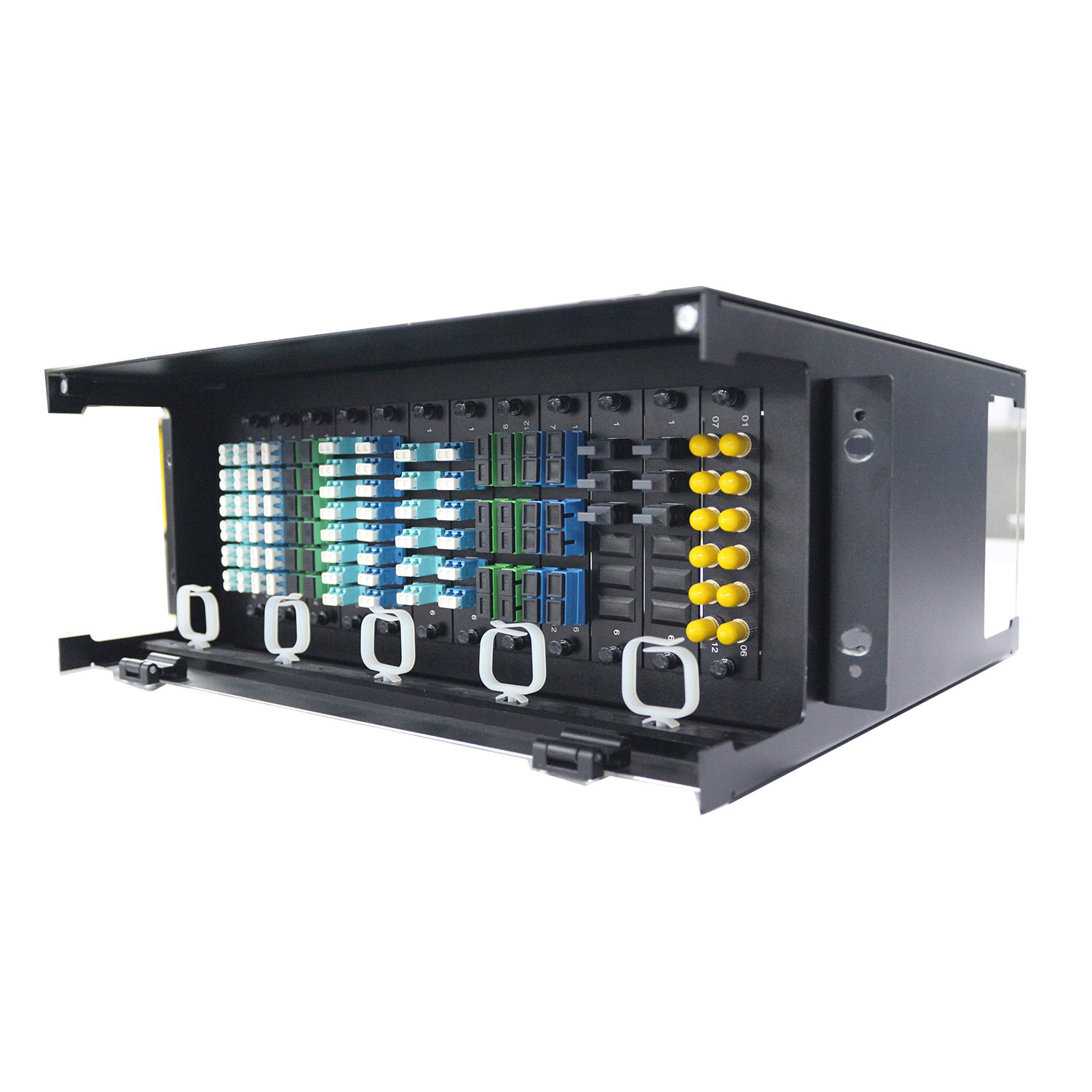

The LGX chassis are available with the wide array of standard and high-density couplers and splitter modules, or it can be ordered empty for those with existing LGX-style splitter modules
Application
| Fiber Type | Single Mode | Multi-mode | |
| Standard Insertion Loss | Typical(dB) | ≤0.7 | ≤0.5 |
| Low Insertion Loss | Typical(dB) | ≤0.35 | ≤0.35 |
| Return Loss (dB) | ≥60(APC) | ≥30(PC) | |
| ≥50(PC) | |||
| Tensile Strength (kgf) | 10 | ||
| Durability(dB) | ≤0.2 500 matings | ||
| Working Temperature(ºC) | -40 ~+85 | ||
| Testing Wavelength (nm) | 1310/1550 | 850 | |
