Product Description

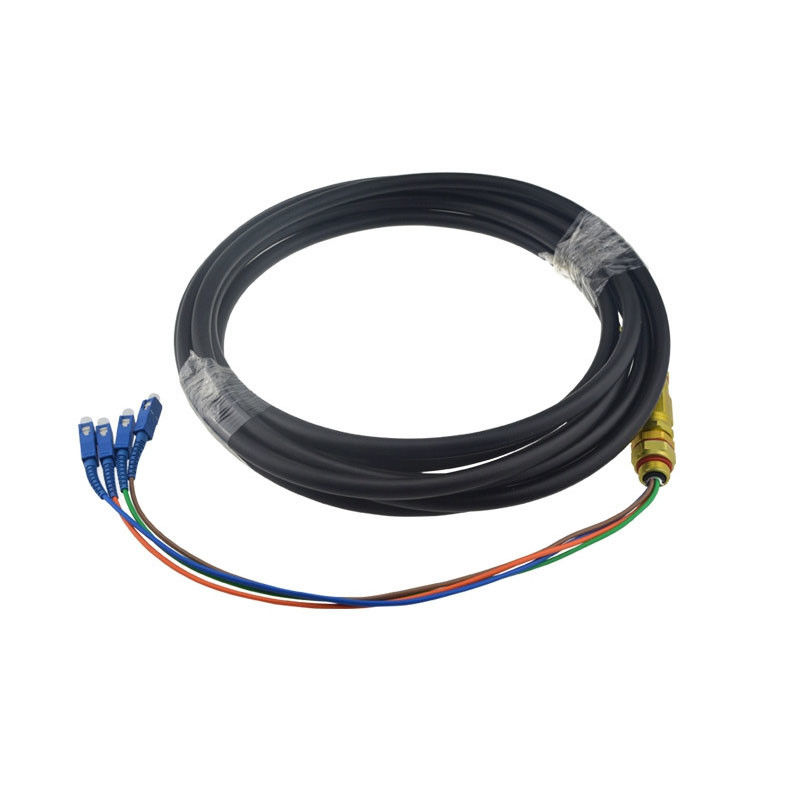

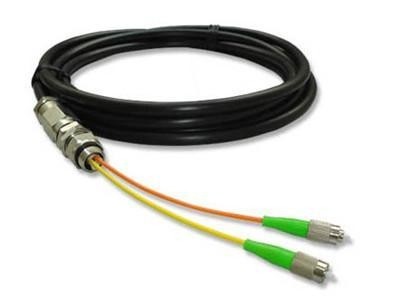

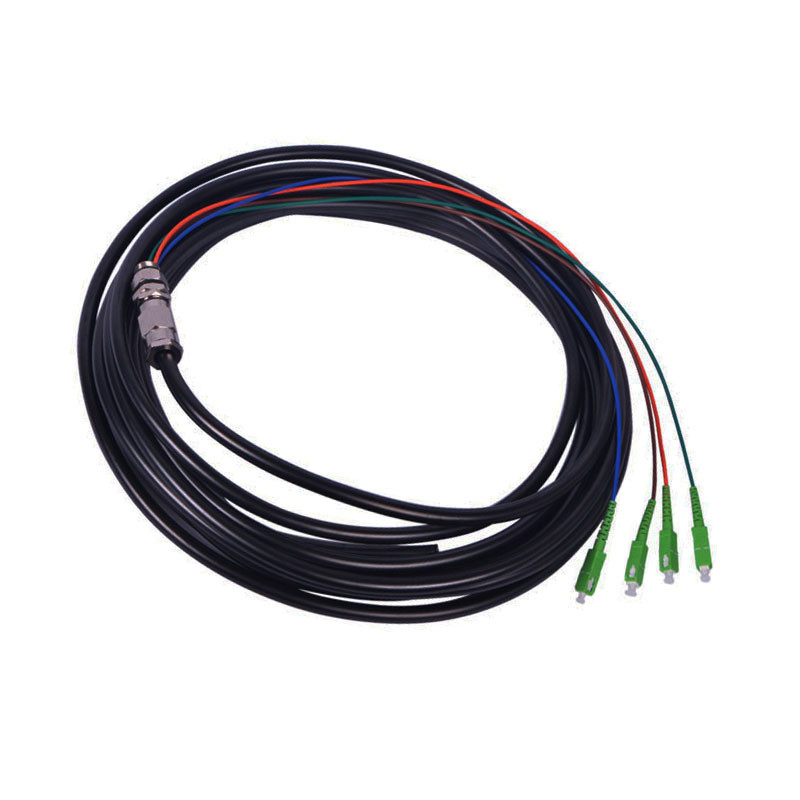

Outdoor Waterproof Optical Fiber Pigtail 1Core 2Core 4Core CATV FTTH

Description

Waterproof fiber optic patch cables are designed to fit for outdoor applications. The waterproof fiber optic cables are with strong PE jacket and armored structure, they can resist high temperature and suit to use in harsh environment.

Fiber Optic waterproof pigtails are widely used in data transmission network, typical types are with 2 fiber cores, 4 fiber cores or 8, 12 fiber cores. FasoCom produce the fiber optic waterproof pigtails strictly according to IEC standards, the products feature low insertion loss, high return loss, good interchangeability and repeat push-pull performance, which make them easy to use. The waterproof fiber optic pigtails are with strong PE jacket and waterproof sealed head connectors; they can be used in harsh environment.

Features

2, 4, 6, 8 and 12 cores are available
Low insertion loss, high return loss
Easy to splice and convenient laying
Singlemode or multimode fiber optional
Excellent repeatability and interchangeability
Good mechanical and environmental characteristics
Flame retardant, meet the requirement of relevant standards
Waterproof wrapped excellent performance suit for outdoor and harsh environment

Application

Fiber telecommunication system
Telecommunication network
CAT
LANS
WANS
FTTX

Specification

Item	Data
Insertion Loss	≤0.3dB
Return Loss	SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life	500cycles
Working temperature	-20°C~+70°C
Storage temperature	-20°C~+70°C
Tensile Data	Tensile between junction and fiber cable≥100N
