| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | SCASCASMSX30AQ | Delivery: | EXW/FOB/CIF Etc. |
|---|---|---|---|
| Country Of Origin: | GUA, CN | ||
| High Light: | FTTH Fiber Optic Patchcord,Fiber Optic Patchcord G657A2,SC APC Fiber Patch Cords |
||

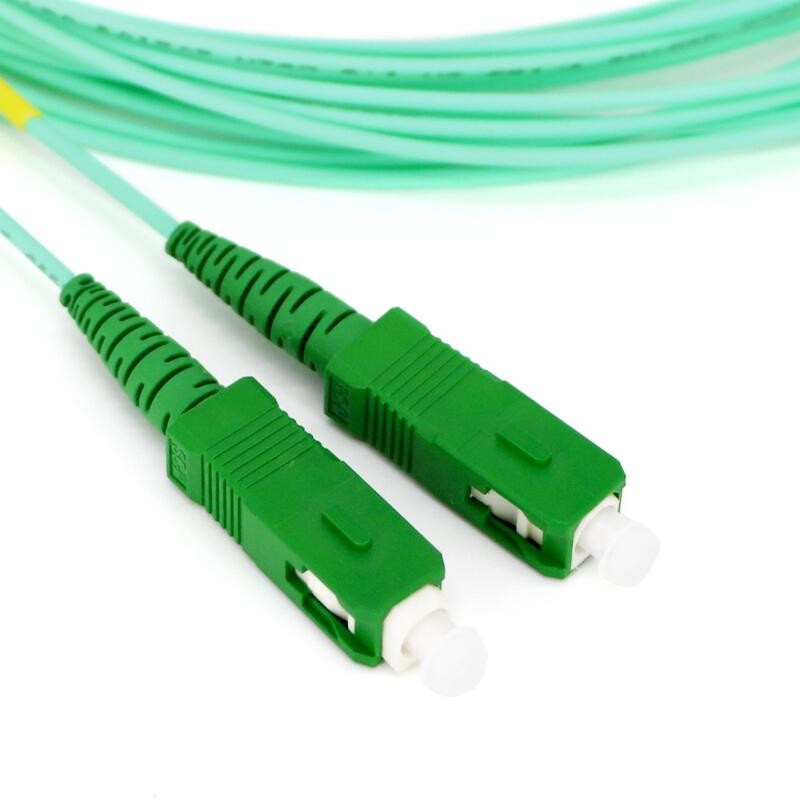

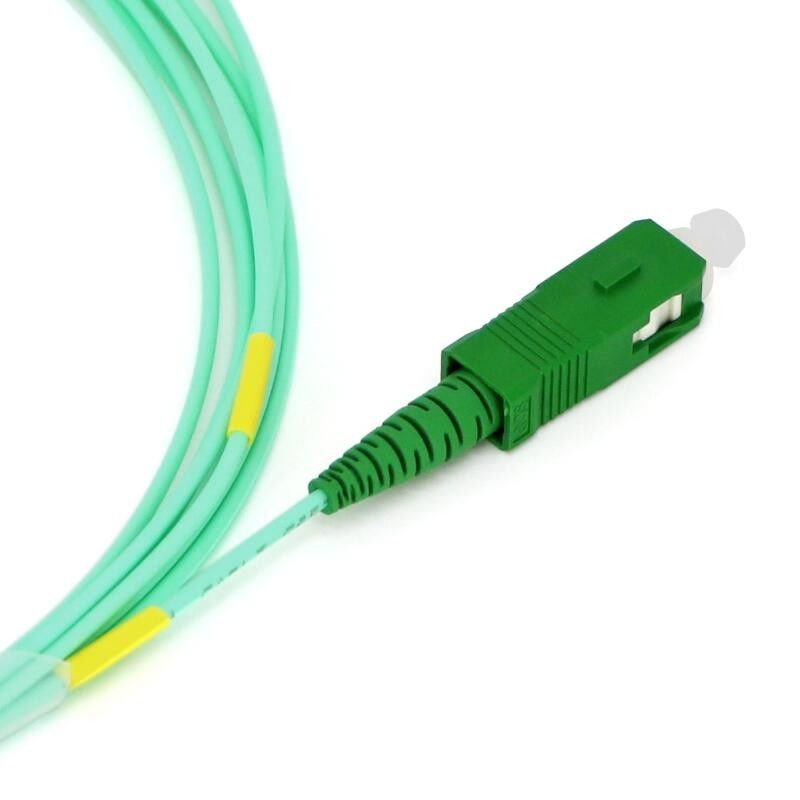

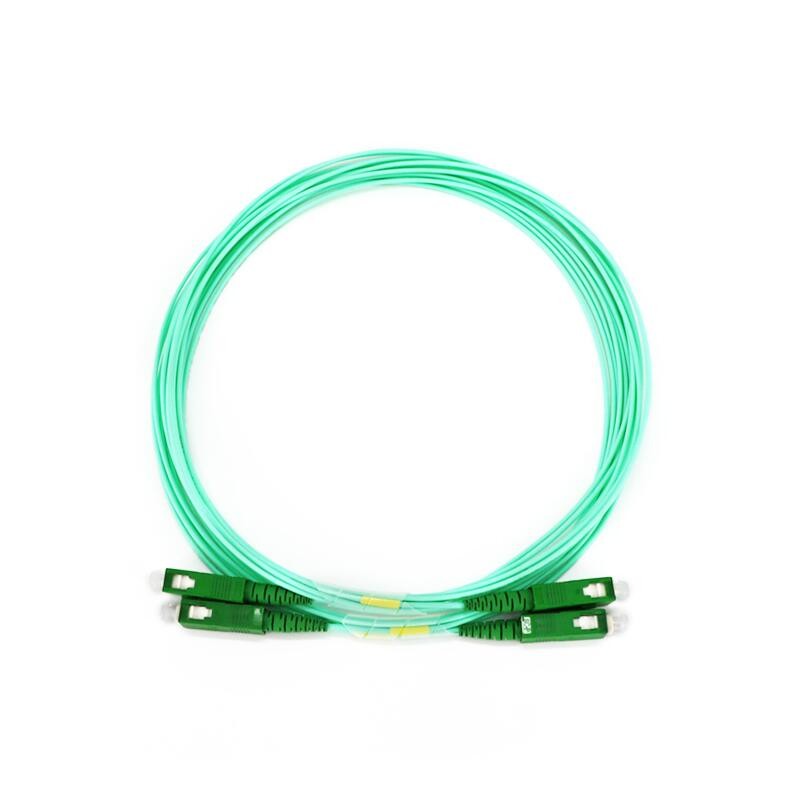

SCAPC FTTH Fiber Optic Patchcord Optical G657A2 1.6mm 3.0mm 1.5m 2m 3.5m 3m 4m Aqua Green White LSZH Cable
SCAPC Fiber Patch cords
Description
A ptachcords can be split into three crucial components, the connector, the cable and the manufacturing process. These three areas all contribute to the performance of a patch cord, but above all the manufacturing process is the one that defines the performance of the assembly. The range of high performance SC, FC, ST, LC, MTRJ, MU, fiber optic cables come in any combination, including angled (angle polished) SCA, MUA, FCA, STA, LCA, MPO Angled. We offer a range of Flammability options, PVC and LSZH. Features include, low insertion loss and outstanding return loss performance.
Compliance: IEC-61754-4/TIA 604-3/Telcordia GR-326-core
Application
ODF of optical transmission system
Connection of optical transmission equipments
Telecommunication network
Computer network
CATV
High quality graphic transmission network
High speed data transmission network
Features
Quick, highly repetable, low-loss connections
Simplex and duplex
Singlemode and multimode
PC and APC polishing
Various boot(cable) sizeds available
Various connectors available
Interferential parameters
Hybrid patch-cords are available upon request
Specifications
| SPECIFICATION: | ||||
|
Connector type
|
FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | |||
| Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
| Cable diameter | mm | 3.0, 2.0, 0.9 | ||
| Operating wavelength | nm | 1310, 1490,1550 | ||
| Core Type | G.652, G655, G657, OM1, OM2, OM3, OM4 | |||
| Ferrule End-face | PC | UPC | APC | |
| Insertion Loss | dB | ≤0,2 | ||
| Max. Insertion Loss | dB | ≤0,3 | ||
| Return Loss | dB | ≥45 | ≥50 | ≥55 |
| Operation Temperature | C | -40 ~ +80 | ||
| Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
| Durability | ≤0.1dB change, 500 Cycles | |||
| Sheath Color | SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized | |||
| Package | Each patchcord is packaged individually and individually test certification. | |||
