| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | SCASCASMSX30AQ | Delivery: | EXW/FOB/CIF Etc. |
|---|---|---|---|
| Country Of Origin: | GUA, CN | ||
| High Light: | SC Optical Fiber Patch Cord OM1,Optical Fiber Patch Cord OM2,multimode patch cord MTRJ |
||

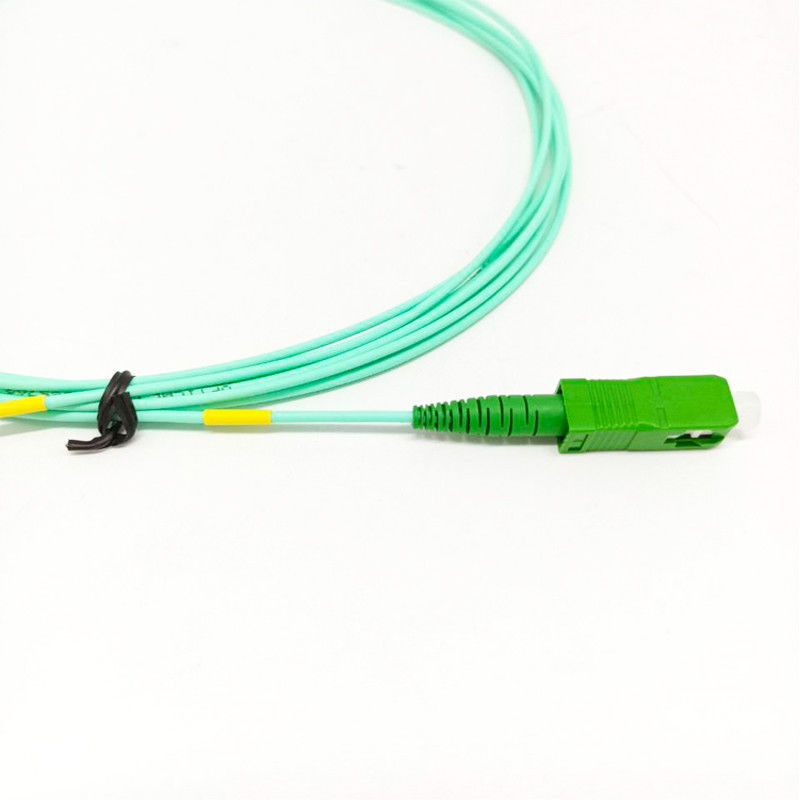

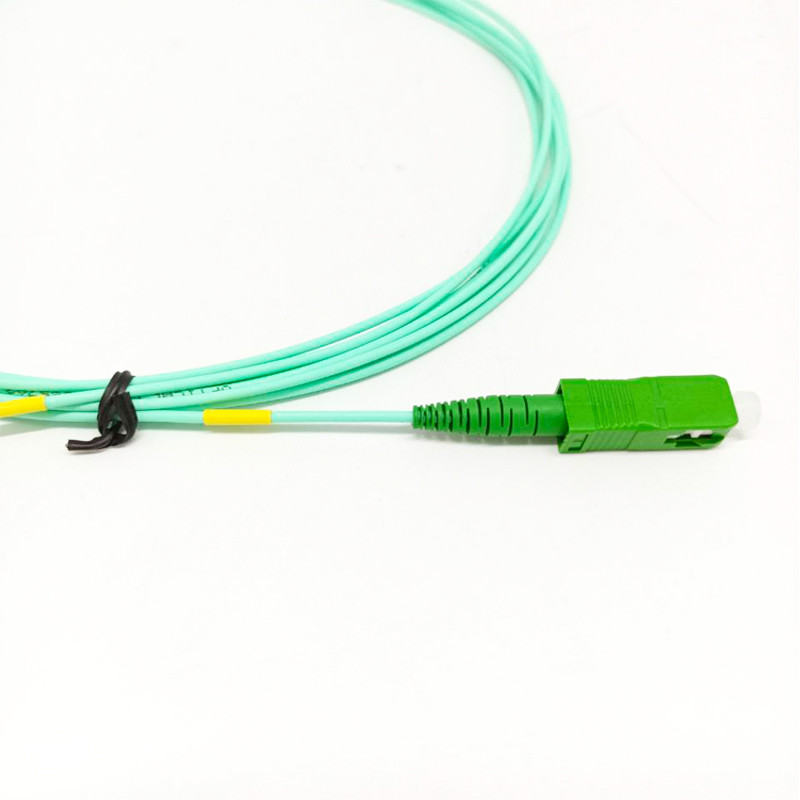

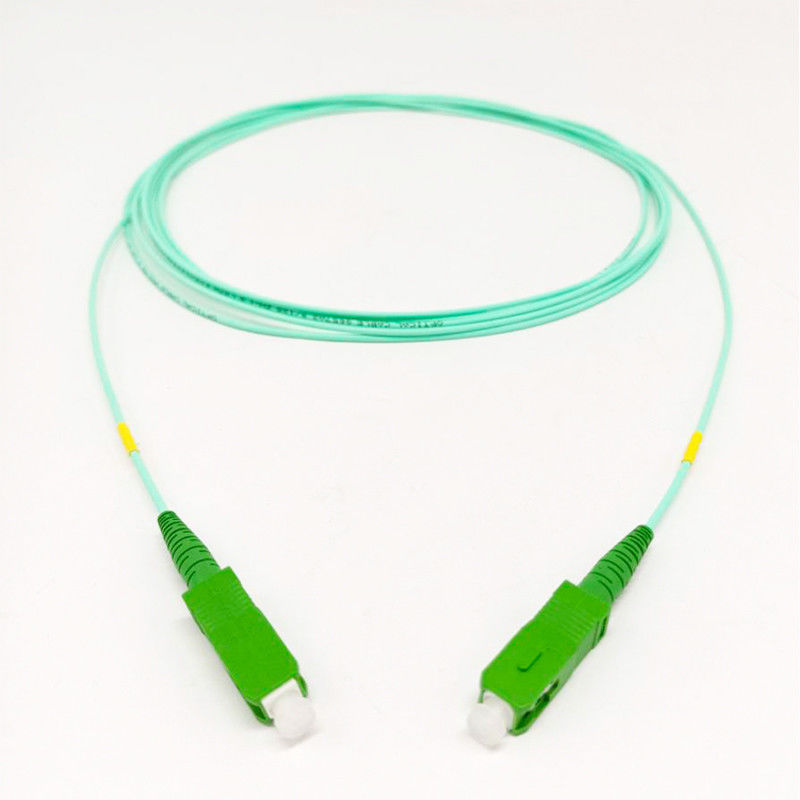

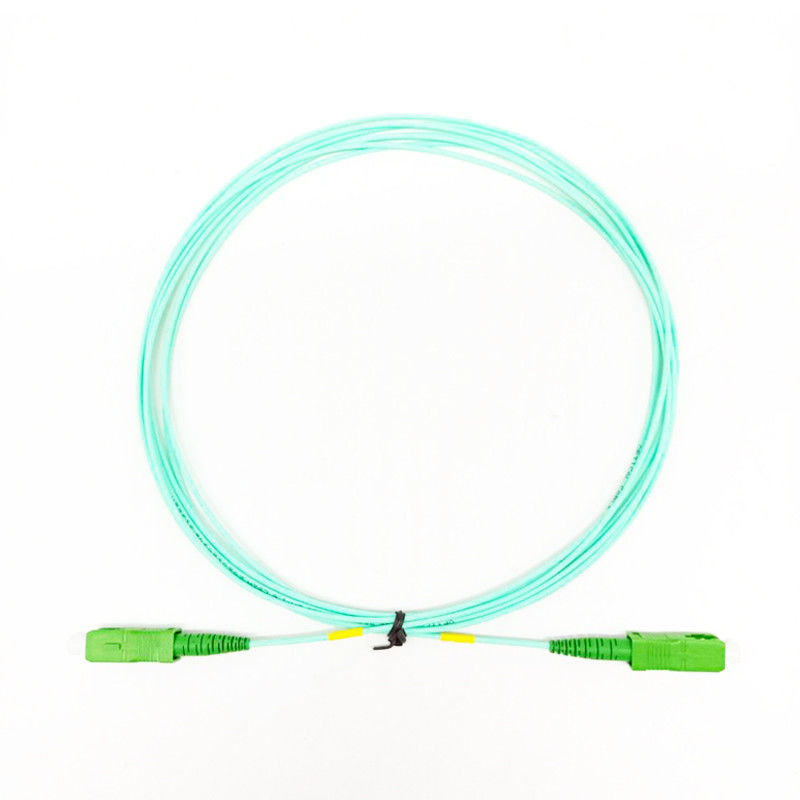

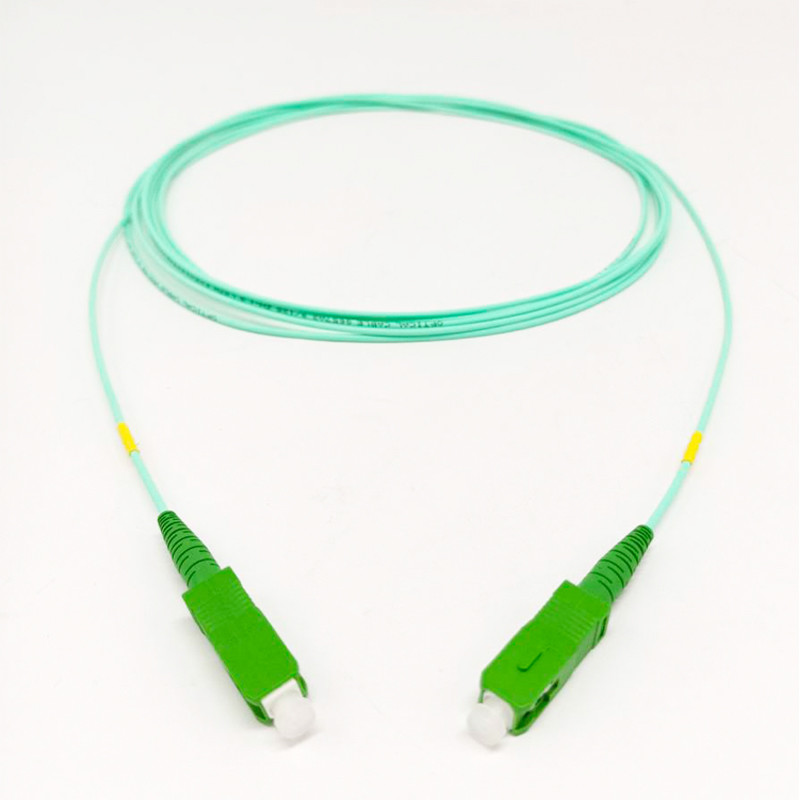

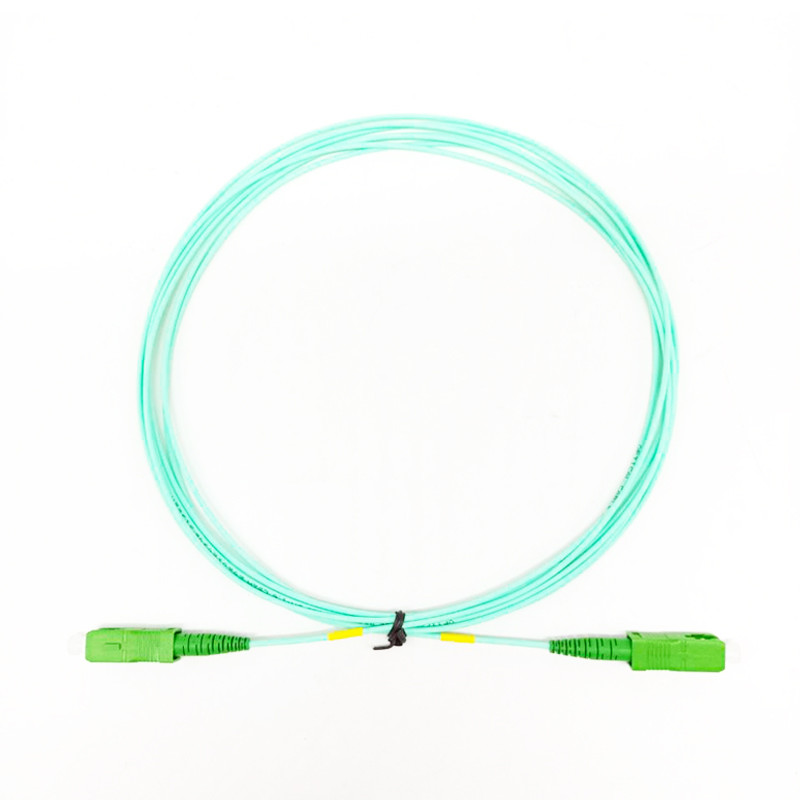

SC Series Fiber Patch cords
Description
Compliance: IEC-61754-4/TIA 604-3/Telcordia GR-326-core
Application
ODF of optical transmission system
Connection of optical transmission equipments
Telecommunication network
Computer network
CATV
High quality graphic transmission network
High speed data transmission network
Features
Quick, highly repetable, low-loss connections
Simplex and duplex
Singlemode and multimode
PC and APC polishing
Various boot(cable) sizeds available
Various connectors available
Interferential parameters
Hybrid patch-cords are available upon request
Specifications
| SPECIFICATION: | ||||
|
Connector type
|
FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | |||
| Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
| Cable diameter | mm | 3.0, 2.0, 0.9 | ||
| Operating wavelength | nm | 1310, 1490,1550 | ||
| Core Type | G.652, G655, G657, OM1, OM2, OM3, OM4 | |||
| Ferrule End-face | PC | UPC | APC | |
| Insertion Loss | dB | ≤0,2 | ||
| Max. Insertion Loss | dB | ≤0,3 | ||
| Return Loss | dB | ≥45 | ≥50 | ≥55 |
| Operation Temperature | C | -40 ~ +80 | ||
| Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
| Durability | ≤0.1dB change, 500 Cycles | |||
| Sheath Color | SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized | |||
| Package | Each patchcord is packaged individually and individually test certification. | |||
