| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | E2000SMDX18YE | Delivery: | EXW/FOB/CIF Etc. |
|---|---|---|---|
| Country Of Origin: | GUA, CN | ||
| High Light: | MPO fiber optic cable patch cord,E2000 fiber optic cable patch cord,st to st patch cord OM3 OM4 |
||

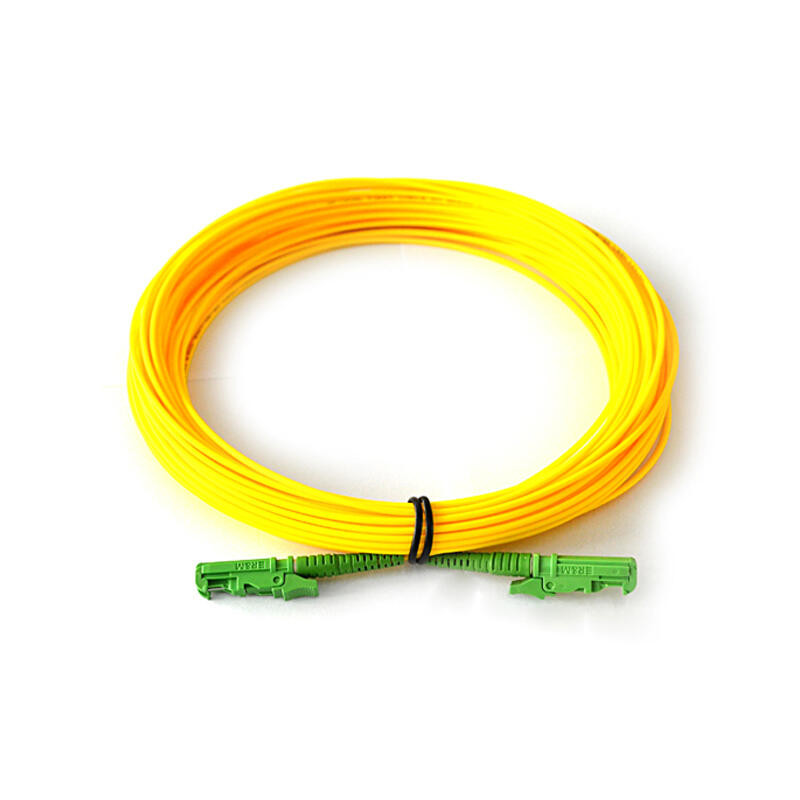

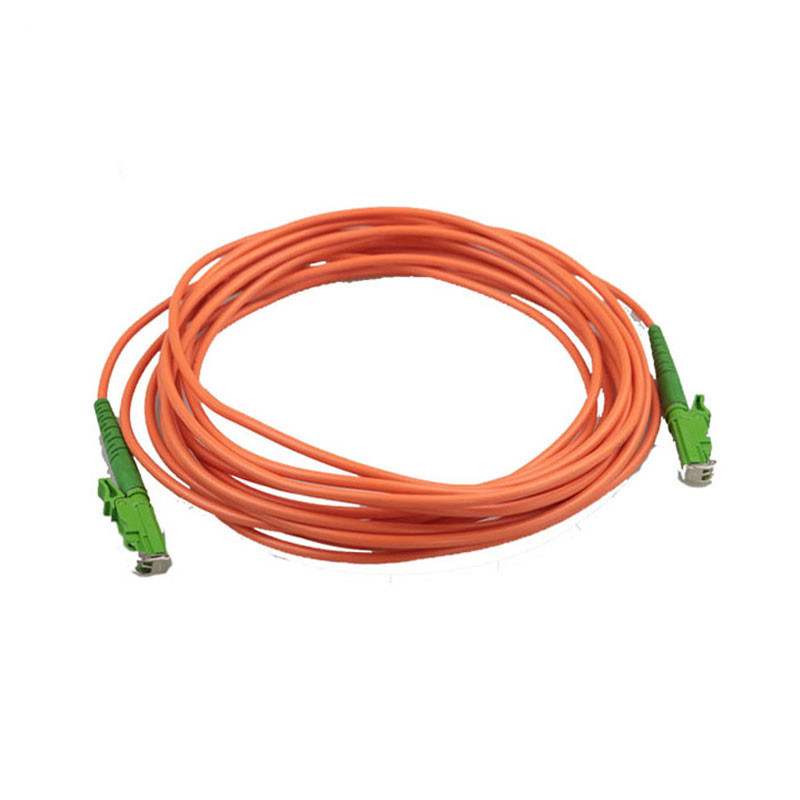

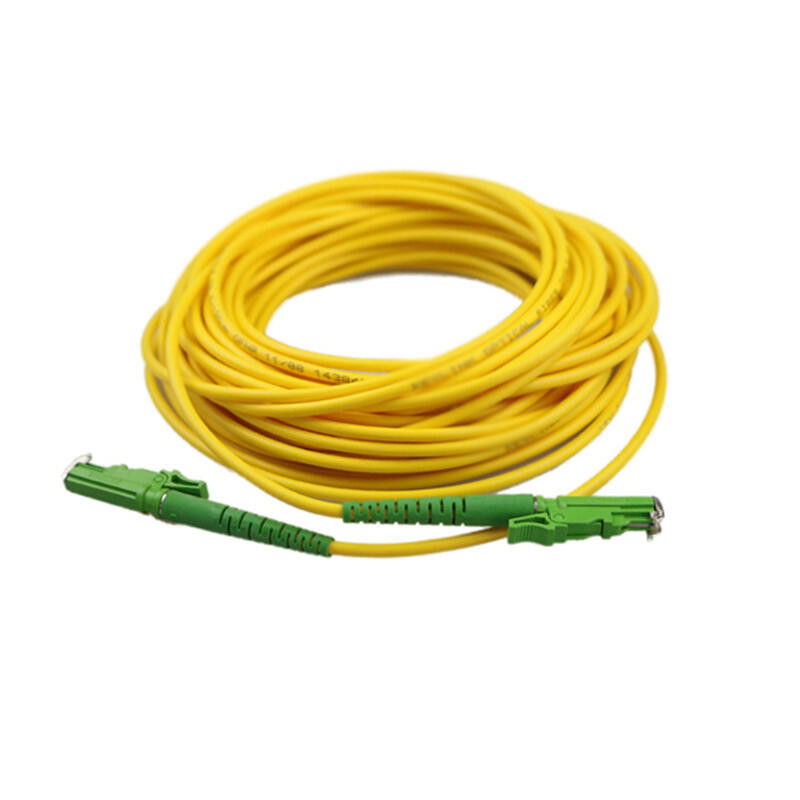

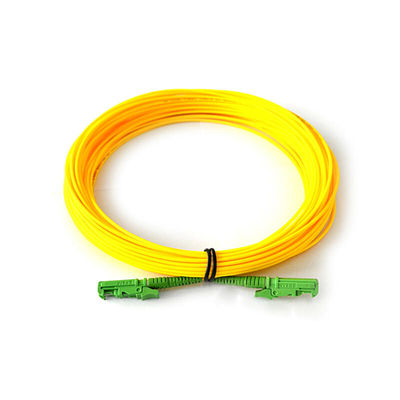

A Cost-effective solution that provides high bandwidth and transmission rates over longer distances. This high-quality singlemode fiber patch cords is specifically designed using SMF-28e fiber for ethernet applications. This cable is ROHS compliant. Each connection has a greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 9/125 single mode fiber, immune to electrical interference..
Connection of optical transmission equipments
Telecommunication network
Computer network
CATV
High quality graphic transmission network
High speed data transmission network
Features
Quick, highly repetable, low-loss connections
100% Optically inspected and tested for insertion loss
Pull-Proof Jacket
Immune to electrical interference
ROHS Compliant
Simplex and duplex
Singlemode and multimode
PC and APC polishing
Various boot(cable) sizeds available
Various connectors available
Interferential parameter
Hybrid patch-cords are available upon request
Specifications
| SPECIFICATION: | ||||
|
Connector type
|
FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | |||
| Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
| Cable diameter | mm | 3.0, 2.0, 0.9 | ||
| Operating wavelength | nm | 1310, 1490,1550 | ||
| Core Type | G.652, G655, G657, OM1, OM2, OM3, OM4 | |||
| Ferrule End-face | PC | UPC | APC | |
| Insertion Loss | dB | ≤0,2 | ||
| Max. Insertion Loss | dB | ≤0,3 | ||
| Return Loss | dB | ≥45 | ≥50 | ≥55 |
| Operation Temperature | C | -40 ~ +80 | ||
| Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
| Durability | ≤0.1dB change, 500 Cycles | |||
| Sheath Color | SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized | |||
| Package | Each patchcord is packaged individually and individually test certification. | |||
