| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | STUSTUSMSX30YE | Delivery: | EXW/FOB/CIF Etc. |
|---|---|---|---|
| Country Of Origin: | GUA, CN | ||
| High Light: | LC Optical Fiber Patch Cord 0.3db,Optical Fiber Patch Cord APC 1550nm,pigtail patch cord IEC 60794-2-30 |
||

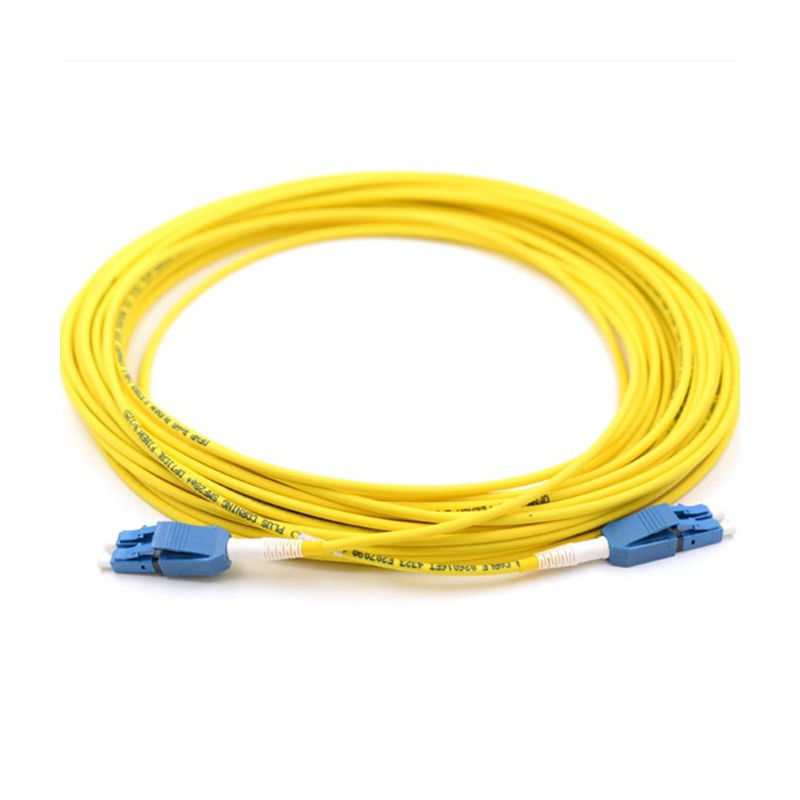

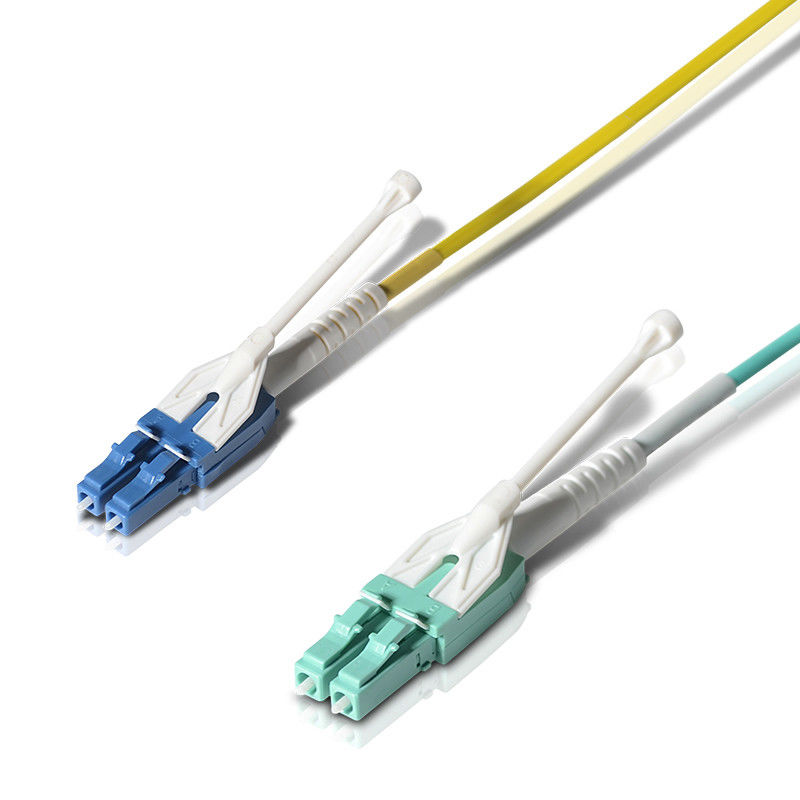

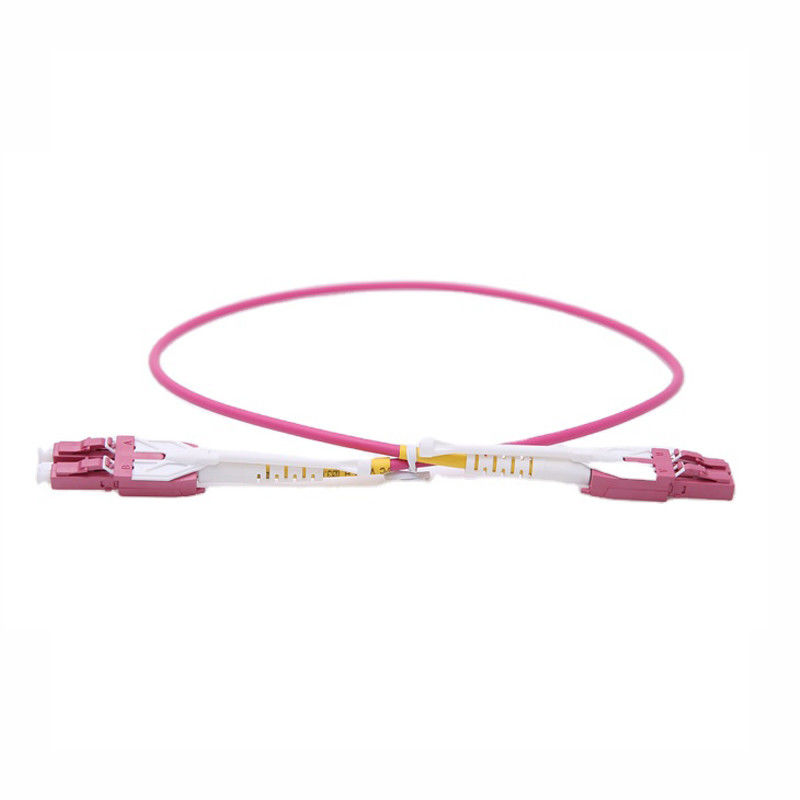

Fiber Optic High density LC HD Uniboot Push/Pull Patch Cord
Description
The Uniboot LC Low Loss Patch Cords are slim-line patch cords, ideal for high density/high speed applications. Using a uniboot patch cord provides a 50% space saving when compared to traditional optical patch cords.
Ideal for Data Center, SAN, Enterprise/Campus and Telco central office applications.
Application
Data Centers
Local Area Networks
High-Density Applications
Interconnects
Cross-connects
Features
Uniboot with a Single Housing
Unique Push-Pull Design and Function
Easy to Assemble and Use
Low Insertion Loss and Back Reflection
High Repeatability and Reliability
Telcordia GR-326 Qualified
Product performance
| Mode | Single mode | Multimode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1310nm | |
| Durability(500 Matings) | ≤0.2dB | ||
| Operating Temperature | -40℃~+60℃ | ||
| Storage Temperature | -45℃~+85℃ | ||
| Fire Resistant | IEC 60794-2-30 | ||
| Standards-Compliant | ROHS,IEC and GR-326 | ||
Specification
| Fiber type | Single mode: | G652D | G655 | G657A1,A2 | G657B3 | |
| Multimode: | OM2 | OM1 | OM3 | OM4 | OM5 | |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | |||||
| Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC | |||||
| Cord type | Simplex ,Duplex | |||||
| Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm | |||||
| Cable jacket | PVC, OFNR, LSZH, OFNP | |||||
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized | |||||
