| Application: | FTTH FTTB FTTX Network | Fiber Type: | Single-mode, Multimode |
|---|---|---|---|
| Fiber Connector: | FC, LC, SC, ST/PC Or APC | Product Name: | 1KM 9/125 Singlemode Single Bare Fiber Disk |
| High Light: | 1KM 9/125 G652 fiber optic disk,fiber optic disk sc fc OTDR,fiber cable reel Single Mode OEM |
||

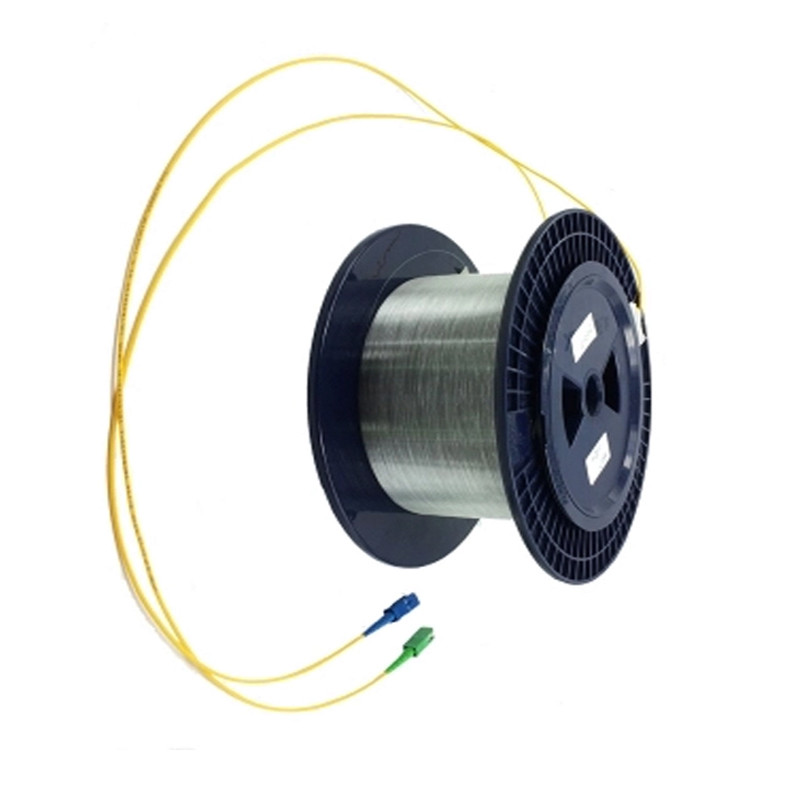

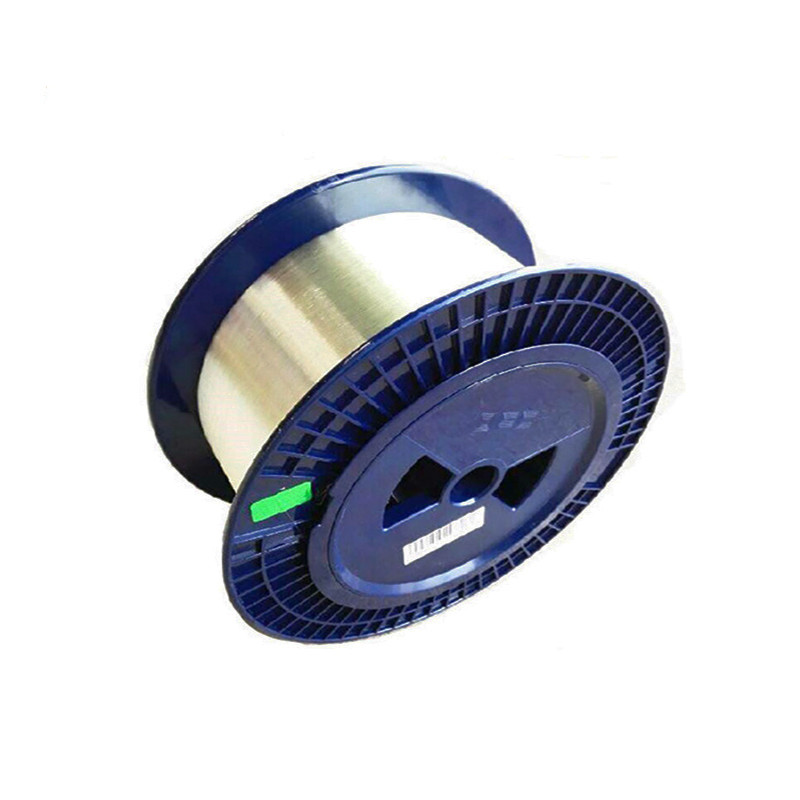

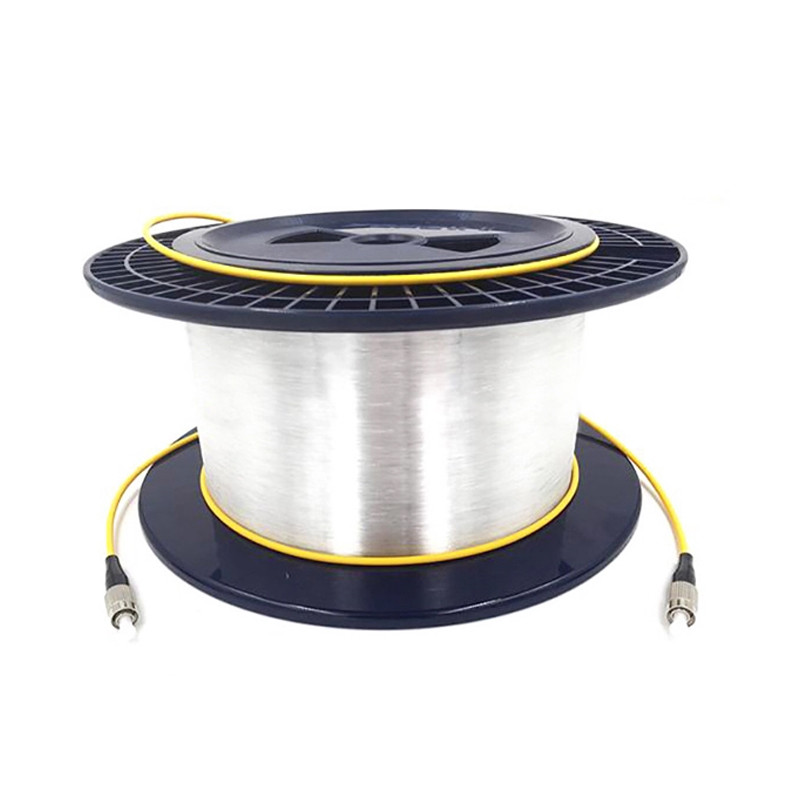

OTDR Launch Cables are designed to be used in conjunction with an OTDR to measure complete link loss of a fiber. They are also
known as pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings. An OTDR launch cable, which connects
the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection. A fiber ring serves as
both a launch cable and a receive cable.
Fiber Single mode; G.652 fiber.
Connectors can be added as per your request.
Standard length: 2km/roll
Cable length can be customized.
| Transmission Characteristics | SM (1310/1550nm) | 50/125 (850/1300 | 62.5/125 (850/1300 |
| Max Attenuation (dB/km) | 0.4/0.3 | 3.5/1.5 | 3.5/1.5 |
| Typical Attenuation (dB/km) | 0.35/0.21 | 3.1/1.0 | 3.1/1.0 |
| Mini Bandwidth (Hmz.km) | -- | 400/400 | 160/500 |
Note: The OTDR Launch cables can be added with certain connectors, such as FC-FC,SC-SC,FC-SC ST-ST etc. Please pay attention to the connector type when you order.
