| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | EAEASMSX30AY | Delivery: | EXW/FOB/CIF Etc. |
|---|---|---|---|
| Country Of Origin: | GUA, CN | ||
| High Light: | E2000 duplex patch cord,duplex patch cord APC 10m,single mode fiber patch cable OM2 |
||

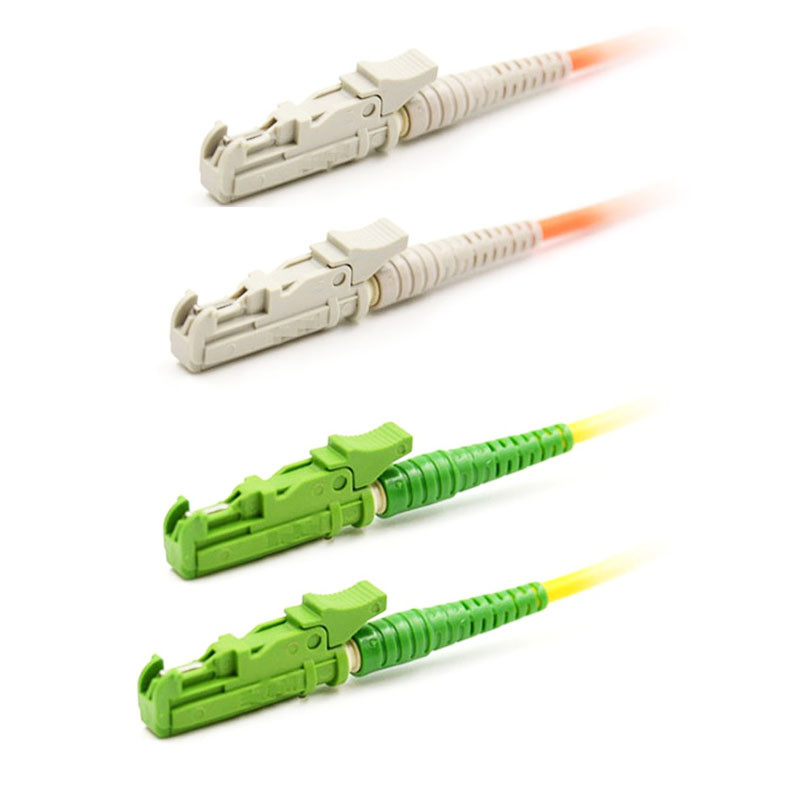

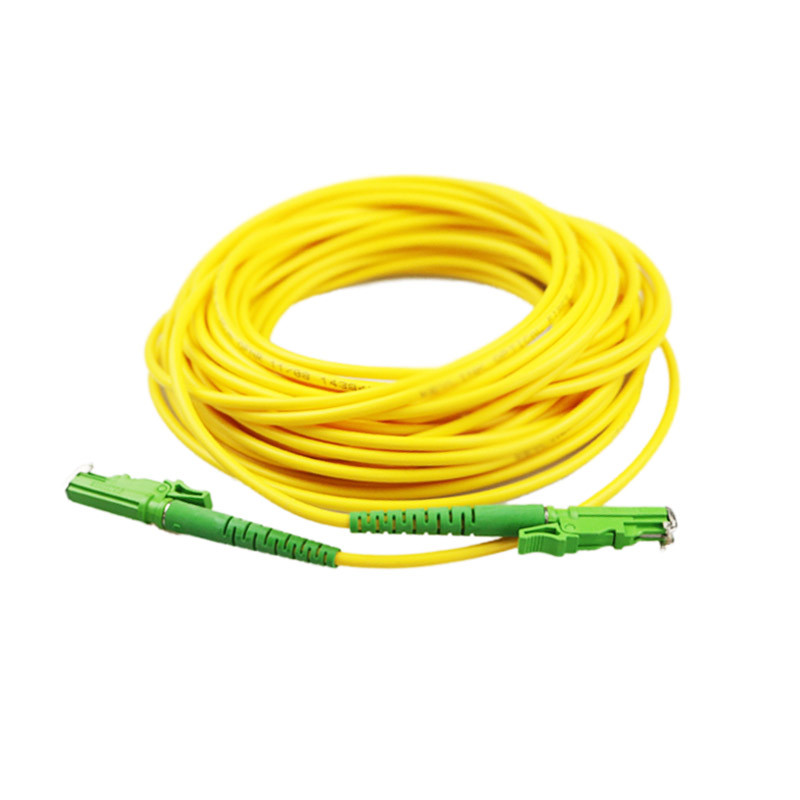

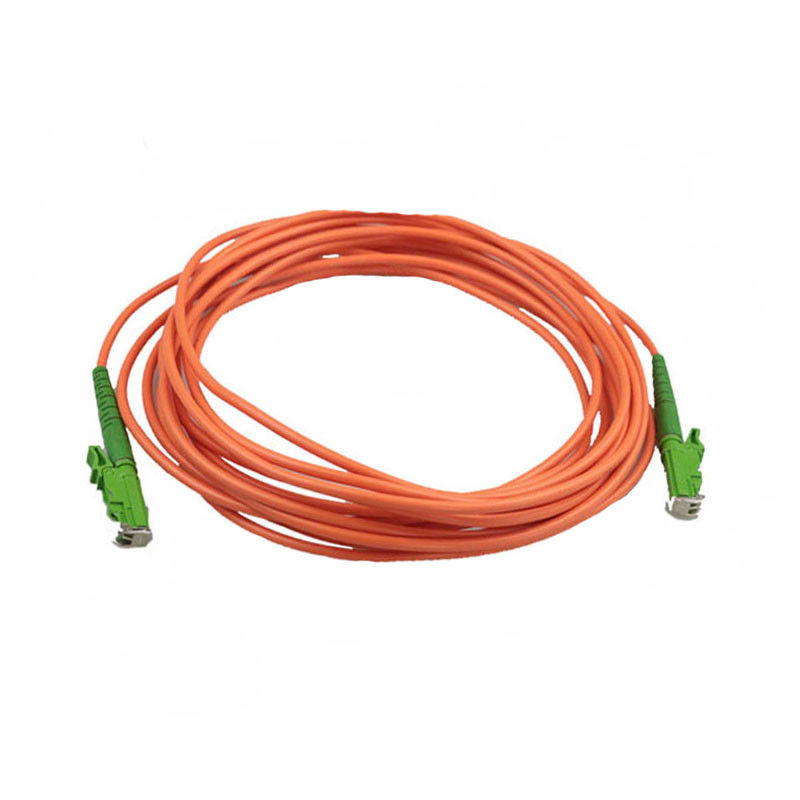

Fiber optic patch cords are used to jump from the device to the fiber optic cabling link. There is a thick protective layer,generally used in the optical terminal and the terminal box between the connection, used in optical fiber communication
systems,fiber access network, optical fiber data transmission and LAN and other areas.RE-1999 requirements.
Optical fiber communication systems engineering.
Fiber optic data communication network.
Fiber CATV engineering.
Other optical technology tests.
The style is diverse, the interface is complete.
Low insertion loss and added loss.
Height of attenuation.
High back loss, small volume, light weight.
End-face geometry and quality superior than IEC and Telcordia standards.
LSZH, OFNP, OFNR cable jacket.
Mechanical performance: IEC 61754-15 standard.
RoHS and REACH materials compliant.
| Connector type | FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | |||
| Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
| Cable diameter | mm | 3.0, 2.0, 0.9 | ||
| Operating wavelength | nm | 1310, 1490,1550 | ||
| Core Type | G.652, G655, G657, OM1, OM2, OM3, OM4 | |||
| Ferrule End-face | PC | UPC | APC | |
| Insertion Loss | dB | ≤0,2 | ||
| Max. Insertion Loss | dB | ≤0,3 | ||
| Return Loss | dB | ≥45 | ≥50 | ≥55 |
| Operation Temperature | C | -40 ~ +80 | ||
| Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
| Durability | ≤0.1dB change, 500 Cycles | |||
| Sheath Color | SM: Yellow, OM1/OM2: Orange, OM3: Aqua, OM4: Purple, OM5: Green, customized | |||
| Package | Each patchcord is packaged individually and individually test certification. | |||
