| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | FTTH Outdoor Flat Drop Patch Cords | ||
|---|---|---|---|
| High Light: | 2x0.5mm cable FTTH Products,FTTH Products APC ST,fiber optic patch cable IEC 61754-4 |
||

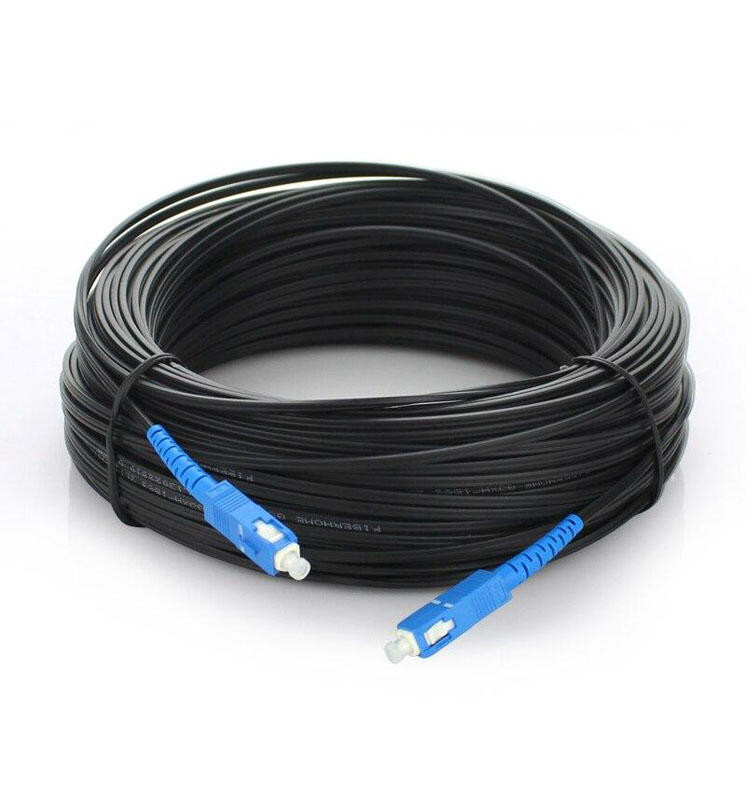

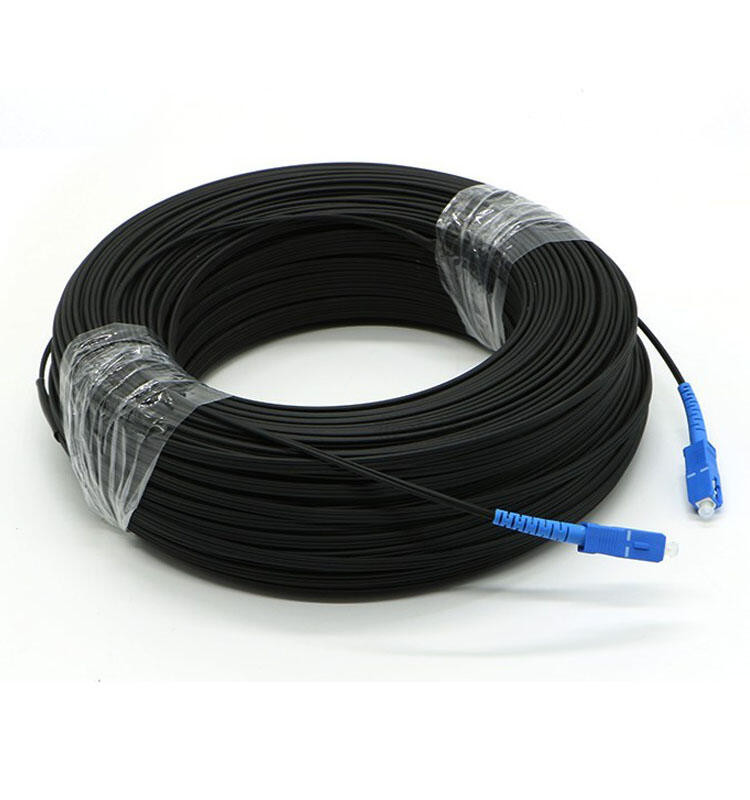

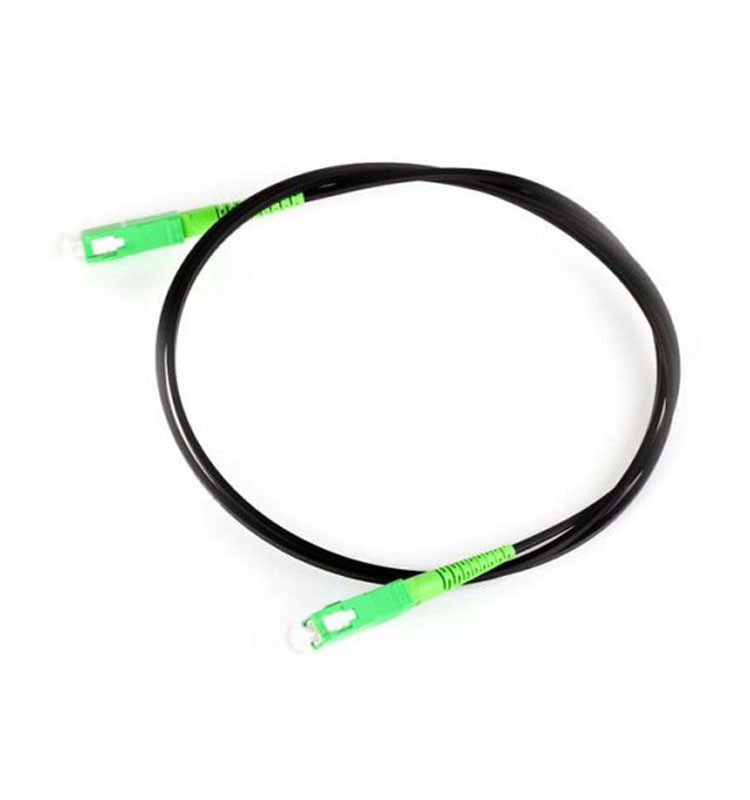

The material of the flat drop patch cords are all-weather and UV-resistant. They are very reliability and stability. And they are cost effective solution for in house termination. This kind of flat drop patch cords suitable for indoor and outdoor areas.
| Connector type | Unit | FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc. | ||
| Cable Length | m | 1, 2, 3, 5, 10 (±10mm) | ||
| Cable diameter | mm | 5.0*2.0 | ||
| Operating wavelength | nm | 1310, 1490,1550 | ||
| Core Type | G.652, G655, G657, OM1, OM2, OM3, OM4 | |||
| Ferrule End-face | PC | UPC | APC | |
| Insertion Loss | dB | ≤0,2 | ||
| Max. Insertion Loss | dB | ≤0,3 | ||
| Return Loss | dB | ≥45 | ≥50 | ≥55 |
| Operation Temperature | C | -40 ~ +80 | ||
| Core Diameter | um | 9/125, 62.5/125, 50/125 | ||
| Durability | ≤0.1dB change, 500 Cycles | |||
| Sheath Color | White, Black | |||
| Package | Each patchcord is packaged individually and individually test certification. | |||
