| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | SC Fast Connector | Delivery: | FOB |
|---|---|---|---|
| High Light: | 0.9mm FTTH Products,0.3db FTTH Products,55db fast connect fiber connectors |
||

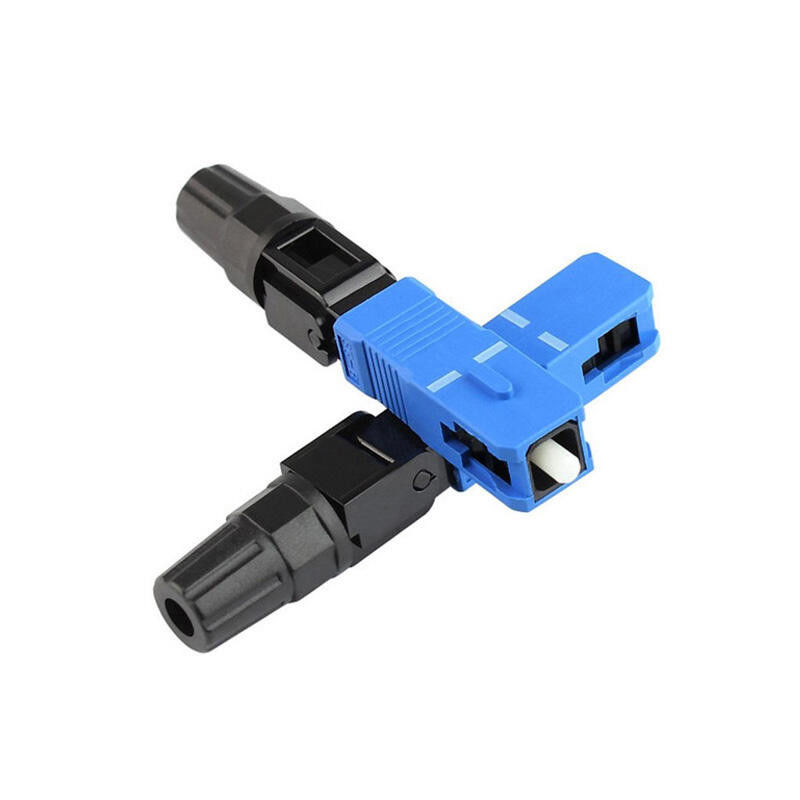

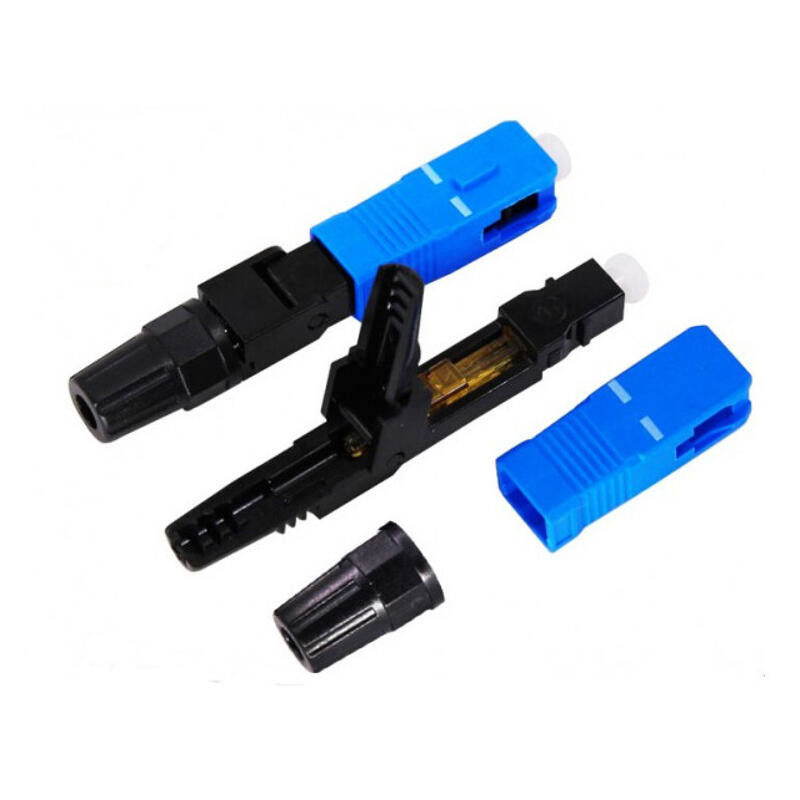

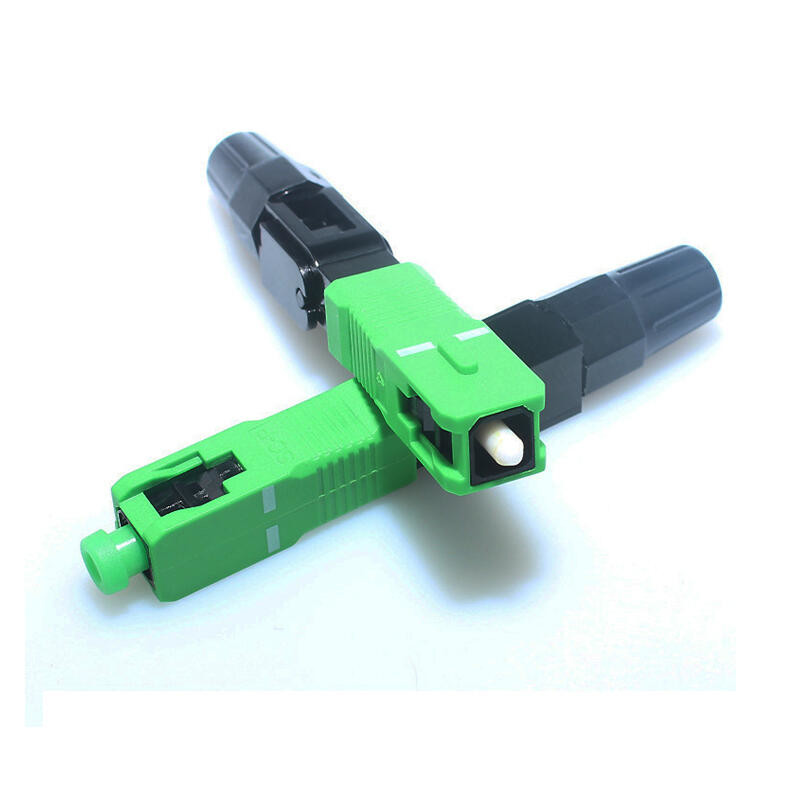

FTTH System SC UPC APC Fast Assembly Fiber Fast Connector
The SC fiber fast connectors are factory pre-polished and field installable connectors.So that completely eliminate the need for hand polishing in the field.
The fast connector has easy assembly and excellent stability features without further processing.
Such as polishing, adhesives to facilitate the termination of the fiber in the field and working hard to secure space environment alone can access for
assembling.
Additional, it can be reduced the defect rate dramatically by worker's connection error due to it can be reconnected.
Features
Application
Specification
| Fiber cable type | 0.9mm Tight Buffer Fiber,2mm/ 3mm Drop Cable |
| Insertion Loss | <0.3db(PC), <0.2db(APC) |
| ReturnLoss | >50db(PC) ,>55db(APC) |
| Bare fiber strength | >5N |
| Clad strength | >10N |
| Tension | >50N |
| Tensile strength | (20N)IL≤2dBRL≤5dB |
| Mechanical durability(500times) | IL≤2dBRL≤5dB |
| Operating Temperature | -5°C ~ +70°C |
| Storage Temperature | -40° C ~ +85° C |
