LGX Modular FTTH Products

FTTH Products 1x16 Cassete Box LGX

fiber splitter distribution box rohs

Product Description

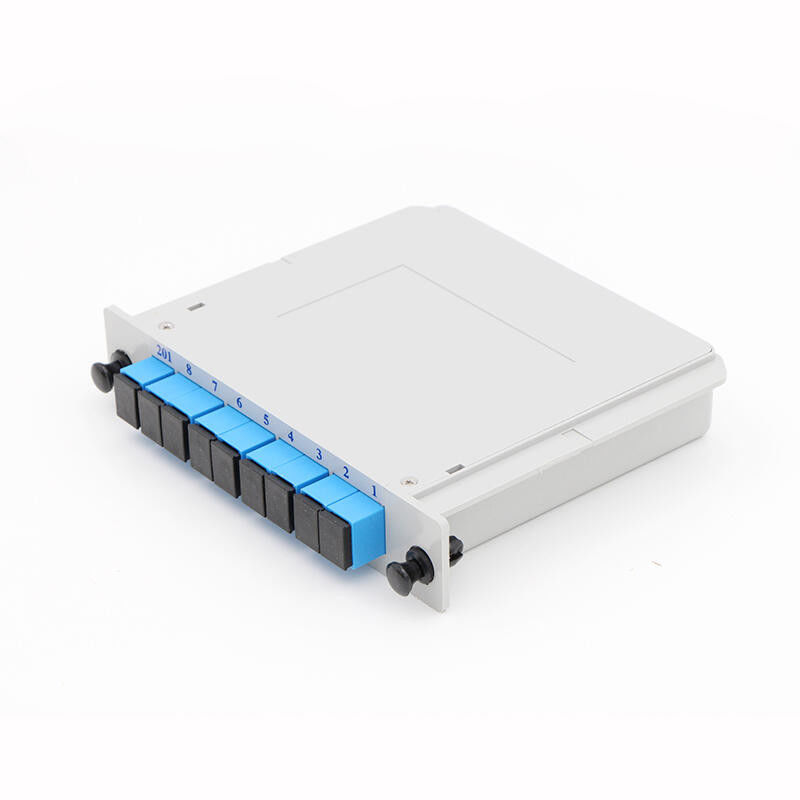

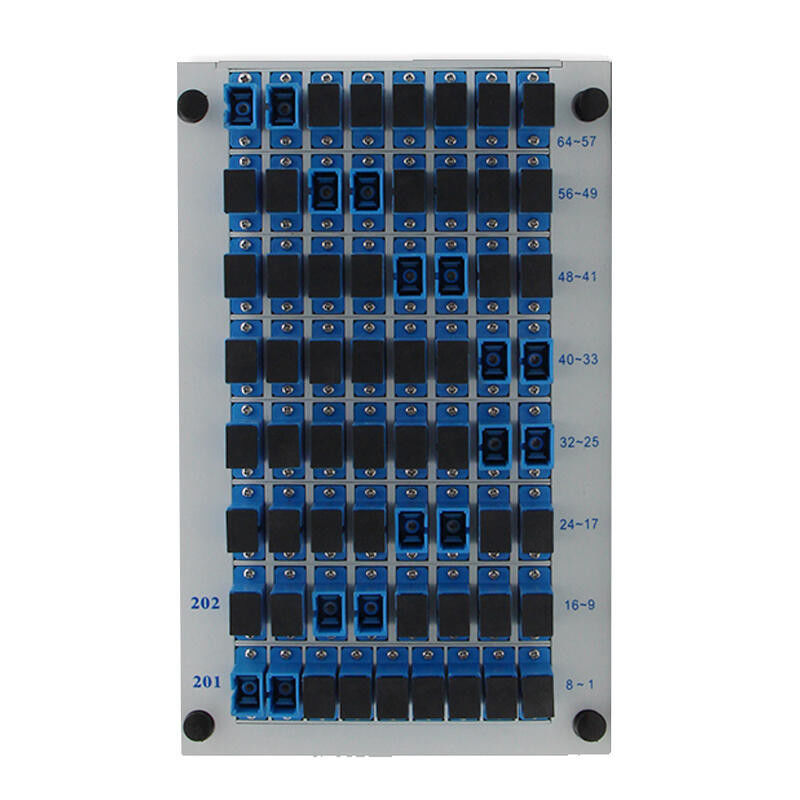

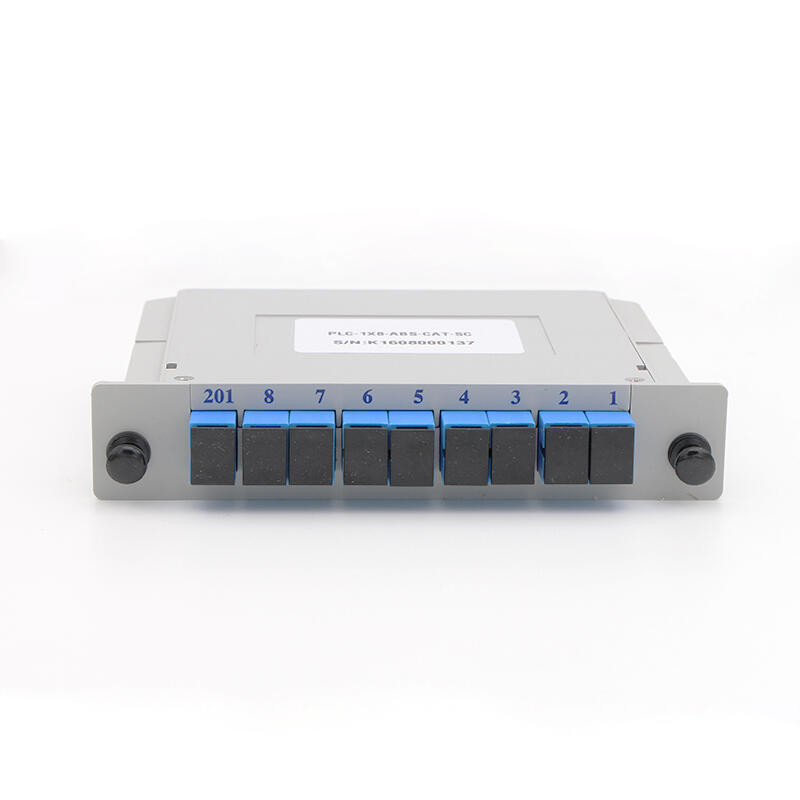

FTTH Fiber Optic PLC Splitter LGX Modular Cassete Box

Description

PLC (Planar Lightwave Circuit)/FTTH Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. Available split counts are: 1x4, 1x8, 1x16, and 1x32. PLC Splitters are availble with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.

Features

Low excess loss
Excellent directivity
Good channel-to-channel uniformity
Low PDL
High cost-effectiveness
High environmental and mechanical stability

Applications

Fiber optical communication system
Fiber optical sensors
CATV System
LAN WAN System

Specification

Wavelength(nm)	1260-1650
Parameters	1×4	1×8	1×16	1×32	1×64	2×4	2×8	2×16	2×32
Insertion Loss(with connector)(dB)	≤7.4	≤10.7	≤13.7	≤16.9	≤21	≤7.8	≤11.5	≤14.5	≤17.7
Insertion Loss(W/O connector)(dB)	≤7.7	≤11.2	≤14.2	≤17.5	≤21.5	≤8.3	≤12	≤15	≤18.2
Uniformity (dB)	≤0.8	≤1.0	≤1.4	≤1.9	≤2.7	≤1.7	≤1.7	≤2.2	≤2.7
PDL(dB)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.4	≤0.2	≤0.4	≤0.4	≤0.4
Return Loss(dB)	>50

Tag:

Place of Origin:	CHINA
Brand Name:	SKYLYNN or OEM, ODM
Certification:	ISO, ROHS, CE

Minimum Order Quantity:	10PCS
Packaging Details:	PP BAG, INNER BOX, OUTER BOX
Delivery Time:	2-7 DAYS
Payment Terms:	T/T, L/C, WEST UNION
Supply Ability:	800,000

LGX Modular FTTH Products 1x16 Cassete Box Fiber Splitter Distribution Box RoHS
