| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | GJYXFHA | Delivery: | FOB |
|---|---|---|---|
| High Light: | 7MM H Type FTTH Products GJXFHA,FTTH Products 60N 7MM,service drop cable 2 Fiber |
||
The fiber optic cable consists of a bundle of glass threads (fiber core), each of which is capable of transmitting messages modulated onto light waves. featured with the following advantages compared with traditional copper cable: Fiber optic cables have a much greater bandwidth to carry data than copper cables. Fiber optic cables are less susceptible than copper cables to interference. Fiber optic cables are much thinner and lighter than copper wires.
Choice of Fibre Type
Colour code of Fibre
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance

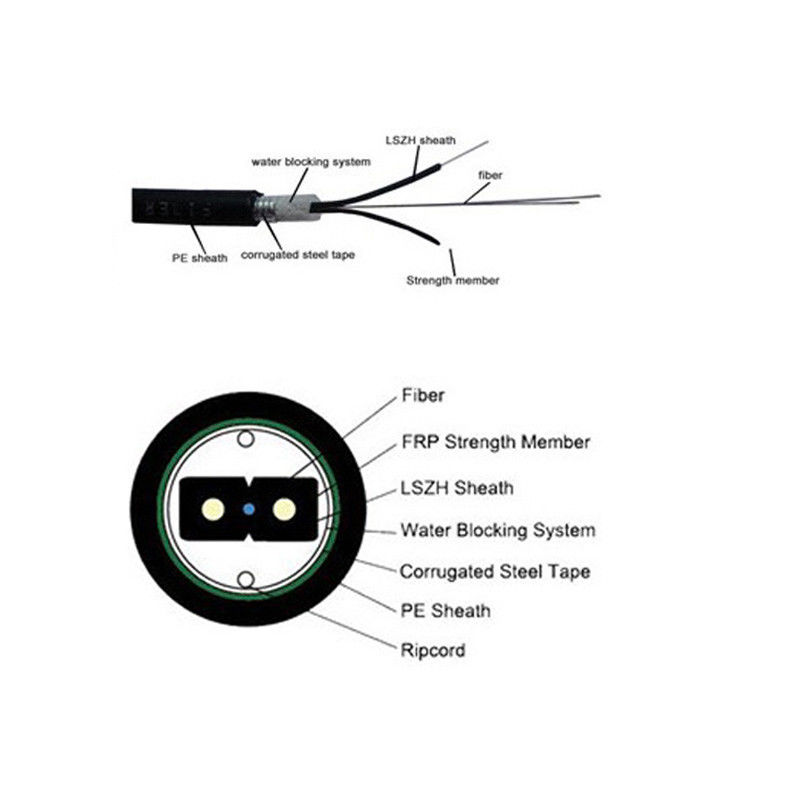

Aerial, Duct
Metalic strengthen member(phosphated steel wire)
Double coated PE Crrugated steel tape under PE sheath
| Cable Code | Fiber Count | Cable Size(mm) | Cable Weigh t(kg/km) | Tensile Strenth Long/Short Term(N) | Crush Resistance Long/Short Term(N/100mm) | Bending Radius Static Dinamic (mm) |
| GJXFHA-1 | 1 | 7 | 47 | 30/60 | 300/1000 | 15/30 |
| GJXFHA-2 | 2 | 7 | 47 | 30/60 | 300/1000 | 15/30 |
