| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | Fiber Optic Mechannical Splicer | Delivery: | FOB |
|---|---|---|---|
| High Light: | 125um fiber optic mechanical splice,ftth fiber optic mechanical splice,fiber optic splicing machine 0.15db |
||

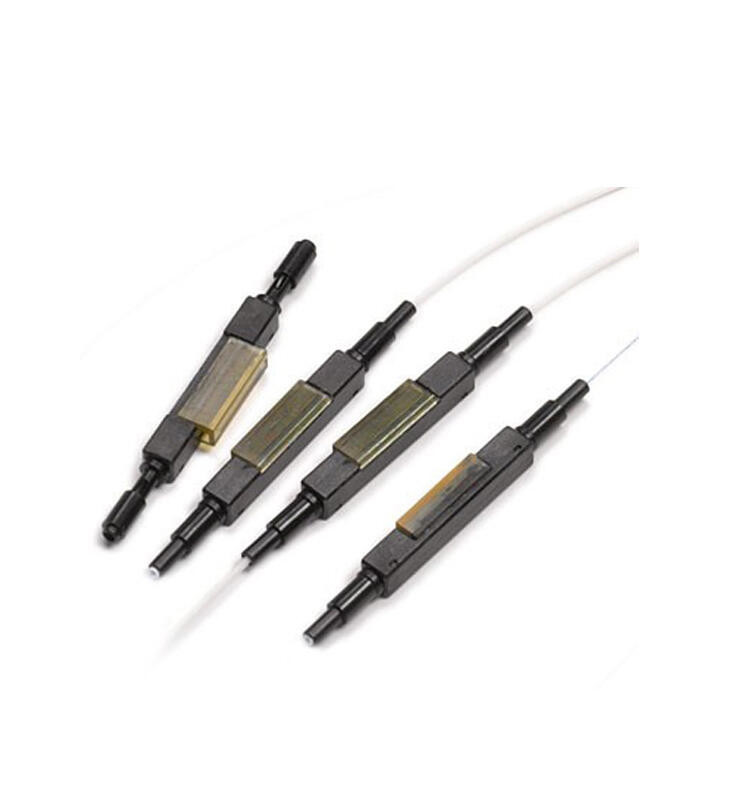

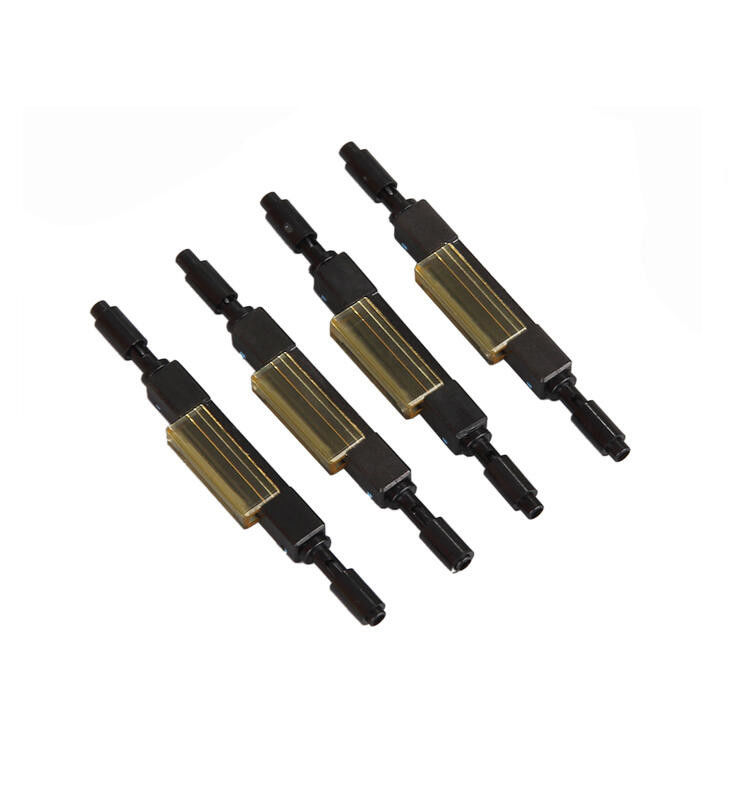

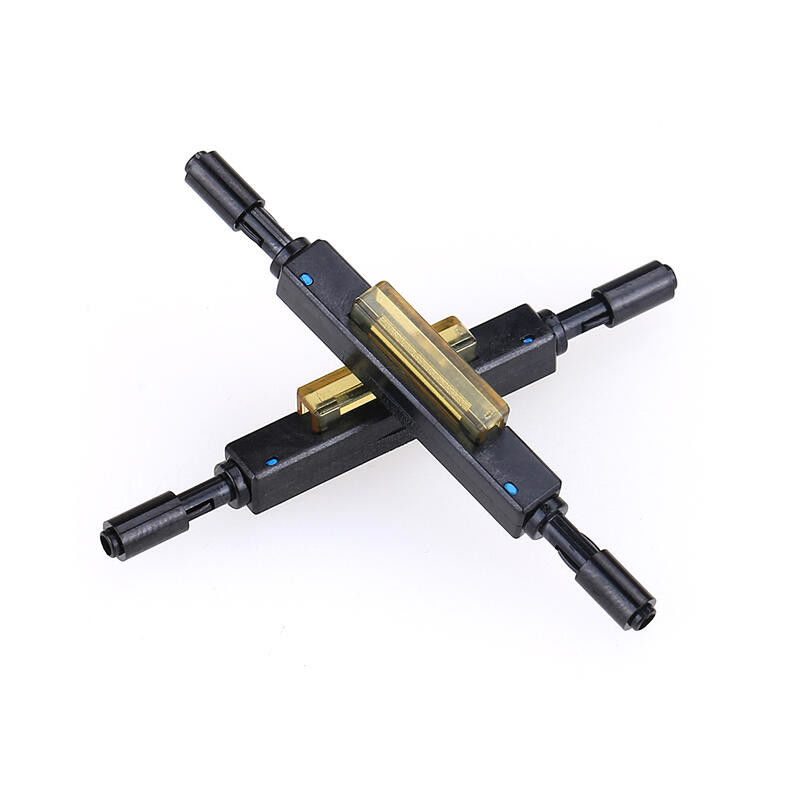

The fiber optic mechanical splicer is applicated for It is suitable for single-mode and multi-mode. And it is suitable for any combination of 0.25mm optical fiber and 0.9mm optical fiber. The operation is simple and quick, no fixture tools are required, and the required time is short. It does not rely on the flatness of the fiber end face cutting, which greatly reduces the requirements for the proficiency of the operator.
| Color | Black |
| Material | Plastic |
| Applicable scope | 0.25 mm and 0.90 mm optical fiber |
| Fiber diameter | 125um (657A and 657B) |
| Tight cladding diameter | 250um and 900pm |
| Applicable mode | single-mode and multi-mode |
| Operating time | about 10s (without fiber processing) |
| Insertion loss | ≤0.15dB |
| Return loss | ≤-50dB |
| Class fiber tightening force | >5 N |
| Tight-pack fixing force | >8 N |
| Operating temperature | -40~ +75℃ |
| Repeated use (10 times) | IL≤0.2dB RL≤5dB |
| Size | About 5cm/1.97inch(L) |
