| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | LC/UPC Fast Connector | Delivery: | FOB |
|---|---|---|---|
| High Light: | 50dB FTTH Products fiber quick connector FTTX,FTTH Products 50dB,LC fast sc connector rohs |
||

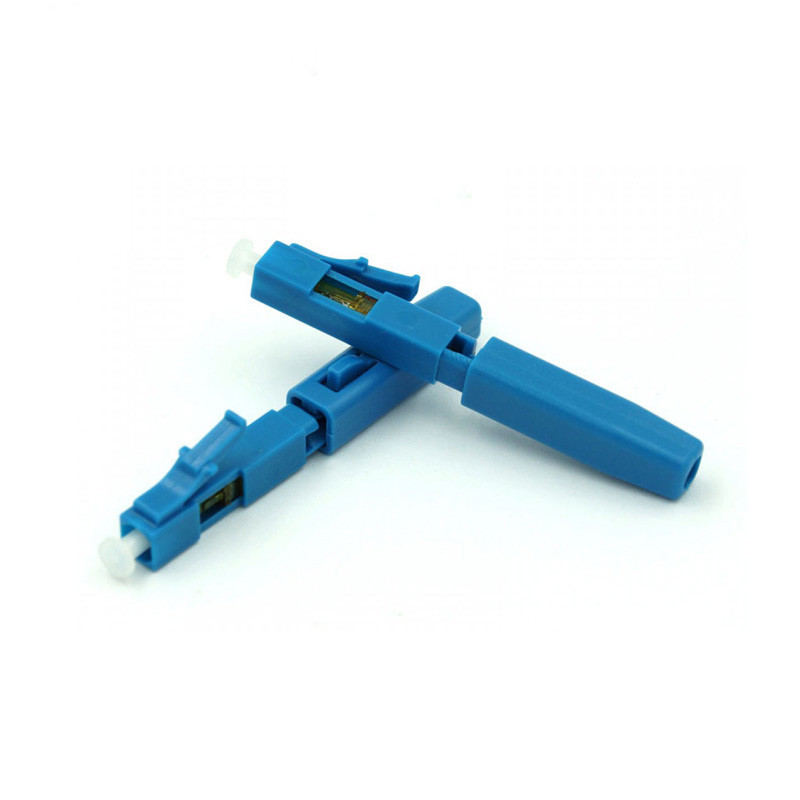

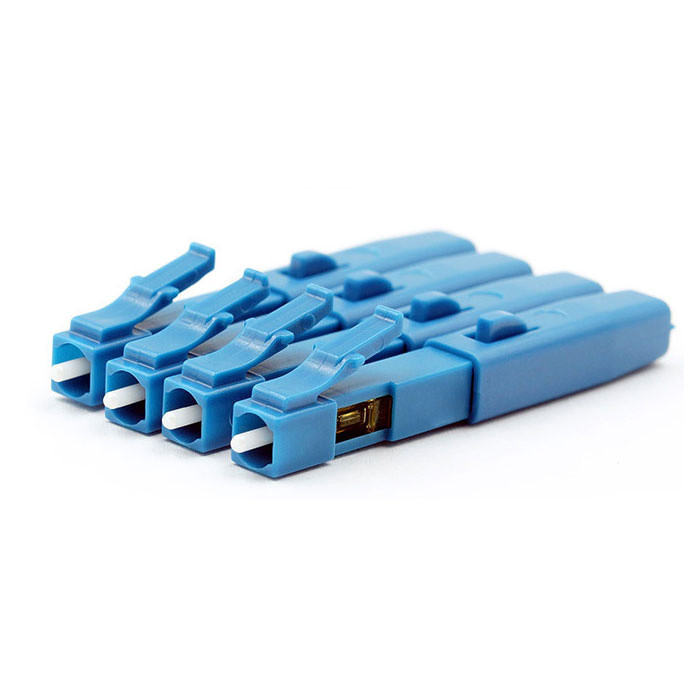

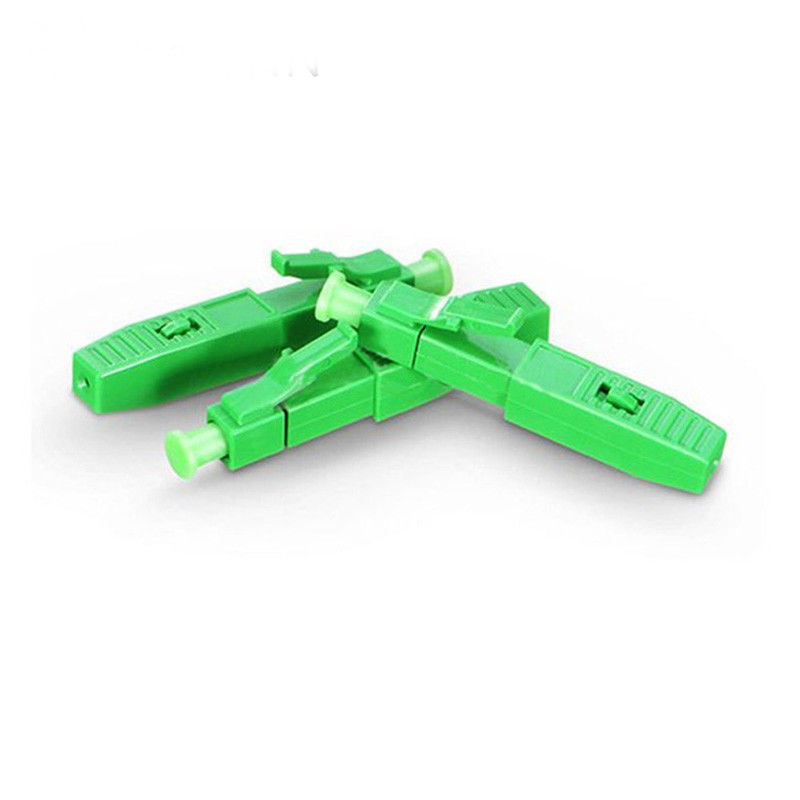

LC fast Connectors are factory pre-polished and field installable connectors so that completely eliminate the need for hand polishing in the field. The fast connector has easy assembly and excellent stability features without further processing, such as In addition, it can be reduced the defect rate dramatically by worker’s connection error. Due to being able to polishing, adhesives to facilitate the termination of the fiber in the field and working hard to secure space environment alone can access for assembling.
No special assembling tool
Easy for assembling with mechanical splice and no polishing
Easy for learning technology by a simple assembling method (within 1 and half minutes)
Minimize the defect rate by features of removal and reusable.
Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTx) applications
Repair/replacement requirements
Equipment test leads
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB | ≤0.25dB | |
| Maximum ≤0.3dB | |||
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | >10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
