| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | SC Fast Connector Type 3 | Delivery: | FOB |
|---|---|---|---|
| Operating Temperature: | -40℃ To +75℃ | Singlemode - APC: | Aerage: 0.2dB, Maximum: 0.6dB |
| High Light: | 0.2DB FTTH Products,0.5DB FTTH Products,fast connector sc upc OM1 OM2 |
||

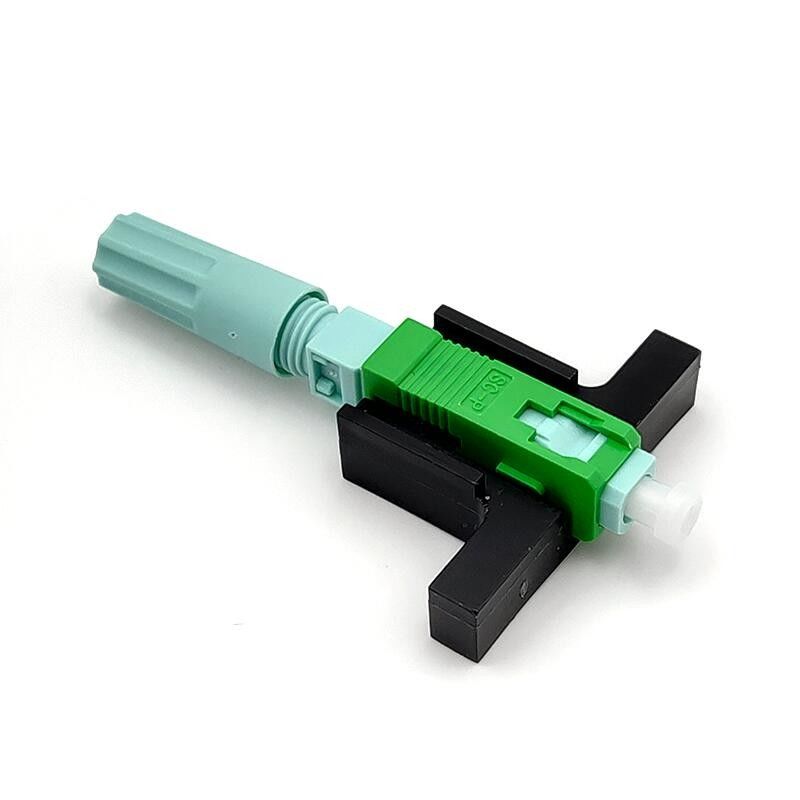

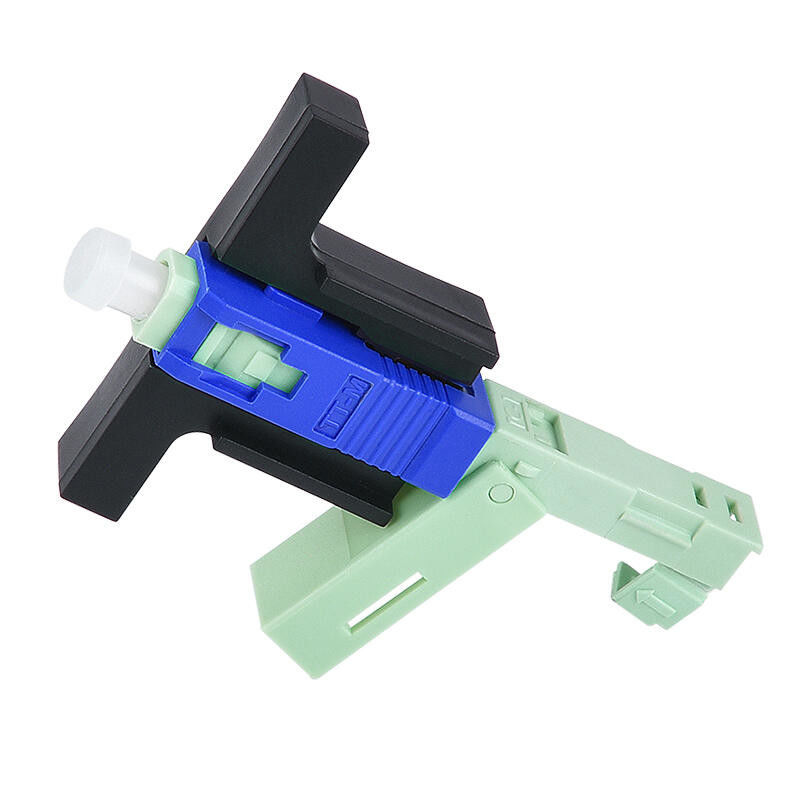

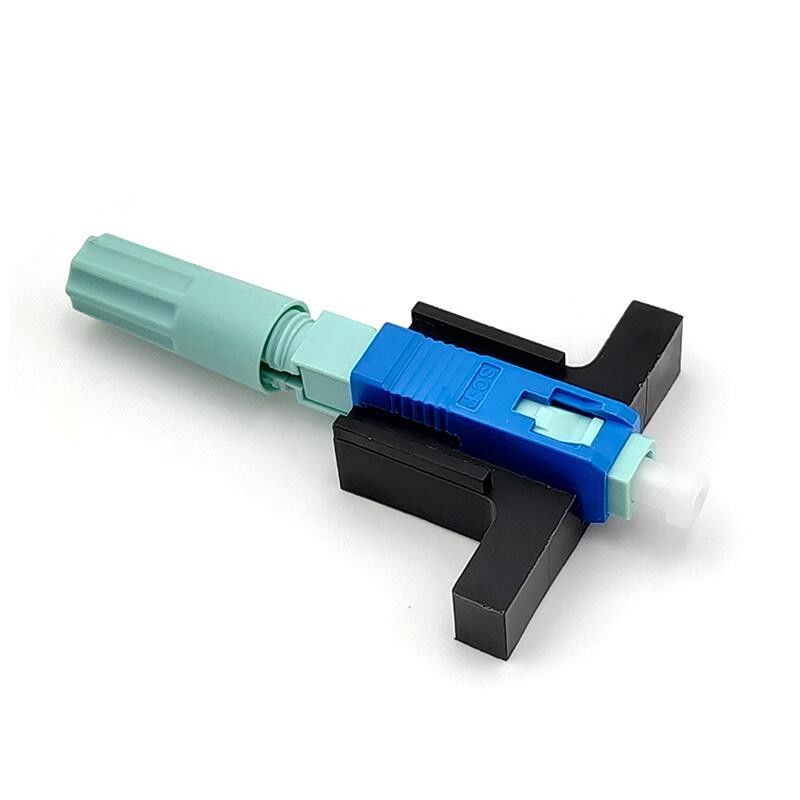

Cheap Field Assembly FTTH SC/APC Fiber Optical Fast Connector
Description
The fiber optic fast Connectors are factory pre polished and field installable connectors.So it completely eliminate the need for hand polishing in the field.The fast connector has easy assembly and excellent stability features without further processing. Such as polishing and adhesives to facilitate the termination of the fiber in the field and working hard to secure space environment alone can access for assembling like pole, manholes.
Features
No special assembling tool
Easy for assembling with mechanical splice and no polishing
Easy for learning technology by a simple assembling method (within 1 and half minutes)
Minimize the defect rate by features of removal and reusable.
Applications
Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTx) applications
Repair/replacement requirements
Equipment test leads
Spcification
|
Singlemode - UPC |
Aerage: 0.2dB, Maximum: 0.5dB |
|
Singlemode - APC |
Aerage: 0.2dB, Maximum: 0.6dB |
|
Multimode - PC |
Aerage: 0.2dB, Maximum: 0.5dB |
|
Singlemode - UPC |
Aerage: 40dB, Maximum: 40dB |
|
Singlemode - APC |
Aerage: 45dB, Maximum: 40dB |
|
Multimode - PC |
Aerage: 25dB, Maximum: 20dB |
|
Operating temperature |
-40℃ to +75℃ |
|
Housing Color |
Singlemode - UPC |
|
Singlemode - APC |
Green |
|
Multimode - OM1/OM2 |
Beige |
|
Multimode - OM3/OM4 |
Aq |
