| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Price: | USD 19.80-35.80 / piece |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | 3U MPO Modular Chassis | Delivery: | FOB |
|---|---|---|---|
| Minimum Order Quantity: | 1 Piece | Country Of Origin: | Shenzhen |
| Highlight: | 72F 3U MTP MPO Cables,72F MTP MPO Cables Modular Chassis,fiber access terminal box 72F |
||

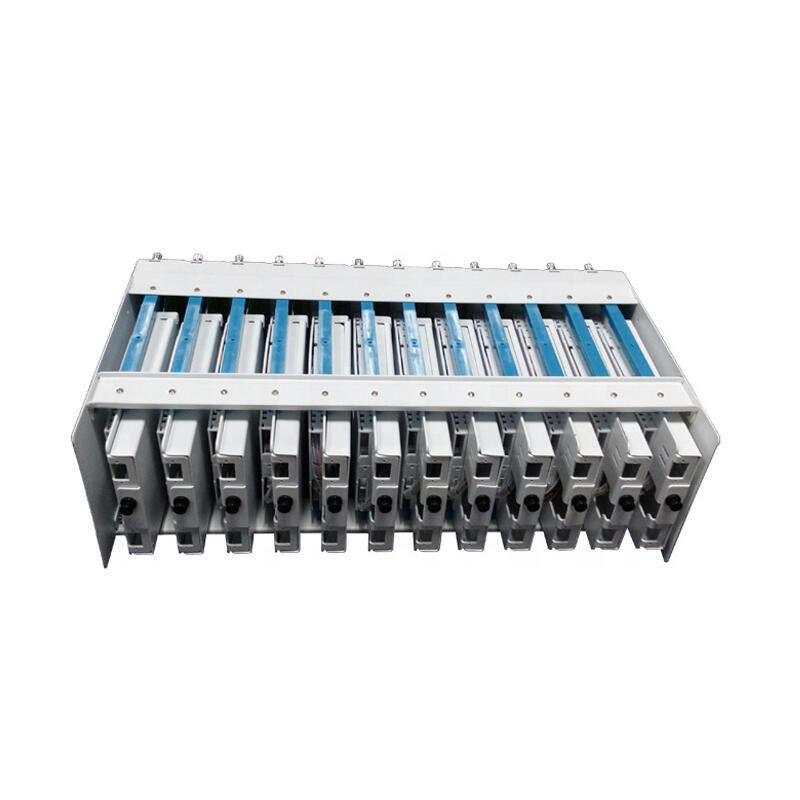

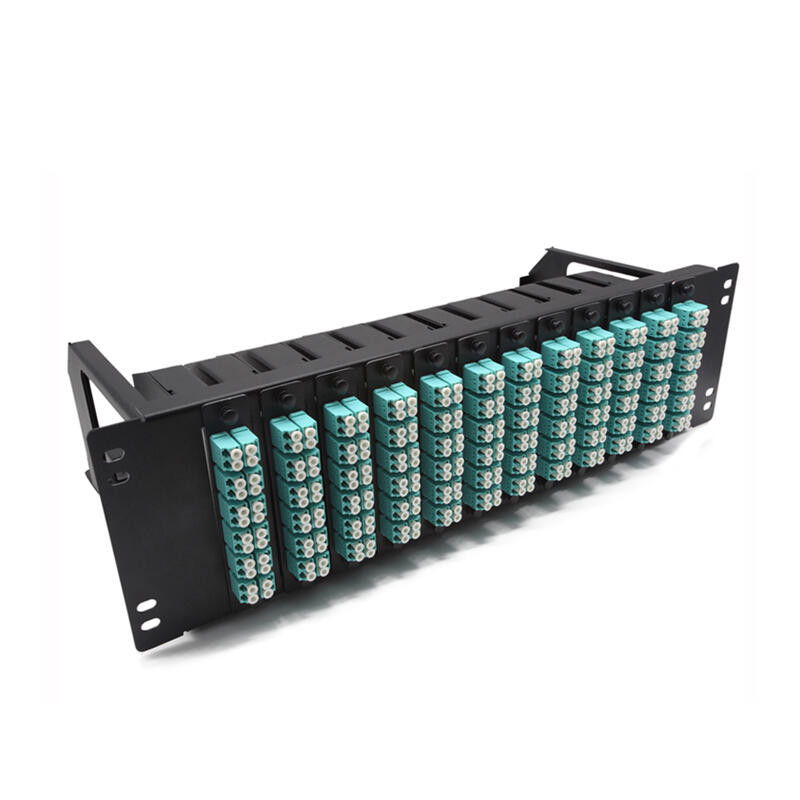

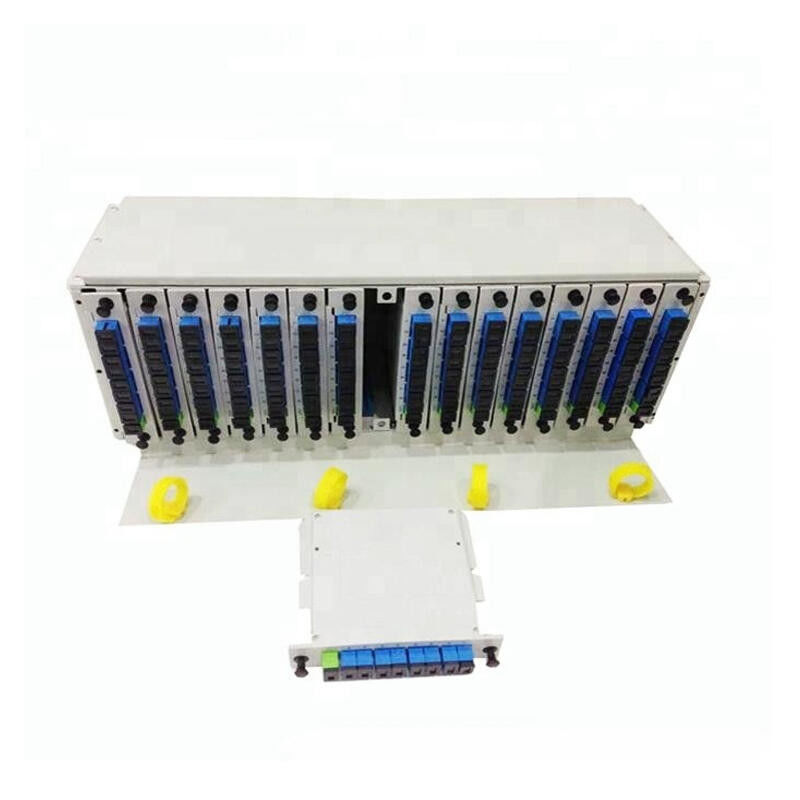

High Density Chassis is scalable and modular and is designed for high density Gigabit Ethernet Applications. This Fiber Chassis is 3U in height, rack mountable and can accommodate 14 LGX assemblies an offers a maximum of 336 cores termination
Application
Fiber optic distribution is a user friendly optical fiber patch system with conventional couplings.
The application of such a system is in rooms where maximum flexibility is required (typically in computer centre,sub network).
19"Sub rack of 1HU for up to 3 compact plug in modules with max 36/72 fibers .
19"Sub rack of 3HU+1HU with an integrated over length tray of 1HU with cable routing of max 144/288 fibers
Features
Chassis Specification
|
Model |
Dimension |
Adapter capacity |
Max PLC splitter quantity |
Material |
Color |
LGX size |
|
LGX-1U |
430*250*130mm |
144pcs SC |
16 pcs x 1:8 splitter (LGX slot) |
Cold rolled steel |
white |
130*100*25mm |
