| Model Number: | Singlemode | Application: | Telecommunication |
|---|---|---|---|
| Insertion Loss: | 0.2 (max 0.3) | 850nm/1310nm/1550nm: | 850nm/1310nm/1550nm |
| High Light: | 1km patch cord tester,1km SM SC APC patch cord tester,otdr fiber launch box 1550nm 1F |
||

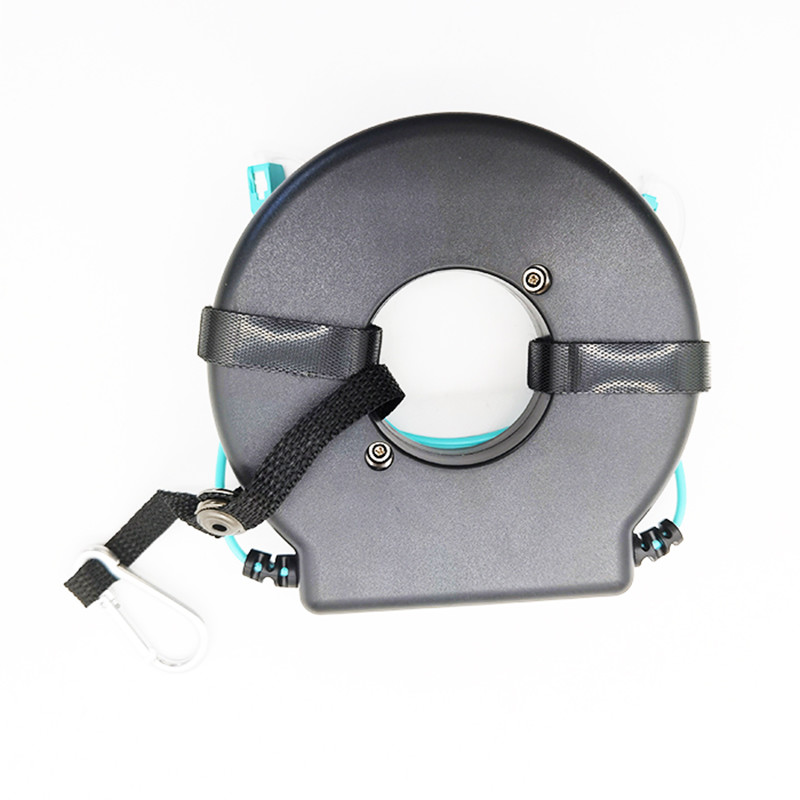

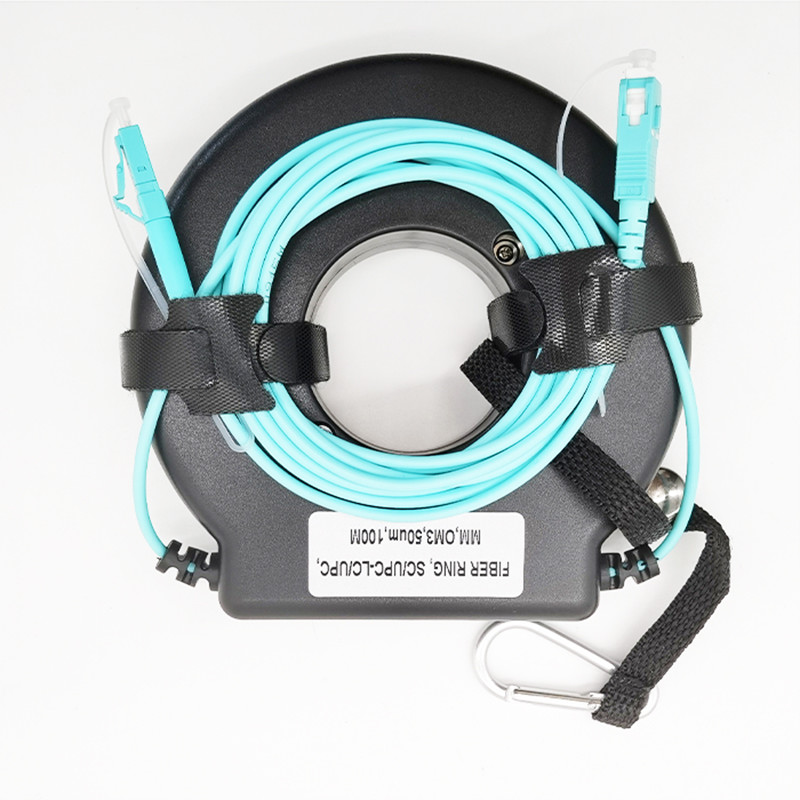

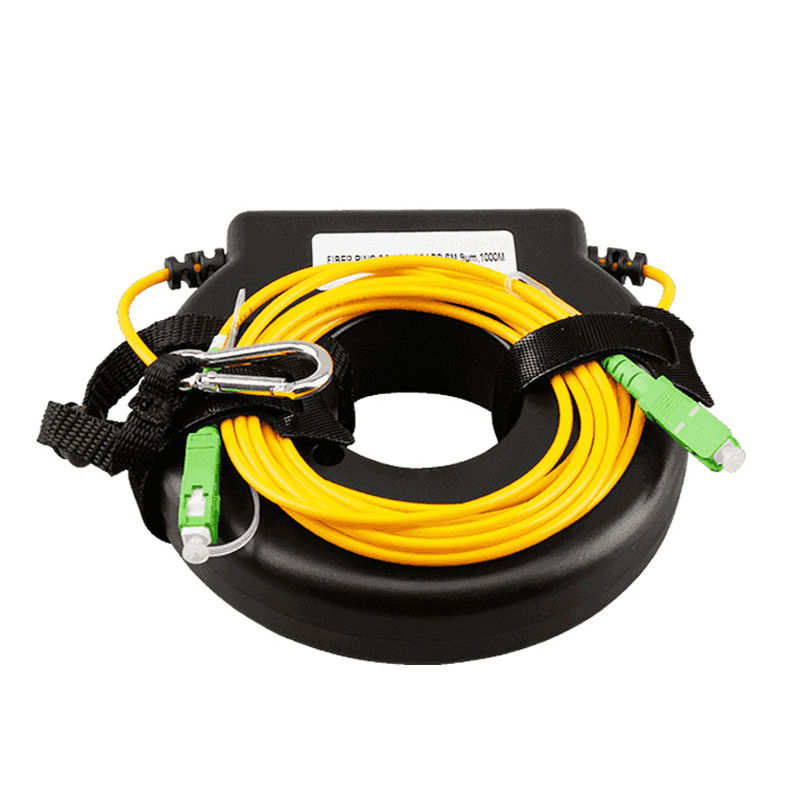

Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty.
Available in many different configurations and fiber lengths.
|
Dimensions(mm)
|
Diameter 6.25 ", Height 1.25"
|
|
Fiber Length(m)
|
100 to 1000
|
|
Fiber Types
|
Singlemode 9/125, Multimode 62.5/125, 50/125 OM2, 50/125 OM3
|
|
Lead Length
|
2 Meters, 3mm buffer
|
|
Insertion Loss
|
<0.3dB/km typical, <0.5dB/km max
|
|
Back Reflection (RL):
|
UPC: <-50dB, APC: <-60dB
|
|
Mating Reliability
|
<.2dB
|
|
Storage Temp.
|
-40° to +85° C
|
|
Humidity
|
0 to 95%, non-condensing
|
|
Weight
|
5 oz.
|
<
| Model Number: | Singlemode |
| Application: | Telecommunication |
| Insertion Loss: | 0.2 (max 0.3) |
| Wavelength: | 850nm/1310nm/1550nm |
| No. of Fiber: | 1 |
| Type: | Testers &Tools, Singmode or multimode |
