| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | GJYXFHA | Delivery: | FOB |
|---|---|---|---|
| High Light: | 7MM H Type FTTH Optical Fiber Cable,FTTH Optical Fiber Cable GJXFHA,fiber patch cables 2F 7MM |
||
H Type FTTH Duct Drop Cable GJXFHA
Description

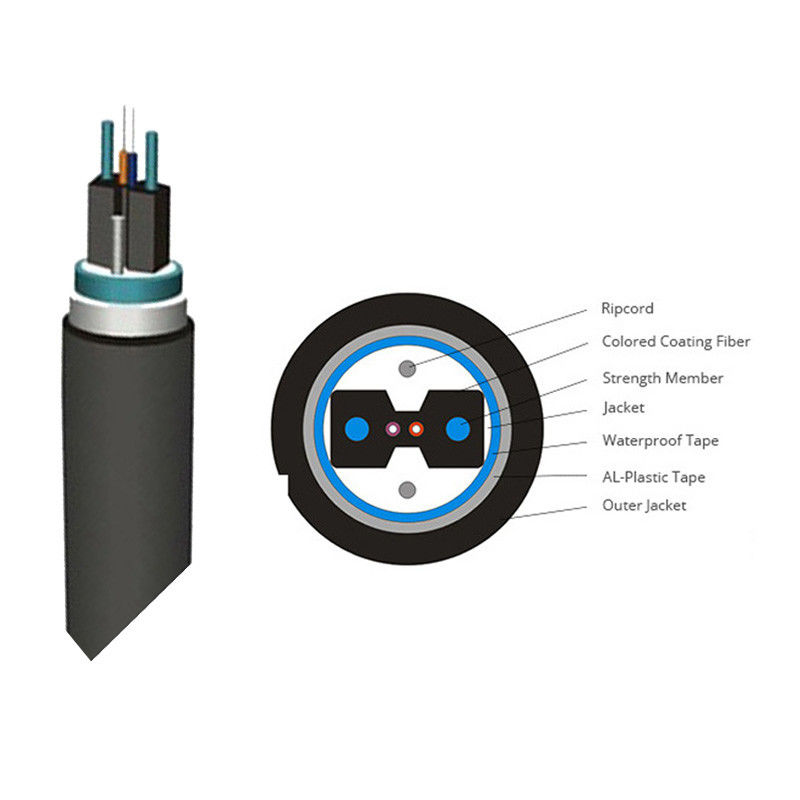

This drop cable is designed for duct installation in FTTH project connecting. The optical fiber unit is positioned in the center. 2 parallel strength members are placed at two sides. The cable is with a jacket to become FTTH Drop Cable. Then FTTH Drop Cable is completed with waterproof tape, AL-plastic tape and outer jacket.
Features
Choice of Fibre Type
Colour code of Fibre
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance
Appicable fieds
Aerial, Duct

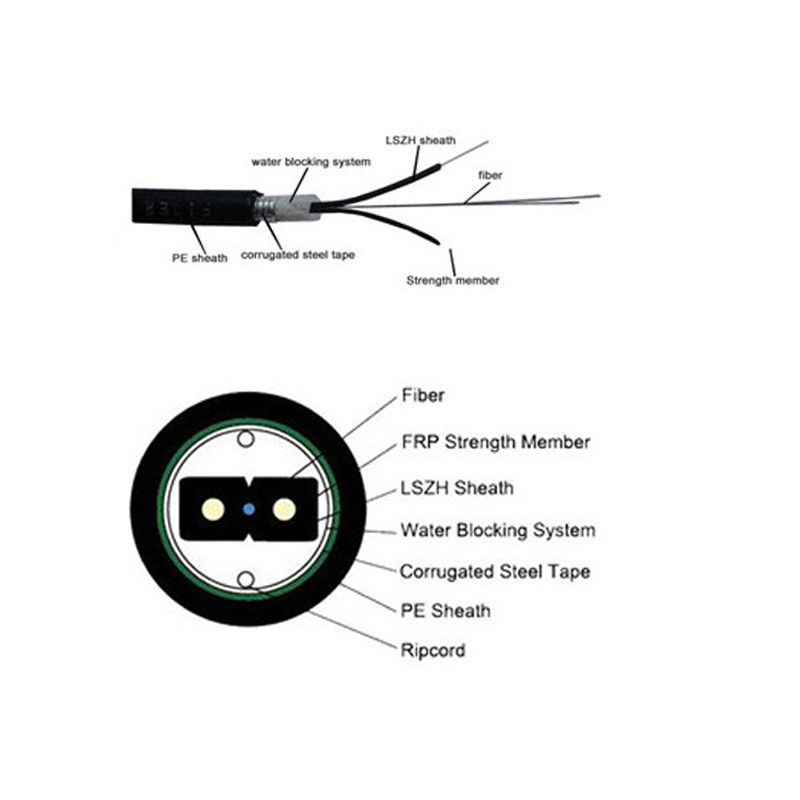

Structure Characters
Metalic strengthen member(phosphated steel wire)
Double coated PE Crrugated steel tape under PE sheath
|
Cable code |
Fiber Count |
Cable Size (mm) |
Cable Weight(kg/km) |
Tensile Strenth Long/Short Term(N) |
Crush Resistance Long/Short Term(N/100mm) |
Bending Radius Static Dynamic (mm) |
|
GJXFHA-1 |
1 |
7 |
47 |
30/60 |
300/1000 |
15/30 |
|
GJXFHA-2 |
2 |
7 |
47 |
30/60 |
300/1000 |
15/30 |
