| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | FTTH GJYFJH | OD(mm): | 4.5±/0.2 |
|---|---|---|---|
| High Light: | FTTH Round adss fiber optic cable,adss fiber optic cable 4.6mm,pulling fiber optic cable 6.0mm GJYFJH |
||

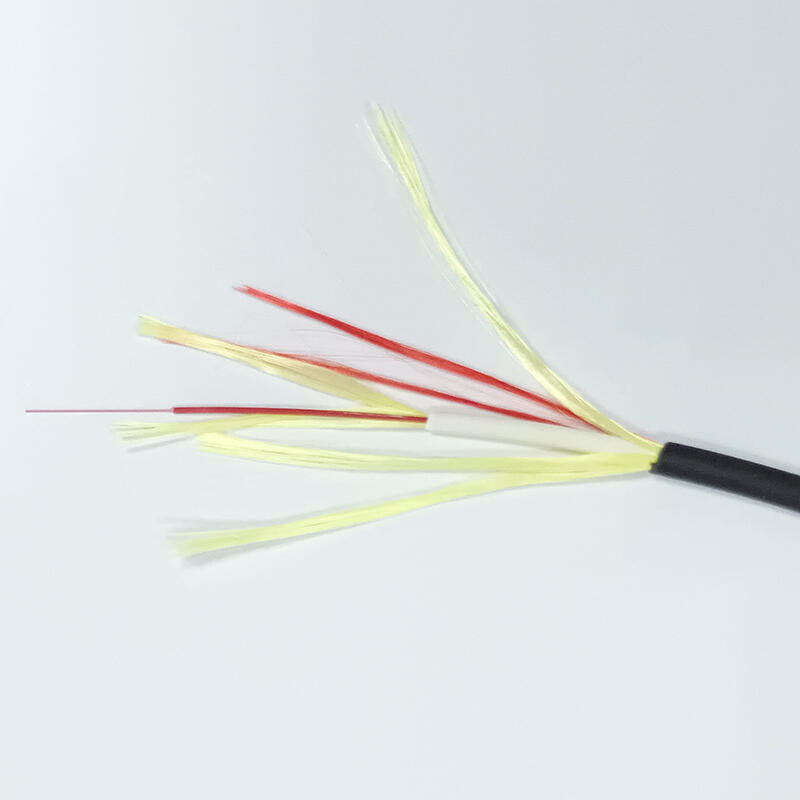

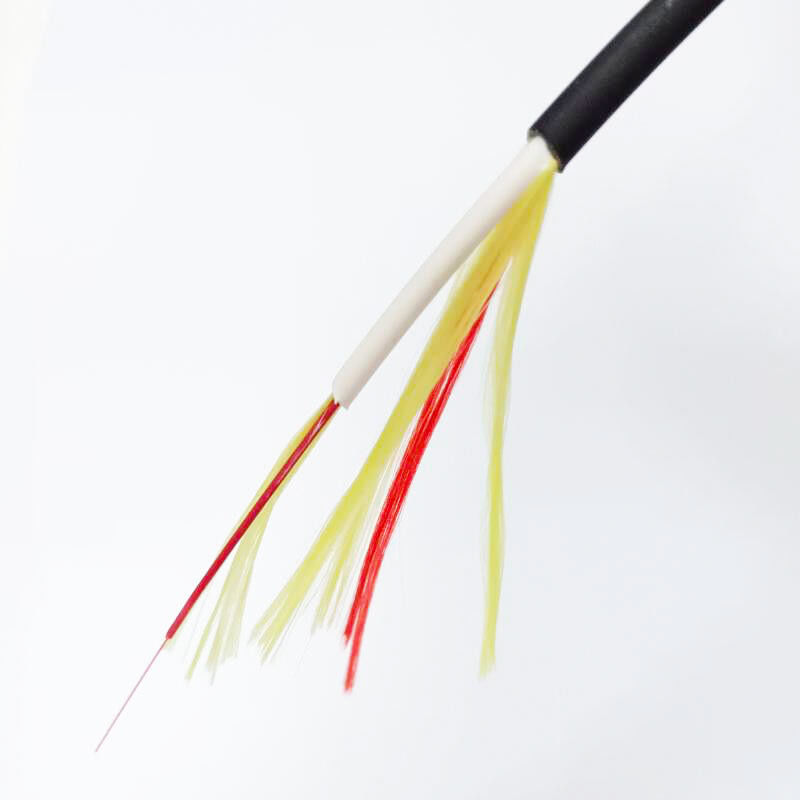

FTTH Round Cable Double Sheath for Outdoor/Indoor Use 4.6mm
Description
When entering a building, the outer sheath of the cable is simply removed to expose the inner flame retardant Jacket. The operation is swift and enables easy installation from an outdoor environment to an indoor environment without the need of two different cables and a cable joint.
The drop cable is primarily intended for direct installation, i.e. installation with staples or clips or routing inside cable raceways and mouldings. This installation technique puts extra tough requirements on the cables in terms of bend performance, crush resistance and other mechanical pa- rameters.
The LSZH Dual Jacket Cable is a fibre optic drop cable for indoor/outdoor FTTx applications. The unique dual jacket design enables the cable to be installed outdoors as well as short sections indoors. The cable has dual Low Smoke flame retardant sheaths, the outer is a UV-resistant black variant.
The drop cable has extremely good bend performance due to the G657 fibre and the inbuilt bend restriction of the cable design. The cable will by itself control the minimum bend radius and permit kinking.
Cable Characteristics
Small outer diameter,lightweight,flame-retardant,easy to strip,low attenuation,physically soft
Direct splicing between tight buffer cables and need no tie-in box or pigtail
Suitable for installation,operation,and convenient for maintenance
Applications
As building to building connecting cable
As indoor soft cable along the wall,ceiling,between layers and in conduits
As pigtails,movable connectors and patch cords for communication equipment

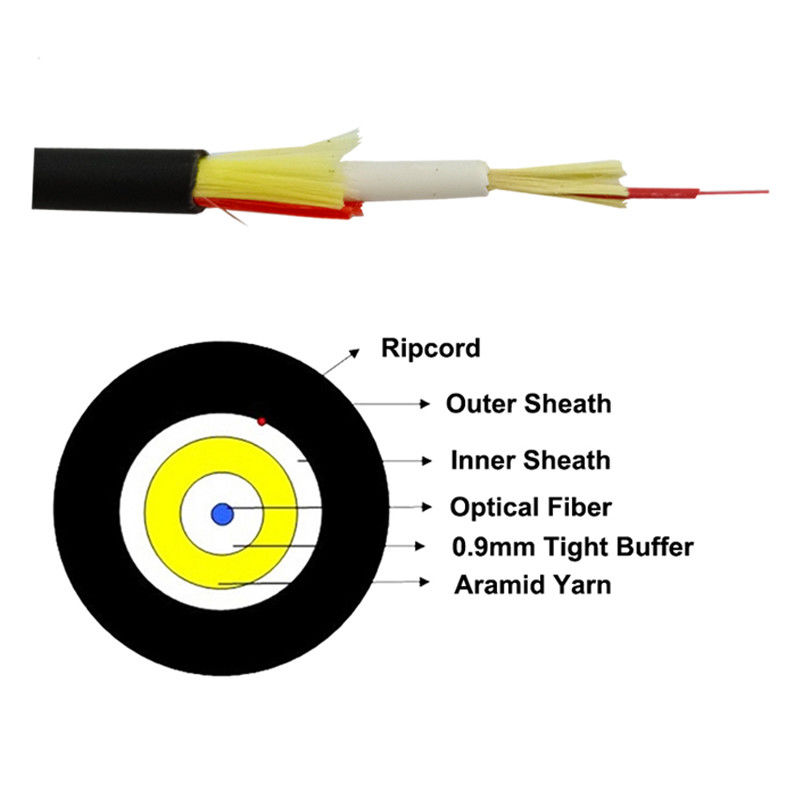

Cable Technical Parameters
Fiber Count | 1 | |
OD(mm) | 4.5±/0.2 | |
Cable | Material | UV - LSZH |
Thickness(mm) | 0.9±0.1 |
|
OD(mm) | 3.0±0.1 |
|
Inner cable | Material | LSZH |
Thickness(mm) | 0.5±0.05 |
|
OD(mm) | 0.85±0.05 |
|
Buffer | Material | LSZH |
Nominal weigh t(kg/km) | 24 |
|
Max.tensile Strength(N) | Long-term | 120 |
Short-term | 240 |
|
Min.Bending Radius(mm) | Static | 10D |
Dynamic | 20D |
|
Max.Crush Resistance(N/100mm) | Long-term | 300 |
Short-term | 1000 |
|
Strength Members | Aramid yarn |
|
Environmental Protection | RoHS COMPLIANT |
|
Storage ortransportation | -20~70℃ |
|
Operation | -20~60℃ |
|
Temperature range | Installation | -20~60℃ |
Optical Characteristics G657A2
Characteristics | Conditions | Specified Values | Units |
Geometrical characteristics |
|
|
|
Cladding diameter | 125.0±0.7 | µm |
|
Cladding non-circularity | ≤0.7 | % |
|
Coating diameter | 245±5 | µm |
|
Coating/cladding concentricity error | ≤12 | µm |
|
Coating non-circularity | ≤6.0 | % |
|
Core/cladding concentricity error | ≤0.5 | µm |
|
Curl | ≥4 | m |
|
Optical characteristics | |||
1310nm | ≤0.35 | dB/km |
|
1383nm | ≤0.35 | dB/km |
|
1550nm | ≤0.21 | dB/km |
|
Attenuation | 1625nm | ≤0.23 | dB/km |
Attenuation vs. Wavelength | 1525~1575nm | ≤0.02 | MHz*km |
1285~1330nm | ≤0.03 | MHz*km |
|
Zero dispersion wavelength | 1300~1324 | nm |
|
Zero dispersion slope | ≤0.092 | ps/(nm2*km) |
|
Polarization mode dispersion |
|
|
|
PMD maximum individual fibre | ≤0.1 | ps/km1/2 |
|
PMD design link value | ≤0.06 | ps/km1/2 |
|
Typical force | 0.04 | ps/km1/2 |
|
Cable cut off wavelength | ≤1260 | nm |
|
Mode field diameter | 1550nm | 9.3~10.3 | µm |
1310nm | 8.4~9.3 | µm |
|
Group index of refraction | 1550nm | 1.467 |
|
1310nm | 1.466 |
|
|
Environmental characteristics | 1310nm, 1550nm&1625nm | ||
Temperature cycling | -60℃ to +85℃ | ≤0.05 | dB/km |
Temperature-humidity cycling | -10℃ to +85℃, | ≤0.05 | dB/km |
Water immersion | 23℃, 30 days | ≤0.05 | dB/km |
Dry heat | 85℃, 30 days | ≤0.05 | dB/km |
Damp heat | 85℃, 85%RH, 30 days | ≤0.05 | dB/km |
Mechanical specification | |||
Proof test | ≥9.0 | N | |
≥1.0 | % | ||
≥100 | kpsi | ||
Macro bending induced loss |
|
|
|
1Turns @5mm Radius | 1550nm | ≤0.15 | dB |
1Turns @5mm Radius | 1625mm | ≤0.45 | dB |
1Turns @7.5mm Radius | 1550nm | ≤0.08 | dB |
1Turns @7.5mm Radius | 1625mm | ≤0.25 | dB |
1Turns @10mm Radius | 1550nm | ≤0.03 | dB |
1Turns @10mm Radius | 1625mm | ≤0.10 | dB |
Coating strip force | Typical average force | 1.5 | N |
Peak force | ≥1.3 ≤8.9 | N |
|
Dynamic stress corrosion susceptibility parameter | 27 | ||
