| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM, CARTON |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | FTTH Outdoor Drop Cable | Delivery: | FOB |
|---|---|---|---|
| Minimum Order Quantity: | 1 Kilometer | Country Of Origin: | Shenzhen |
| High Light: | FTTH Optical Fiber Cable GJYFCH,FTTH Optical Fiber Cable GJYCH,underground fiber optic cable 0.5dB G657a1 |
||

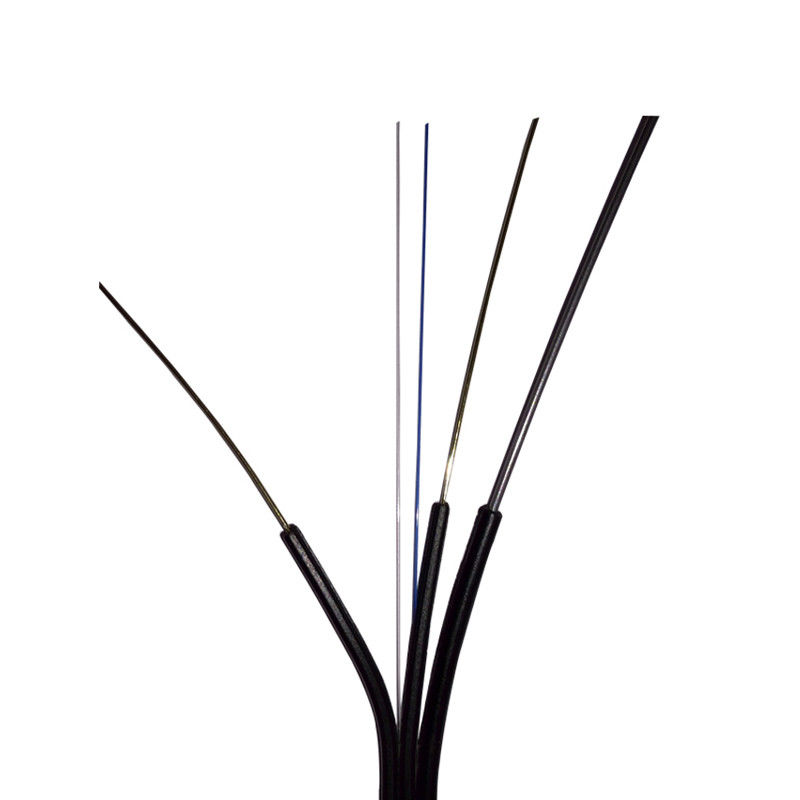

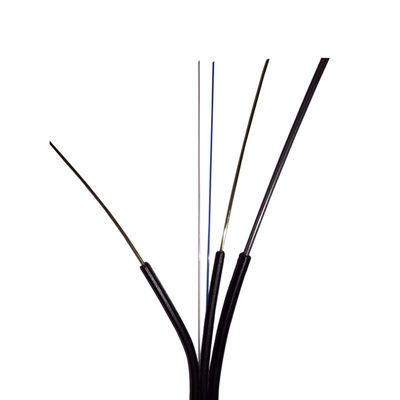

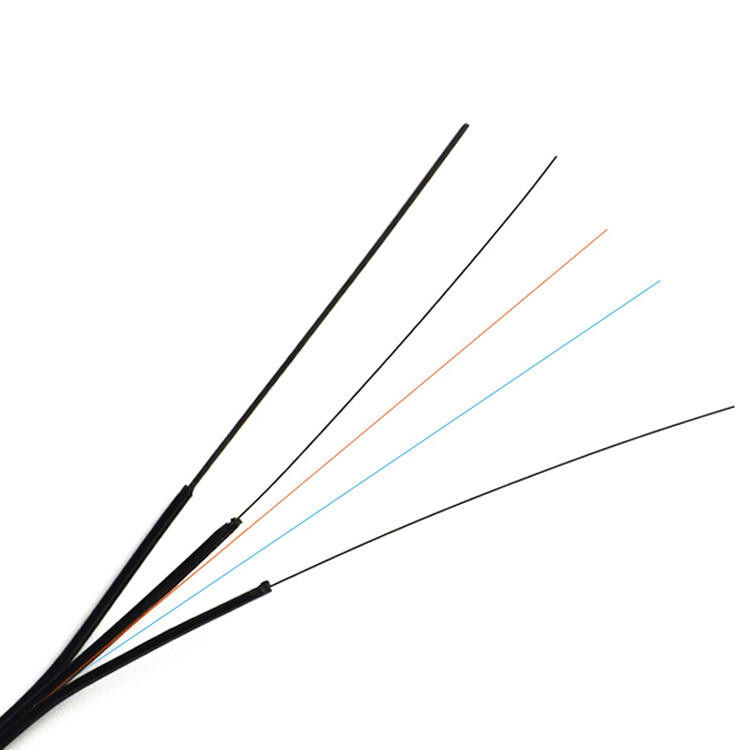

FTTH Outdoor Drop Cable GJYFCH/GJYCH
Description
FTTH outdoor drop cable(GJYXFCH/GJYXCH) is also called self-supporting butterfly drop optical cable with a indoor butterfly cable and an additional strength member 1-12 fiber cores. Outdoor drop cable is for outdoor communication applications. LSZH sheath is extruded outside for application of fiber to the home.
Features
Applications
Specification

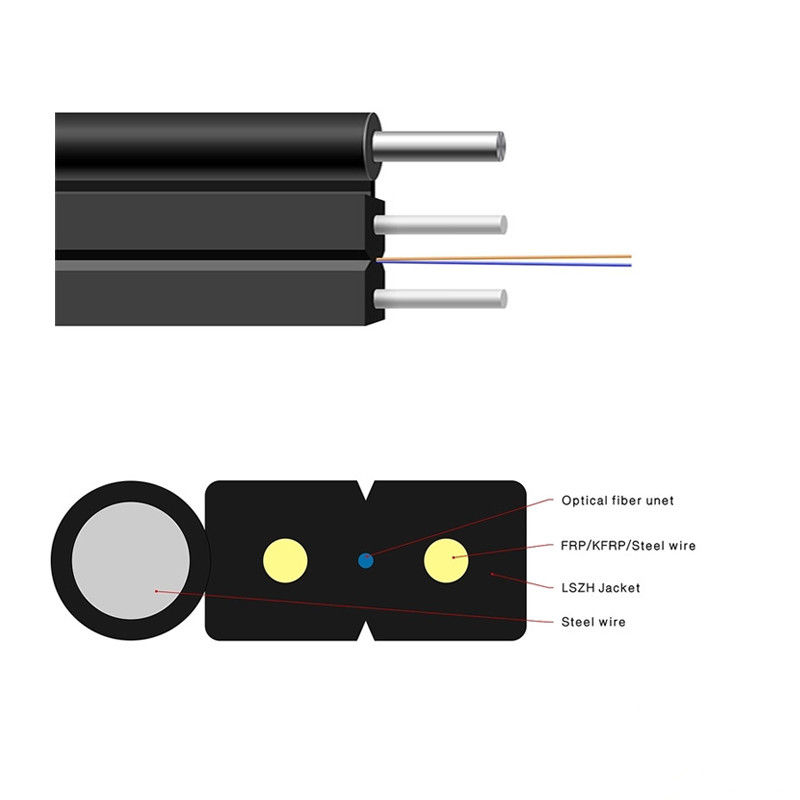

| Construction | |
| Jacket & Buffers | |
| Jacket Material | LSZH |
| Tight buffer fiber Diameter | 250μm ± 50μm |
| Strength Member | Steel Wire |
| Fiber Size | 9 / 125 micron |
| Buffer Diameters | |
| Primary Buffer | 250μm |
| Cladding | |
| diameter(μm) | 125±1.0 |
| Technical Data-Transmission | ||||||
| Fiber Type | G657A2 | |||||
| 1310nm / 1550nm | ||||||
| Attenuation | Typical | 0.36dB / 0.22dB | ||||
| Maximum | 0.5dB / 0.4dB | |||||
| Macro-bend induced attenuation(@1550nm) | 1turn, 15mm diameter | ≤0.5dB | ||||
| 1turn, 20mm diameter | ≤0.1dB | |||||
| 10turn, 30mm diameter | ≤0.03dB | |||||
| Zero Dispersion Slope | ps/km·nm2 | ≤0.092 ps/km·nm2 | ||||
| Mode field Diameter | μm | 8.8±0.4μm | ||||
| Cutoff wavelength cable | nm | ≤1260nm | ||||
FTTX Network Cabling Used
