| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | FOSC-8004M | Delivery: | FOB |
|---|---|---|---|
| Cable Diameter: | 8mm~16 Mm | Capacity: | 4-48 (cores) |
| High Light: | 8mm Sealing Optical Fiber Splice Closure,Optical Fiber Splice Closure 48 cores,electrical enclosure box FOSC |
||

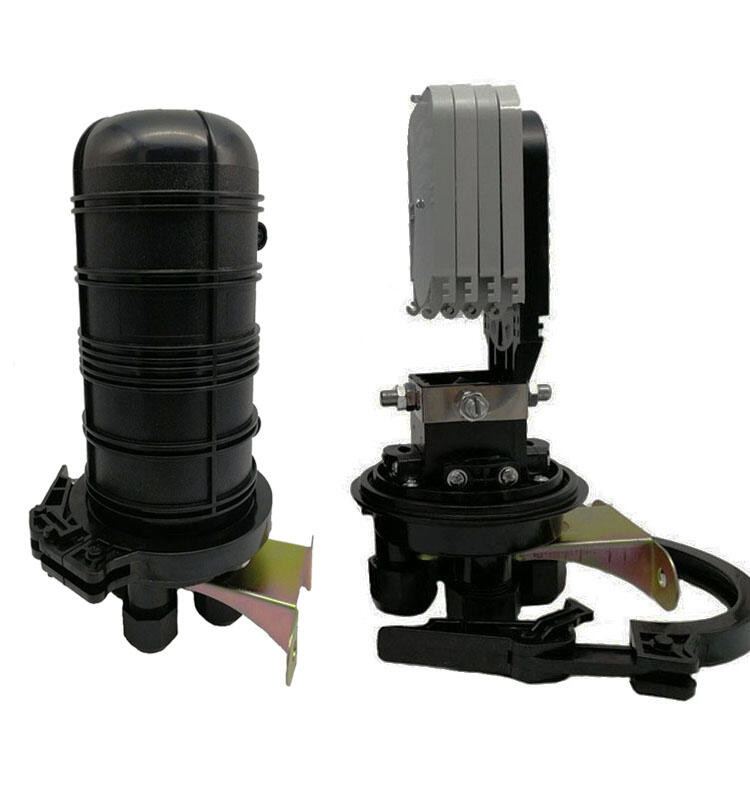

The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications. It can be placed in aerial, underground direct buried, wall mounted, manhole and duct applications.
Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic by numerical control equipment, therefore effectively preventing products from aging caused by coldness, heat, oxygen and ultraviolet radiation.
The strong housing and main components provide fire-resistant, water-proof, and quake-proof while protecting splices during pulling, tensioning and impacting.
It ensures long-term reliability and usage under ambient temperature from -40℃ to +80 ℃
Suitable for bunchy & ribbon fibers.
Aerial
Underground
Wall-mounting
Duct-mounting and handhole- mounting
Ambient temperature ranges from –40℃ to +65℃.
FEATURES
Advanced internal structure design
The closure is spacious enough for winding and storing fibers
Flip style fiber splice trays are designed
The curved radius meets with international standard
Easy and fast to increase and reduce splice tray
Innovative elastic integrated seal fitting
With the function of reuse and capacity expansion
Robust long-term environmental stability
Working temperature: –40℃ to +60 ℃
Atmospheric pressure: 70~106Kpa
Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.
High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.
Tensile strength: 1000N
Compressive strength: 2000N/10cm2 within 1 min
Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground
Dielectric strength: 15KV DC, 2min, without spark over and flying arc
Working life: more than 20 years
|
Outside dimension (Height x Diameter) |
288mm×178mm |
|
Weight (excluding outside box) |
1800g—1910g |
|

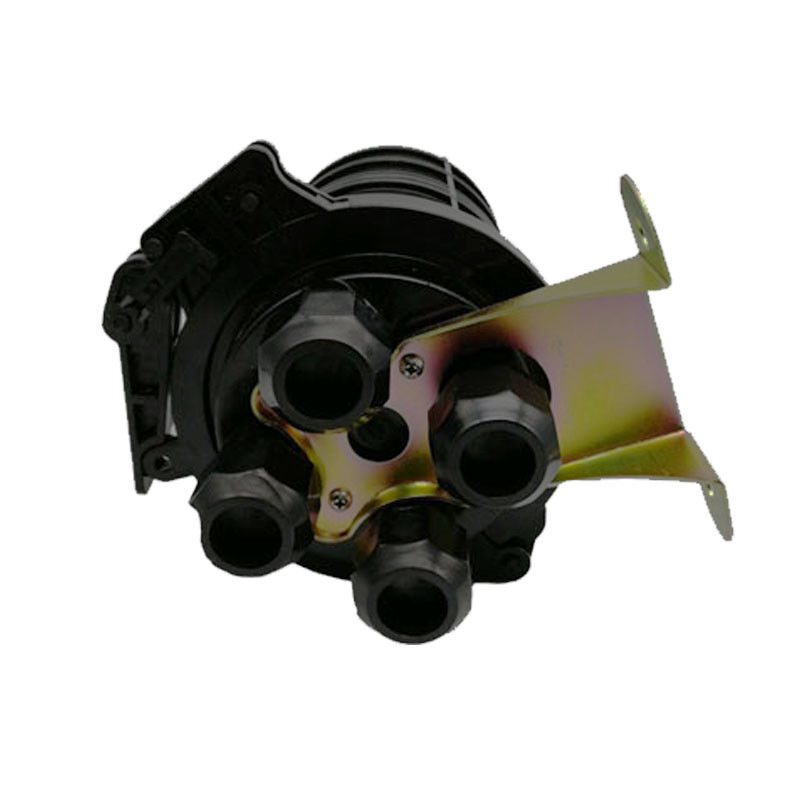

Number of inlet/outlet ports |
4 pieces |
|
Diameter of fiber cable |
8mm~16 mm |
|
Capacity of FOSC |
Bunchy: 4-48 (cores) |
|
No. |
Name of components |
Quantity |
Usage |
Remarks |
| 1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole |
Height x Diameter 208mm x 132mm |
| 2 |

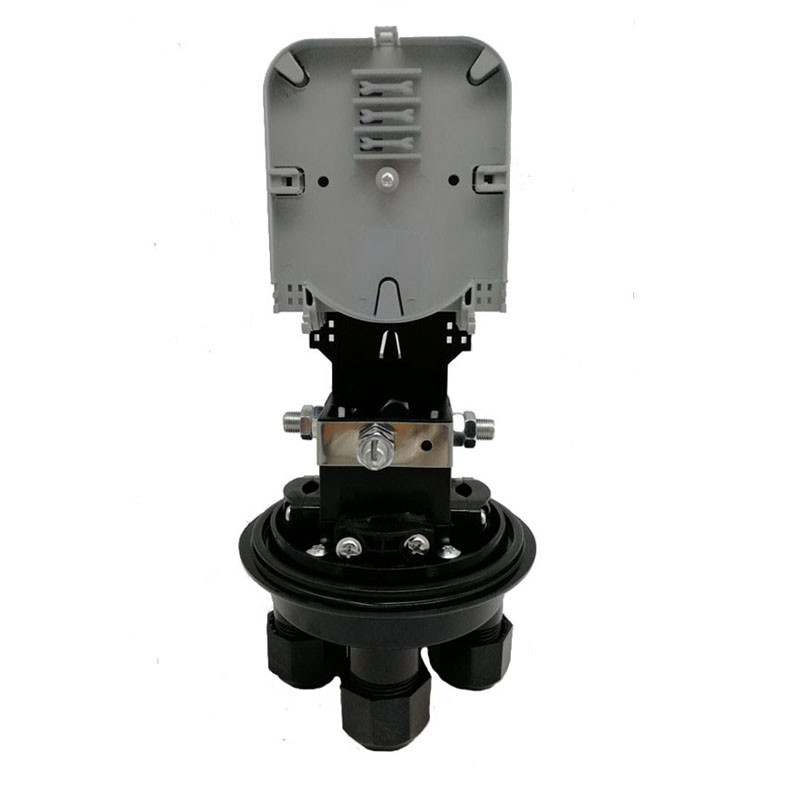

Fiber optic splice tray |
Max. 4 trays (bunchy) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:4,6,8,12,(cores) |
| 3 |
Fiber holding tray |
1 piece |
Holding fibers with protective coat |
|
| 4 |
Base |
1 set |
Fixing internal and external structure |
|
| 5 |
Plastic hoop |
1 set | Fixing between FOSC cover and base | |
| 6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
| 7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 8 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection |
Configuration as per requirement |
