| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | FOSC-5004 | Delivery: | FOB |
|---|---|---|---|
| Weight (excluding Outside Box): | 2250g—2310g | Capacity Of FOSC: | 24-144 (cores) |
| High Light: | 10mm external fibre splice enclosure,144 core external fibre splice enclosure,fiber optic connection box 72 CORE |
||

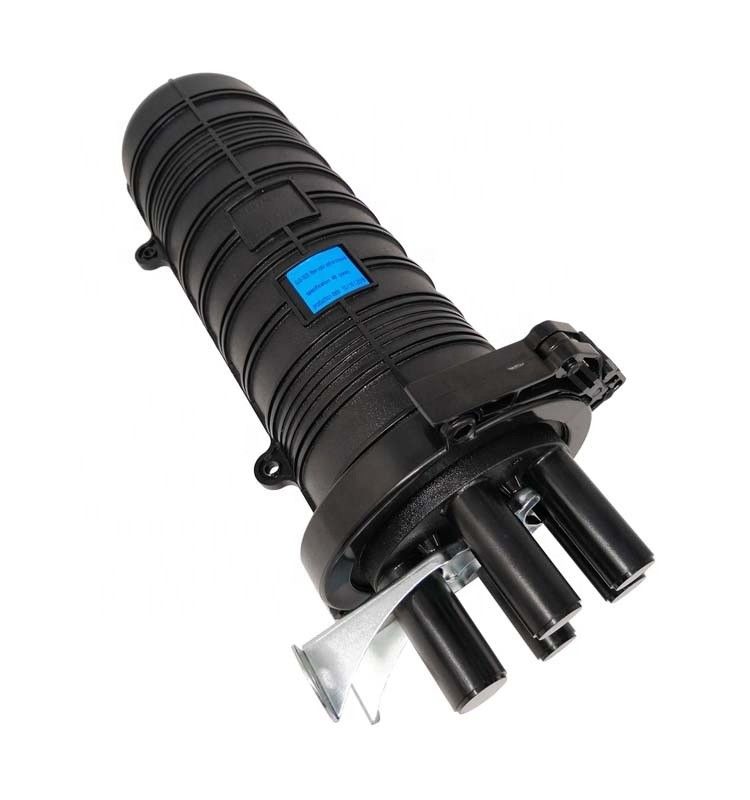

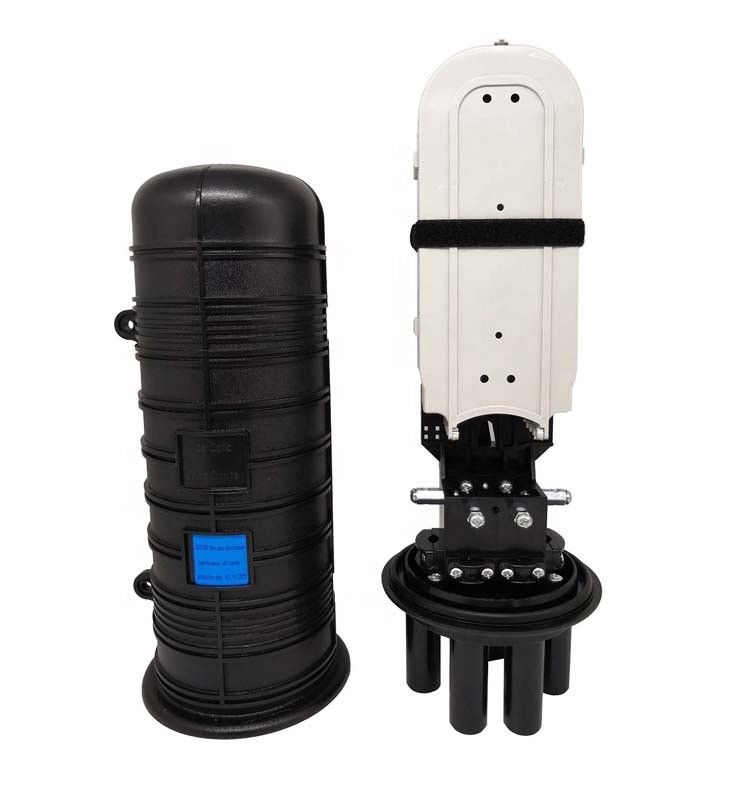

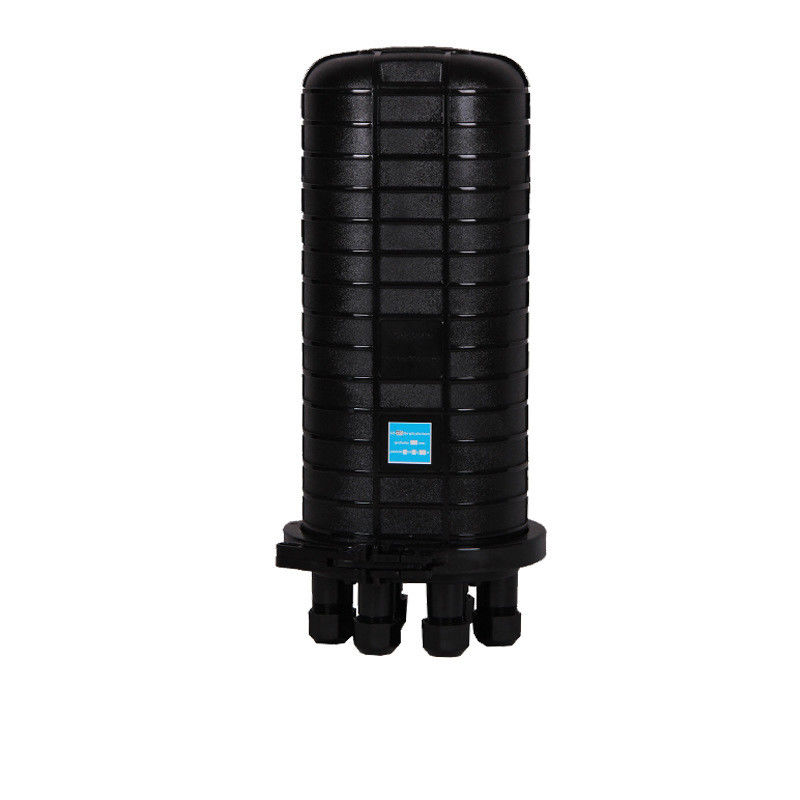

Optic fiber clousure is applied in the junction and protecting of the fiber.It can be place with the aerial cable or buried in earth or put in the pipeline.The outer part and the fusing part of the clousure are made of the project plastic with the virtue.
|
Outside dimension (Height x Diameter) |
490mm x 220mm |
|
Weight (excluding outside box) |
3350gü4600g |
|
Number of inlet/out ports |
6 pieces |
|
Diameter of fiber cable |
Φ8mm̚Φ21mm |
|
Capacity of FOSC |
Bunchy: 12-320 (cores), Ribbon: up to 960 (cores) |
|
No. |
Name of components |
Quantity |
Usage |
Remarks |
|
1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole |
Height x Diameter |
|
2 |
Fiber optic splice tray (FOST) |
Max. 14 trays (bunchy) |
Fixing heat shrinkable |
Suitable for: |
|
3 |
Base |
1set |
Fixing internal and external structure |
|
|
4 |
Plastic hoop |
1 set |
Fixing between FOSC |
|
|
5 |
Gasket ring |
1 set |
Big gasket ring is used to |
1 piece of big gasket ring, |
