| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | FOSC-1022M | Delivery: | FOB |
|---|---|---|---|
| Suitable For: | 4,6,8,12,24(cores) | Number Of Splice Trays: | 4 Pcs X 24F |
| Fiber Bending: | >40mm | Diameter: | 5mm-25mm |
| High Light: | 25mm fiber optic splice enclosure,24F fiber optic splice enclosure,optical fiber joint closure 12 core |
||

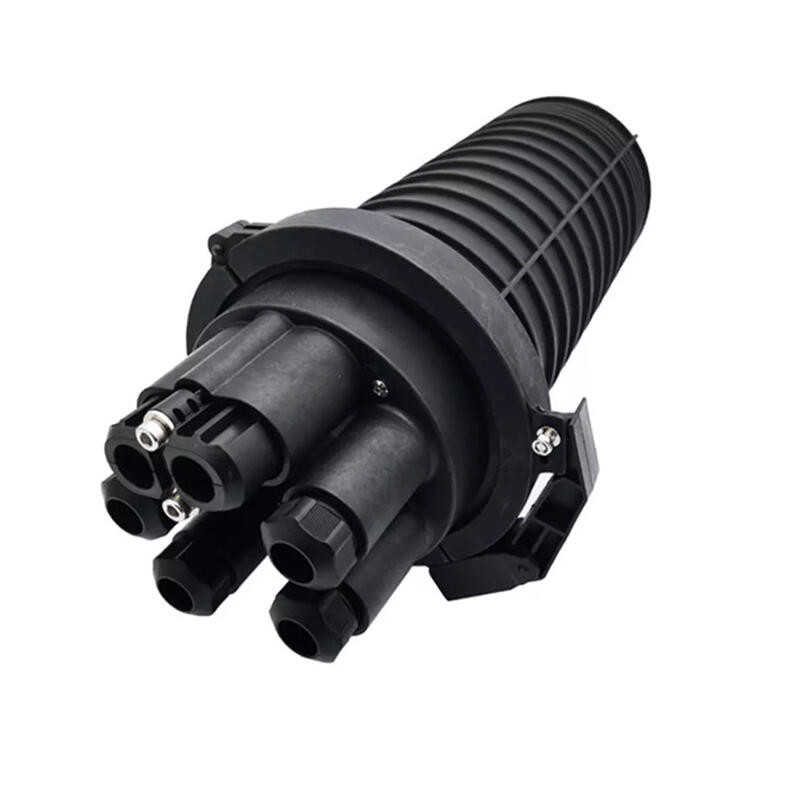

The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications. It can be placed in aerial, underground direct buried, wall mounted, manhole and duct applications.
Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic by numerical control equipment, therefore effectively preventing products from aging caused by coldness, heat, oxygen and ultraviolet radiation.
The strong housing and main components provide fire-resistant, water-proof, and quake-proof while protecting splices during pulling, tensioning and impacting.
It ensures long-term reliability and usage under ambient temperature from -40℃ to +80 ℃
Suitable for bunchy & ribbon fibers.
Aerial
Underground
Wall-mounting
Duct-mounting and handhole- mounting
Ambient temperature ranges from –40℃ to +65℃.
sealing structure.
High quality industrial plastic body material.
4 round holes for cable entrance.
Suitable for cable diameter 5mm-25mm.
Support aerial,underground,pipeline,man holes,hand holes.
Protection level reaches IP68.
360 degrees access, fiber bending >40mm.
Maximum capacity: 96 fibers.
Number of splice trays: 4 pcs x 24F
Working temperature: –40℃ to +60 ℃
Atmospheric pressure: 70~106Kpa
Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.
High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.
Tensile strength: 1000N
Compressive strength: 2000N/10cm2 within 1 min
Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground
Dielectric strength: 15KV DC, 2min, without spark over and flying arc
|
Outside dimension (Height x Diameter) |
475mm×210mm |
|
Weight (excluding outside box) |
2250g—2310g |
|
Number of inlet/outlet ports |
1 Mid-span dual holes port 4 Round ports |
|
Diameter of fiber cable |
10mm~25mm |
|
Capacity of FOSC |
Bunchy: 24-144 (cores) |
|

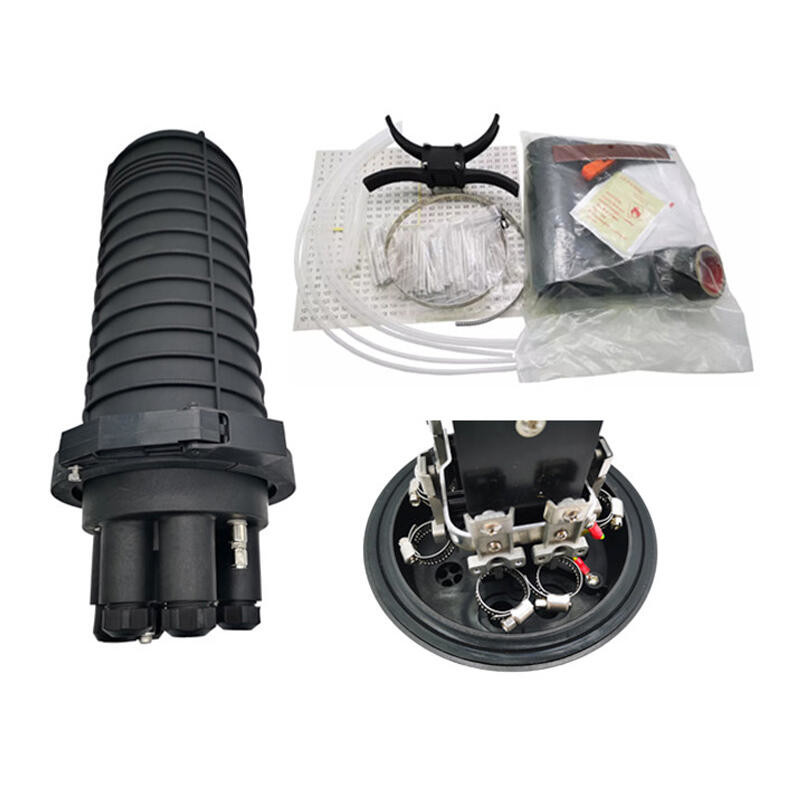

No. |
Name of components |
Quantity |
Usage |
Remarks |
| 1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole |
Height x Diameter 475mm x 210mm |
| 2 |

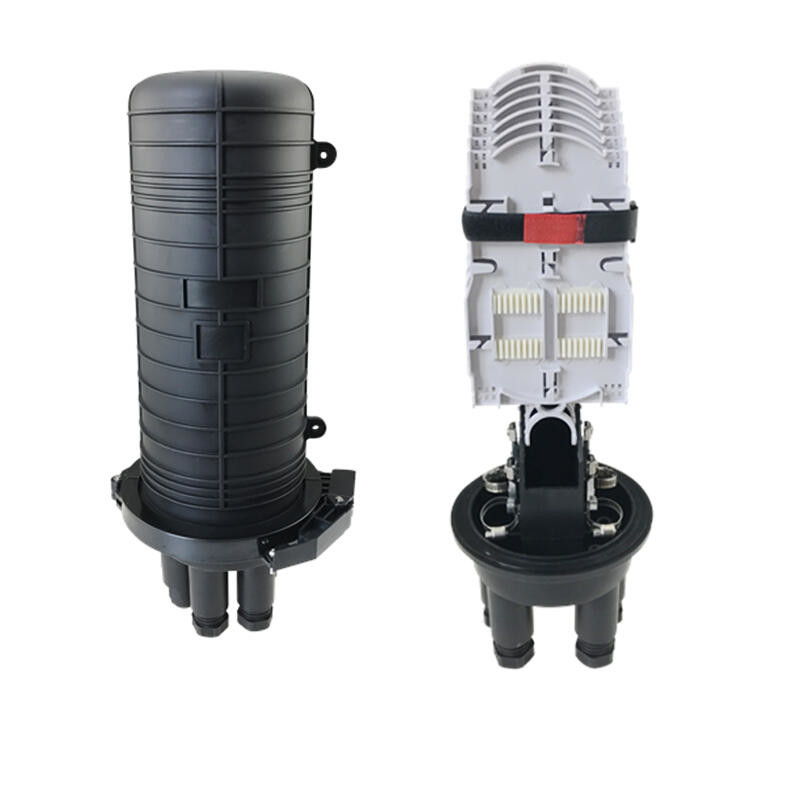

Fiber optic splice tray |
Max. 4 trays (bunchy) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:4,6,8,12,24(cores) |
| 3 |
Fiber holding tray |
1 piece |
Holding fibers with protective coat |
|
| 4 |
Base |
1 set |
Fixing internal and external structure |
|
| 5 |
Plastic hoop |
1 set | Fixing between FOSC cover and base | |
| 6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
| 7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 8 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection |
Configuration as per requirement |
