| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | Fixed Panel | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Country Of Origin: | GUA,CN | Standard Structure: | 19" |
| Highlight: | 24F Optical Fiber Patch Panel,48F Optical Fiber Patch Panel,fiber dome closure 19" rack mount |
||

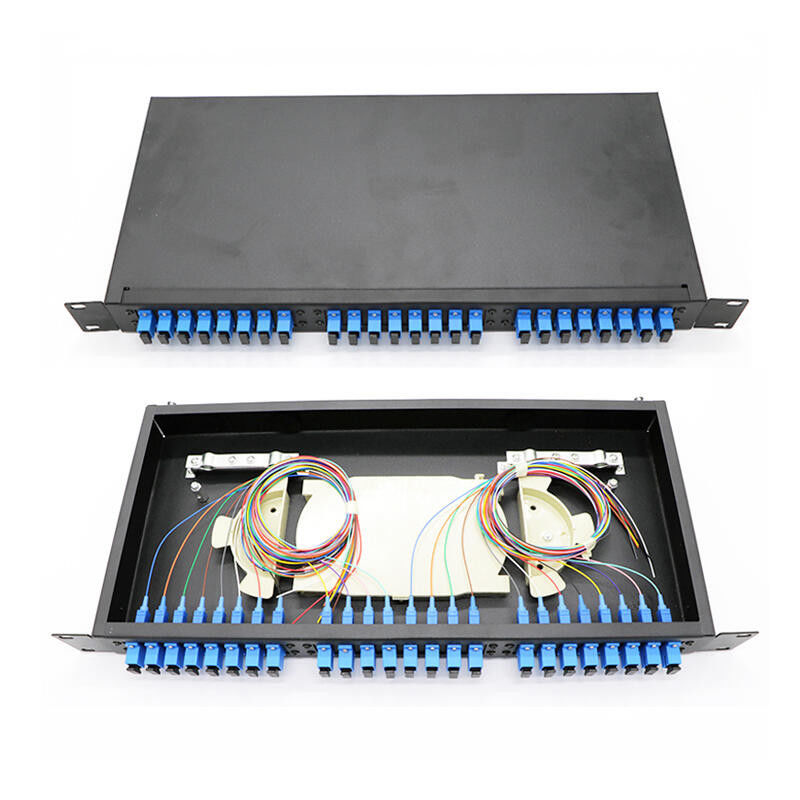

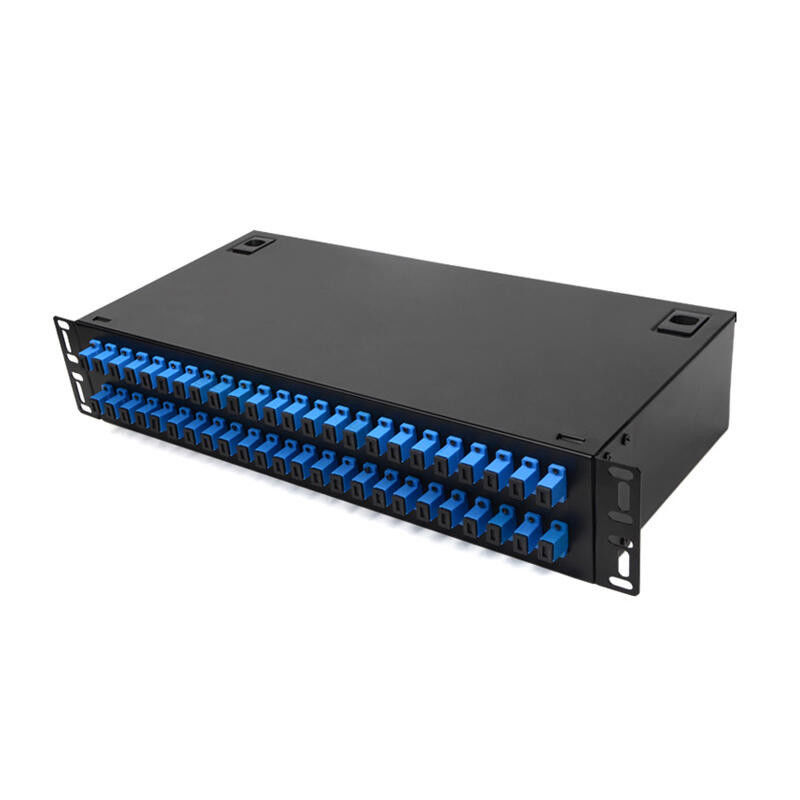

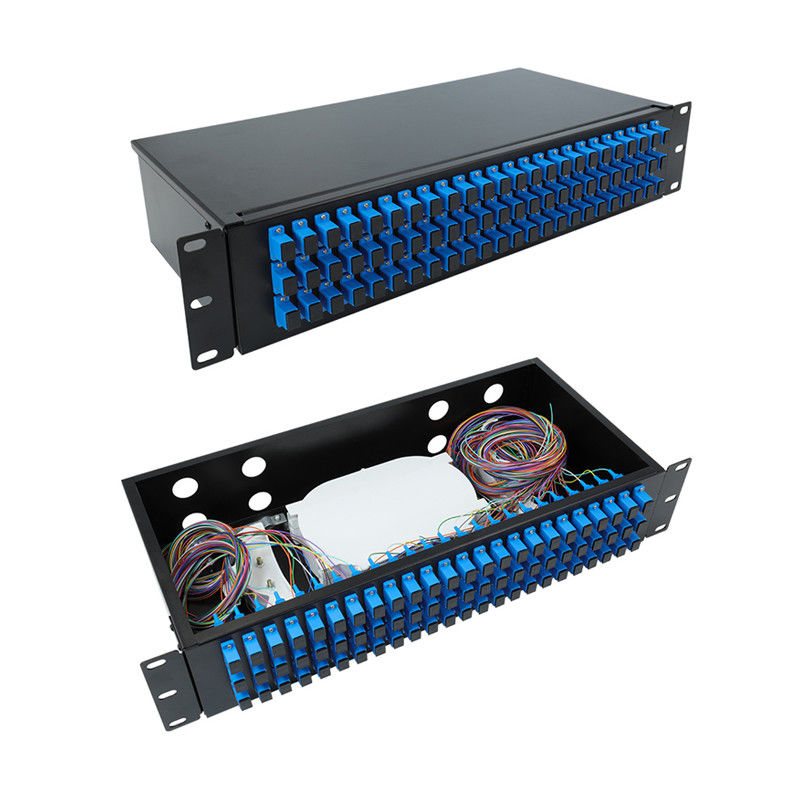

Fixed Patch Panel
Description
ODF patch panels are designed to provide a high density 19" rack-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing and management. The ODF patch panel offers superior optical performance, high stability and high reliability.It also meet various application requirements in FTTH construction , ODN construction, LAN, Metro network and CATV.
The fixed Type of Rack Mounted Standard Fiber Patch panel provides maximum port number of 12, 24, 48, 96, 144 and 288 ports. It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network. One cabinet design provides OSP cable fibers and pigtail splicing, patch cords termination and storage.
Features
Each Patch panel is fully loaded with panels, adaptors,
splices trays and accessories and is ready for installation.
Can be applied in the branch connection of optical fiber termination;
19" standard structure, rack mounted
Available for the adapters installation of FC, SC, ST, LC .
The patch panel body is made of cold rolled steel sheet.
19"Rack Cabinet Mountable
One cabinet design provides OSP cable fiber and pigtail splicing, patch cord termination and storage
FC/SC/ST/Other adapters all is available
Application
Local Area Network
CATV Network
FTTx System
Wide Area Network
Test Instruments
Specification
| FP/FS-SC12 | 483*250*1U | 12 |
| FP/FS-SC24 | 483*250*1U | 24 |
| FP/FS-SC48 | 483*250*2U | 48 |
| FP/FS-FC12 | 483*250*1U | 12 |
| FP/FS-FC24 | 483*250*1U | 24 |
| FP/FS-FC48 | 483*250*2U | 48 |
