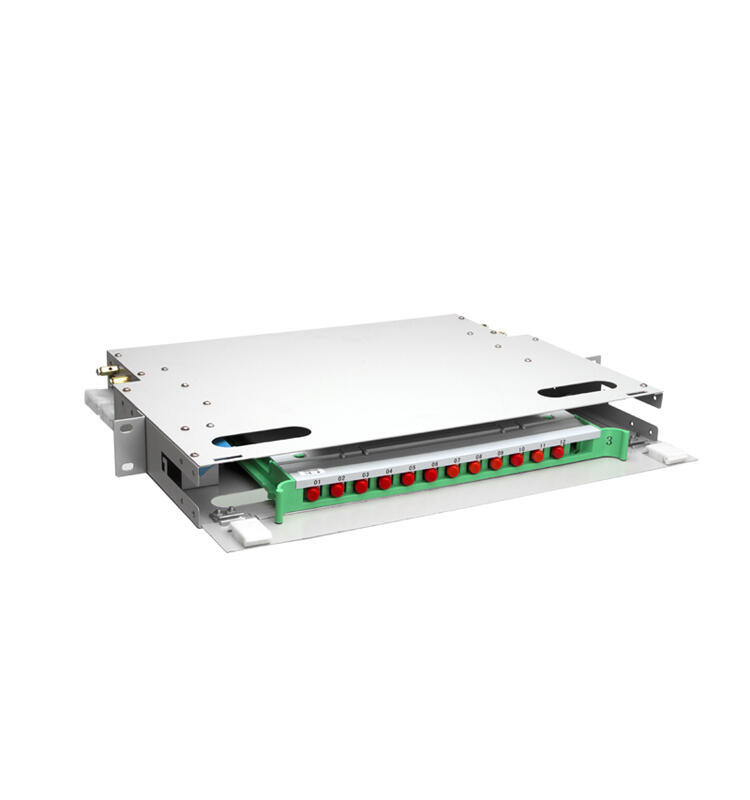

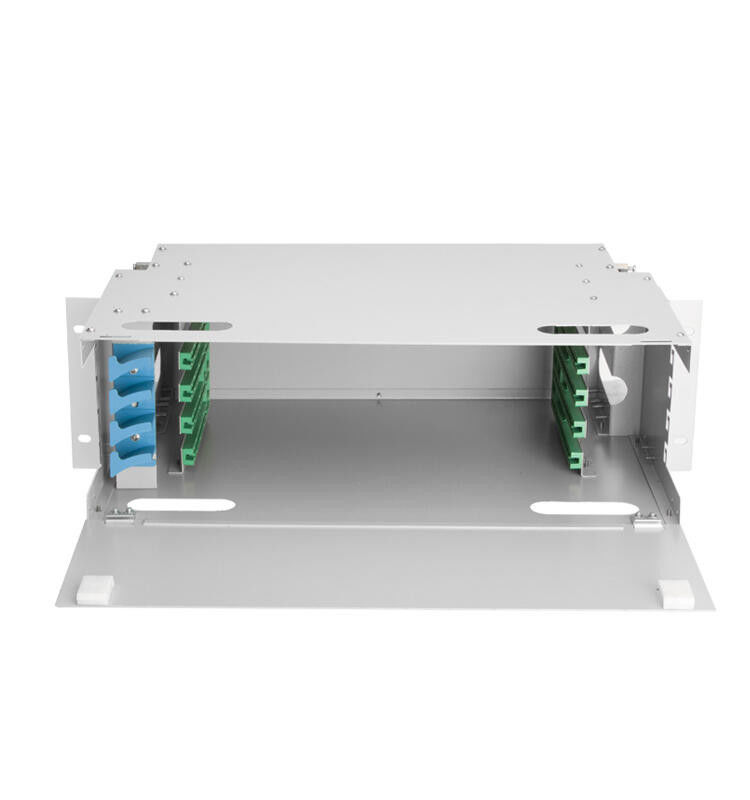

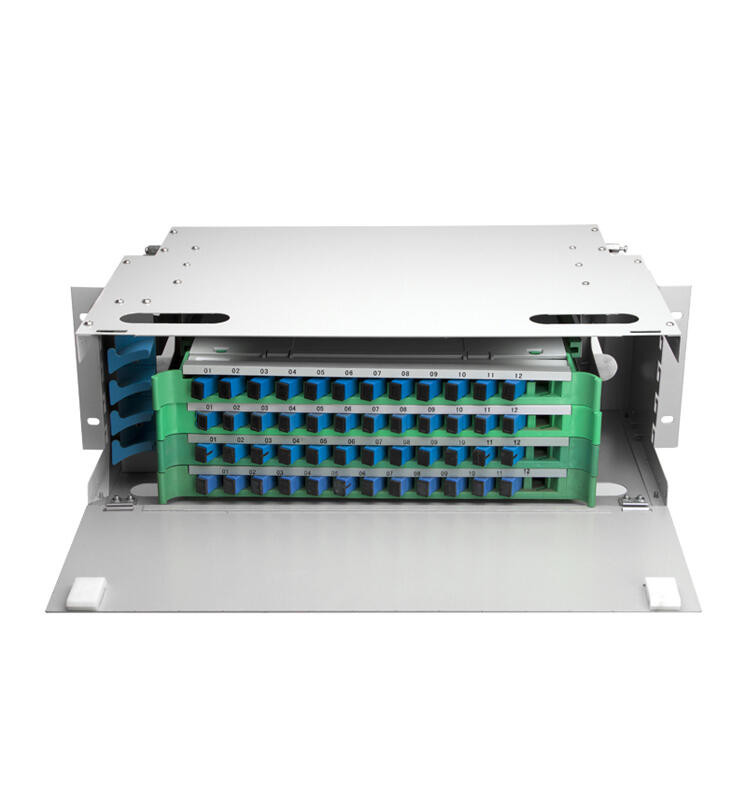

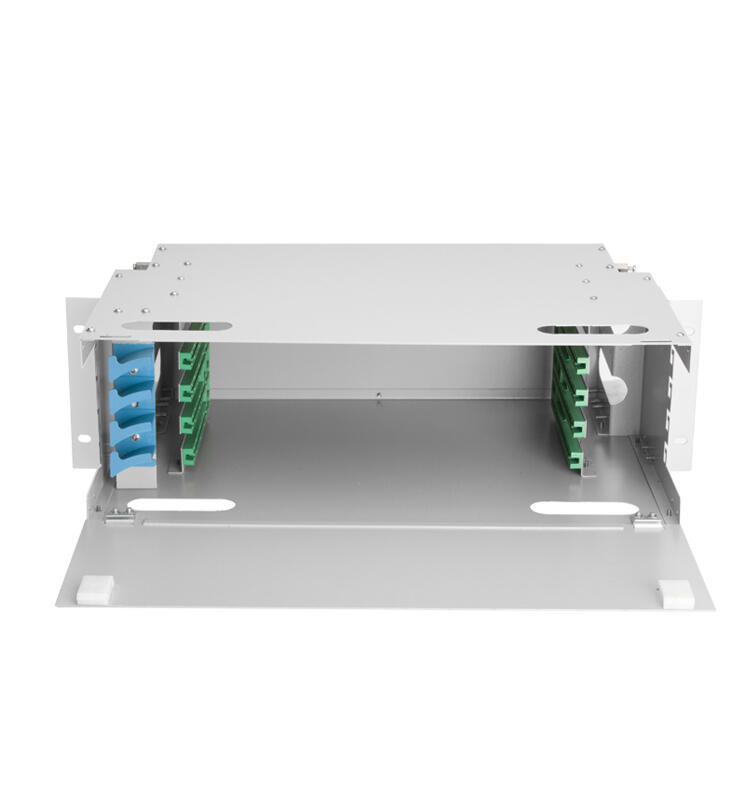

12 144 FC Fiber Termination Frame ODF 19 Inch

19 Inch Optical Distribution Frame (ODF)

Description

An optical distribution frame (ODF) is primarily used to connect and schedule optical fibers and optical cables. It is applicable to fiber intersections between an optical transmission network and optical transmission devices as well as between optical cables in an access networks.

Application

• FTTX Systems
• PON Networks
• CATV Links
• Optical Signal Distribution

Feature

• 19’ standard mounting, available for all kinds of rack and cabinet.
• Metal, static electric plastic sprayed. Neat appearance, reasonable structure.
• All are designed as modules; all operation could be done at the front side of the box. Flexible installation. Convenient for operation and maintenance.
• Easy for installation of inlay,convenient to expand capacity,obliquity of adapter is 30o
• Suitable for both ribbon and bunch fiber cables.
• Each splice trays can be clamped with 12FC, SC, ST, LC(Duplex) adapters.
• Plastic structure,legerity with perfect appearance
• Ensure the bend radius of patch cord and avoid laser burning eyes.
• Kinds of splicingand distribution mark, easy to make fusion and distribution record

Photoelectric Properties

• Ground wire section:＞6mm².
• Insertion loss: ≦0.2dB.
• Connector loss:≦0.5dB.
• Return loss: UPC≧ 50dB,APC≧ 70dB.
• Durability life of plug and pull >1000 times.
• The insulation resistance 2x104MΩ /500V(DC).
• Electrical strength: it can withstand 3000V(direct current)/1min without breakdown/arc flying phenomenon.

Mechanical Properties

• Retardant properties:GB5169.7 A trial standard.
• Fiber cable come into from bottom, reliable waterproof.
• The surface of the box body can bear the pressure greater than the surface of the surface is greater than 1000N.
• The external side of the door can withstand the vertical pressure greater than 200N

Specification
