| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | Sewing | Delivery: | FOB |
|---|---|---|---|
| High Light: | Sewing multimode patch panel 12 CORE,multimode patch panel 24 Core,24 port sc fiber patch panel |
||
Description

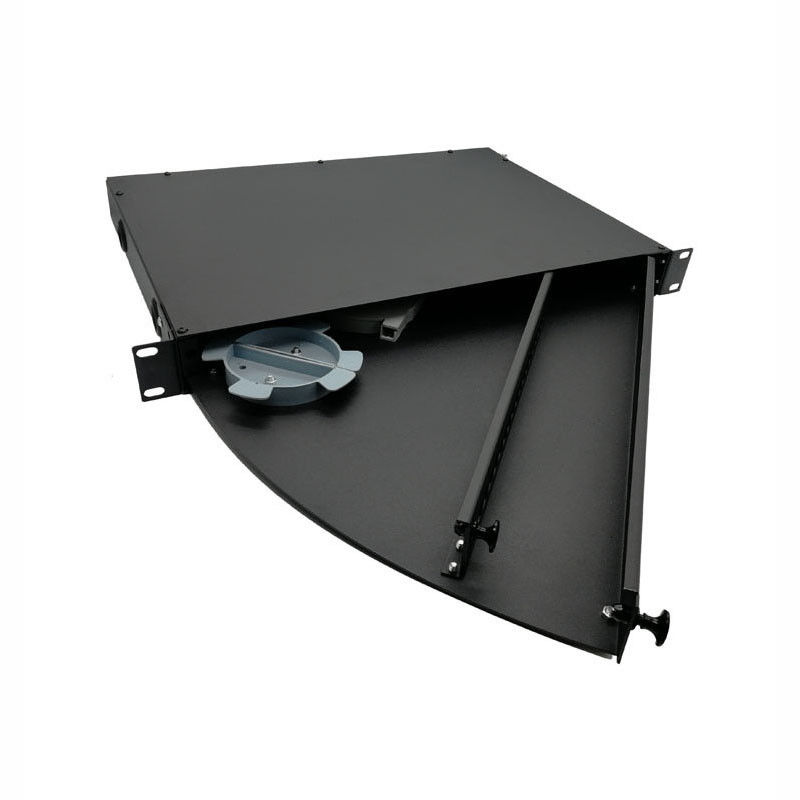

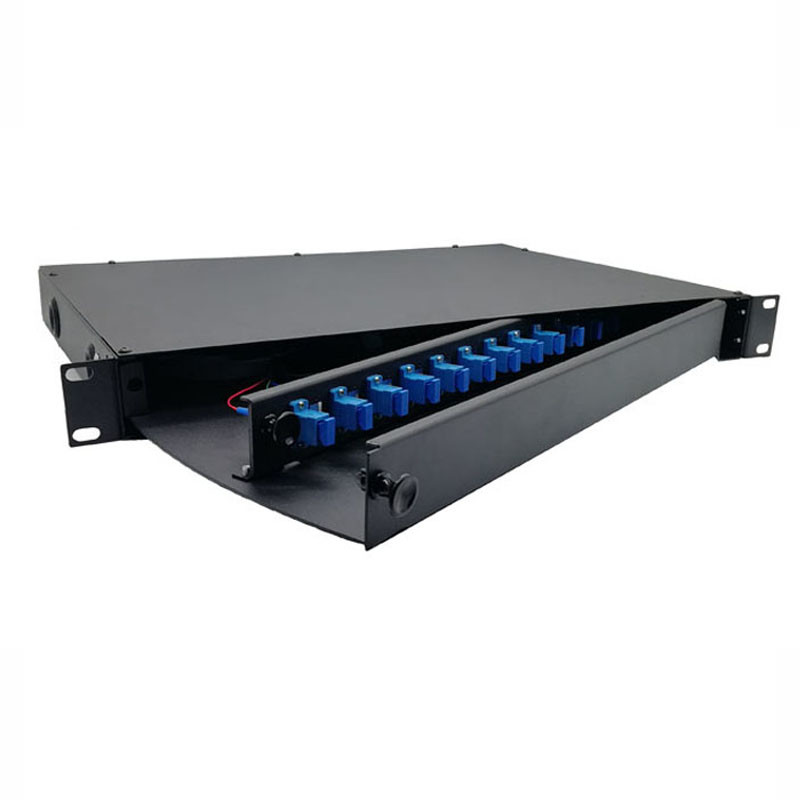

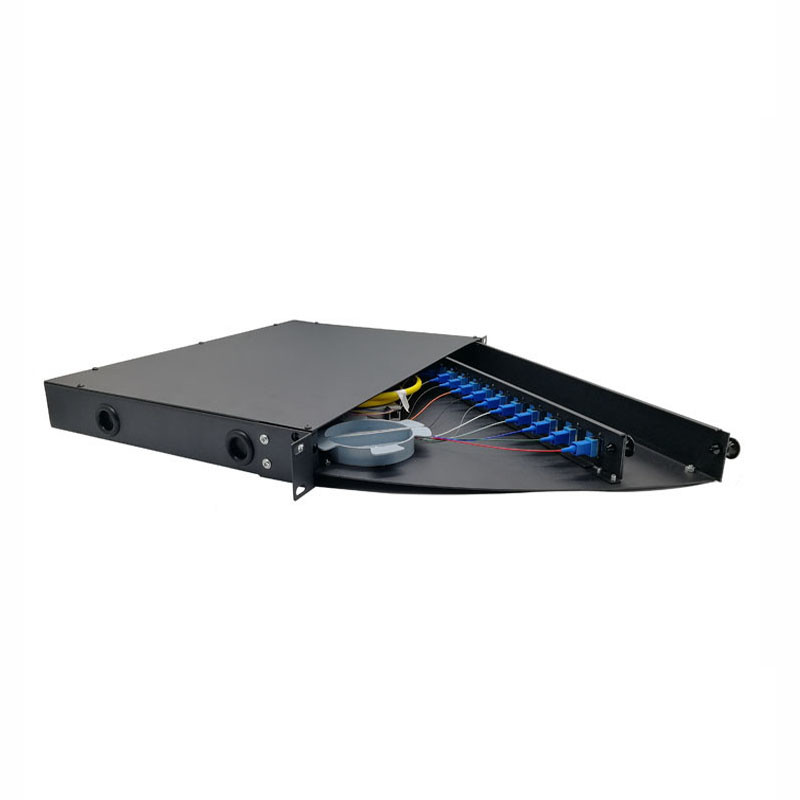

Fiber optic patch panels are enclosures that act as a distribution hub for fiber cable. A bulk (multi-strand) fiber cable enters the patch panel and then each fiber strand is separated into individual strands or pairs of strands. These individual strands will then connect to electronic devices designed to communicate over fiber optic cable.
Features
9-inch standard size Changeable modules inside
Suitable for both ribbon and round cable
With various panels to fit different adaptor interface
Improved design to assure fiber optic cable bend radius not less than 40mm Suitable for SC, SCD, LC, LCD, LCQ adatpers
All material is RoHS compliant
Specification
|
Type |
Dimension(mm) |
Max capacity(cores) |
|
SP/FS-SC12 |
483*300*1U |
12 |
|
SP/FS-FC24 |
24 |
|
|
SP/FS-SC24 |
48 |
|
|
SP/FS-FC48 |
483*300*2U |
48 |
