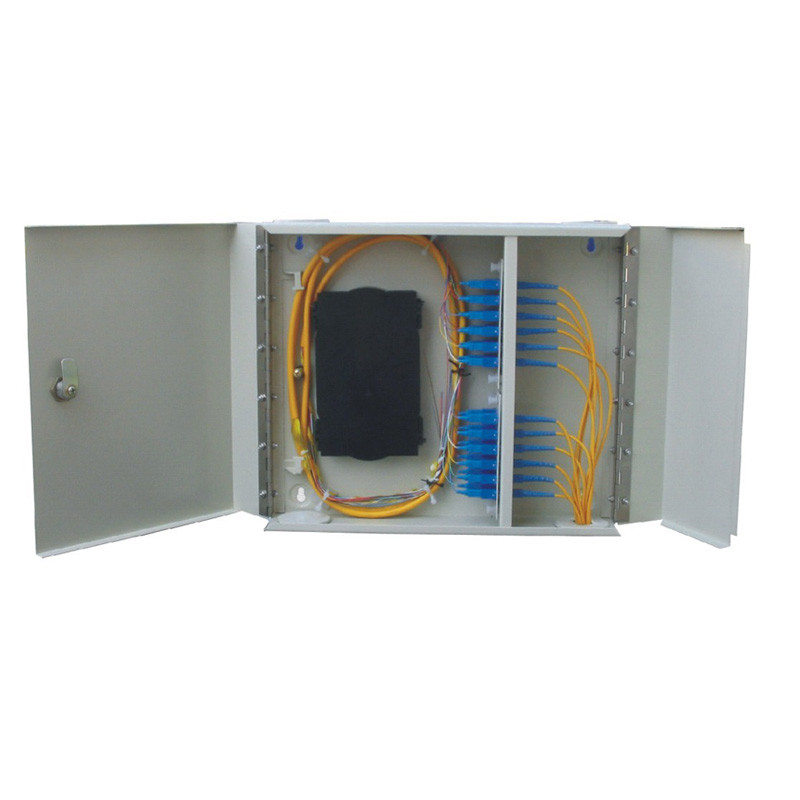

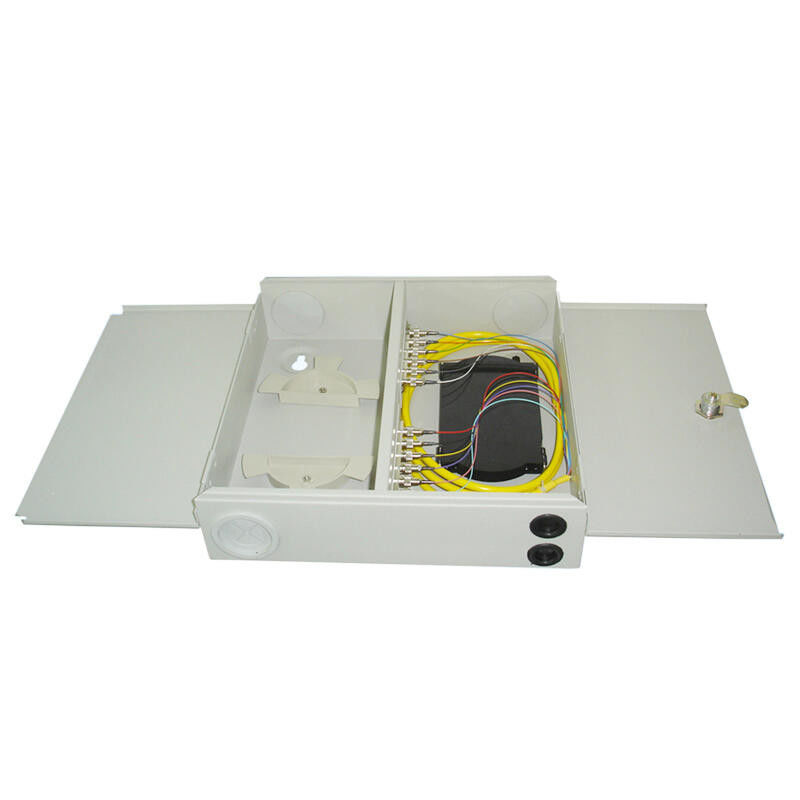

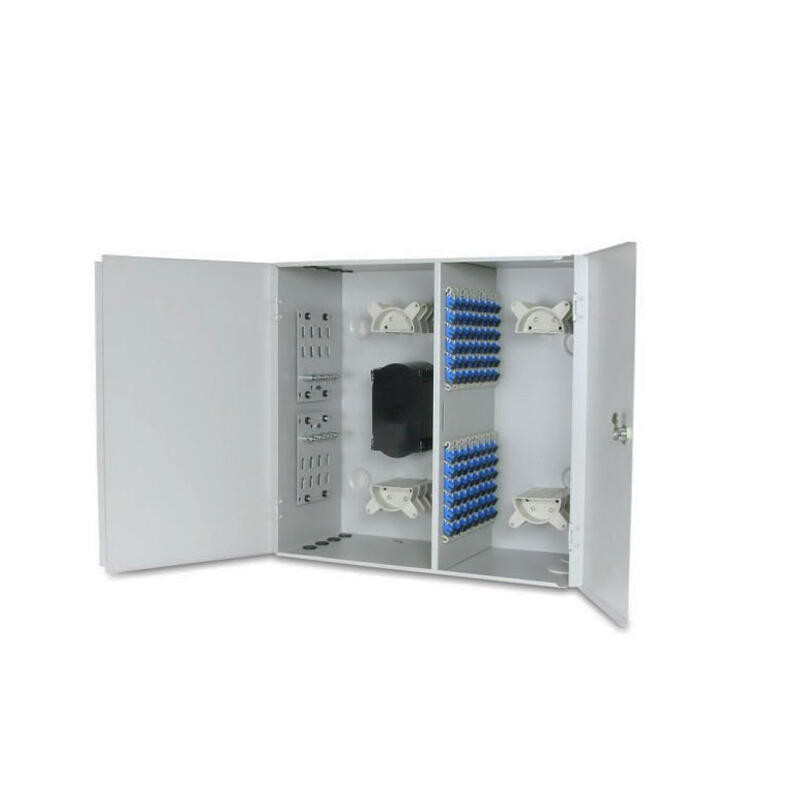

12 Core 24 Core Optical Fiber Patch Panel FTTX Indoor Fiber Termination Box

Basic Information
Place of Origin: CHINA
Brand Name: SKYLYNN or OEM, ODM
Certification: ISO, ROHS, CE
Minimum Order Quantity: 10PCS
Packaging Details: PP BAG, INNER BOX, OUTER BOX
Delivery Time: 2-7 DAYS
Payment Terms: T/T, L/C, WEST UNION
Supply Ability: 800,000
Detail Information
Model NO.: Indoor Wall Mount Box Delivery: EXW/FOB/CIF
Country Of Origin: GUA,CN Type: WX(05)C-FC12
Dimension(mm): 350*300*80 Capacity: 12 Core
High Light:

12core Optical Fiber Patch Panel

,

24core Optical Fiber Patch Panel

,

FTTX indoor fiber termination box


Product Description

Indoor Wall Mount





Description

Optical fibre wall mountable distribution boxes are designed to offer tidy and flexible termination and distribution solutions with a simple, low-profile installation. Choose from a connectorised solution where your cable terminates onto pigtails or a splice-only Building Flexibility Point designed as the central point in a building's fibre distribution.

Optical Fibre Wall-boxes are a compact, low-profile and discreet way to terminate and distribute multi-way fibre-optic cables in an indoor environment - for example a cable running between floors or between buildings in a campus environment. Incoming cables may be brought into the box from top or bottom and spliced - either onto pigtails for local patching or onto multiple cables for distribution.



Features

  • Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room

  • The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.

  • Provide fusion and storage applicance for optical cables

  • Reliable protection appliance of fixing, stripping and earthing for optical cables.

  • Whole range protected design for fiber lay to ensure the bending radius=40mm

  • Provide various accessories to avoid any unexpected damage to the fiber.

  • Each box trays and accessories and is ready for installation.

  • Can be applied in the branch connection of optical fiber termination;

  • Wall mounted

  • Available for the adapters installation of FC, SC, ST, LC .

  • The box body is made of cold rolled steel sheet.



Application

  • Local Area Network
  • CATV Network

  • FTTx System

  • Wide Area Network

  • Test Instruments



Specification

Type
Dimension(mm) Max capacity cores
WX(05)C-FC12 350*300*80 12
WX(05)C-SC12 350*300*80 12
WX(05)D-FC24 350*300*80 24
WX(05)D-SC24 350*300*80 24
