| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | LGX 4U | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Country Of Origin: | GUA,CN | Maximum Fiber: | 24 |
| Highlight: | 19IN Optical Fiber Patch Panel,4U LGX Optical Fiber Patch Panel,fiber patch panel 24 port SPCC |
||

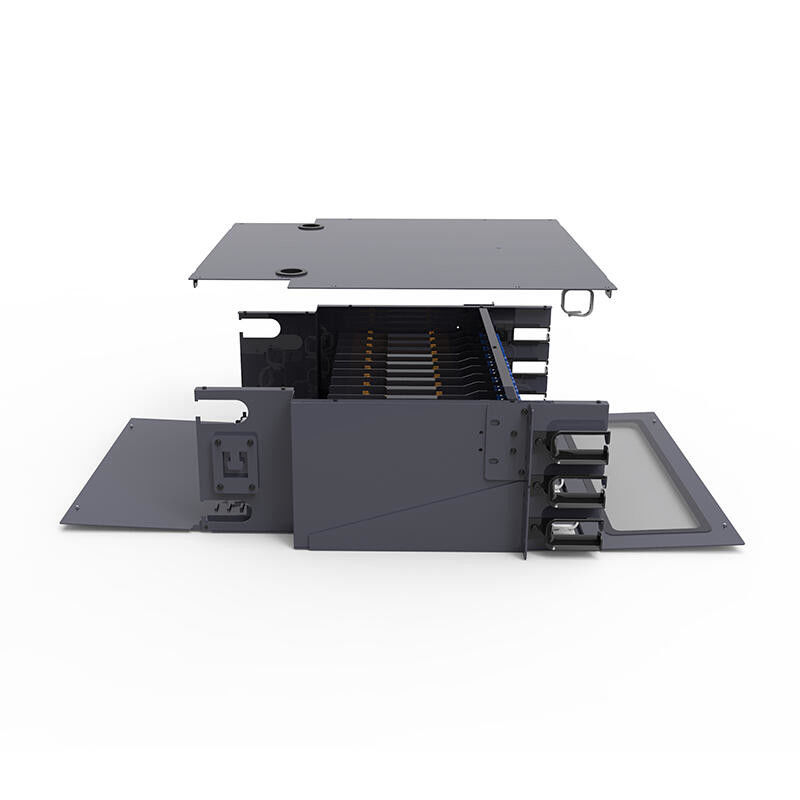

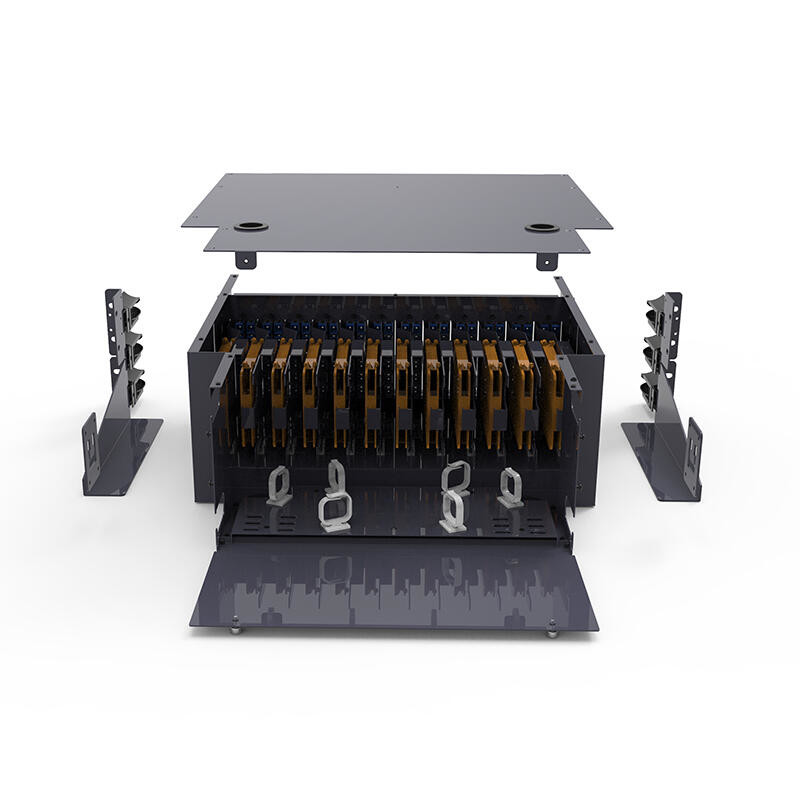

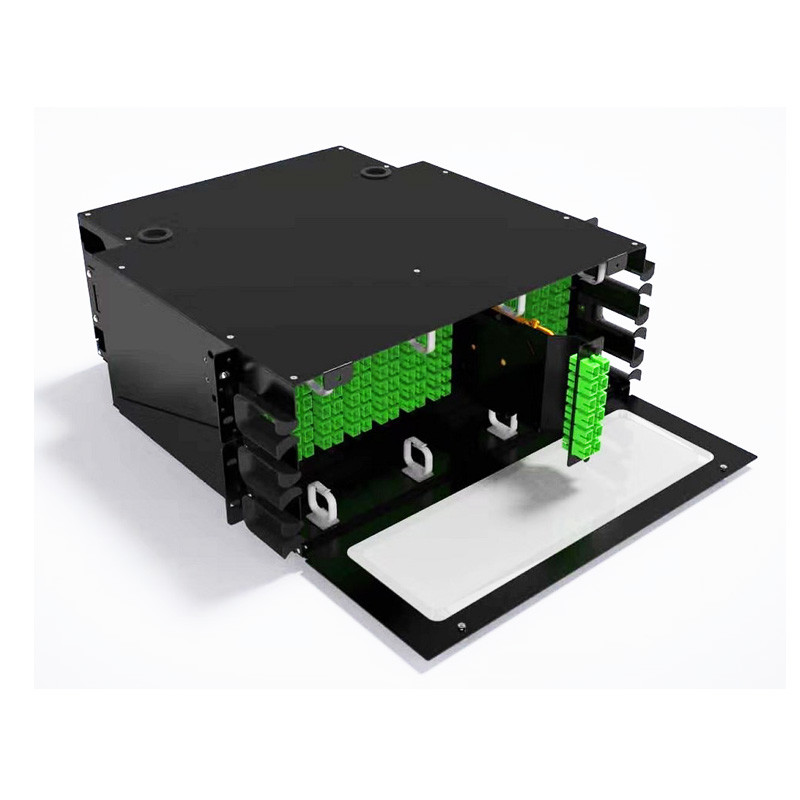

Fiber optical patch panel is an integrated unit for fiber management including fixed patch-panel and sliding panel.The function is to fix and manage the fiber optic cables inside the box as well as provide protection. Typical it is 12,24,36,48,72,144 ports on the panel.We have panels for the most commonly used fiber optic connections like SC, FC, E2000,etc. What's more important custom design is also available for more fiber ports requirement or other types fiber optic connections. For our fiber optic patch panels, we will give fiber tray and fusion protection sleeves and some spare parts for patch panels.
Features
Application
CATV Network
FTTx System
Wide Area Network
Test Instruments
Specification
|
Product
|
LGX 4U Patch panel |
|
Size (mm) |
439*452.5*174.4 |
|
Color |
Black (Ral9005), Beige (RAL1001) |
|
Body Material |
SPCC |
|
Capacity |
144 (SC), 288(LC) |
Configuration
|
LGX 4U Patch panel
|
1pcs |
| 24f splice module | 12pcs |
| Fiber protection sleeve | according to the quantity of fiber |
| cable tie | 12pcs |
| magic stick strip | 4pcs |
