| Model Number: | Fiber Test Instrument | Use: | FTTH |
|---|---|---|---|
| Fiber Length(km): | 0.5~1Km On Customer Requests | Material: | Plastic |
| Highlight: | 1KM fiber optic launch box,fiber optic launch box SR Polypropylene,otdr launch cable box extension 500m |
||

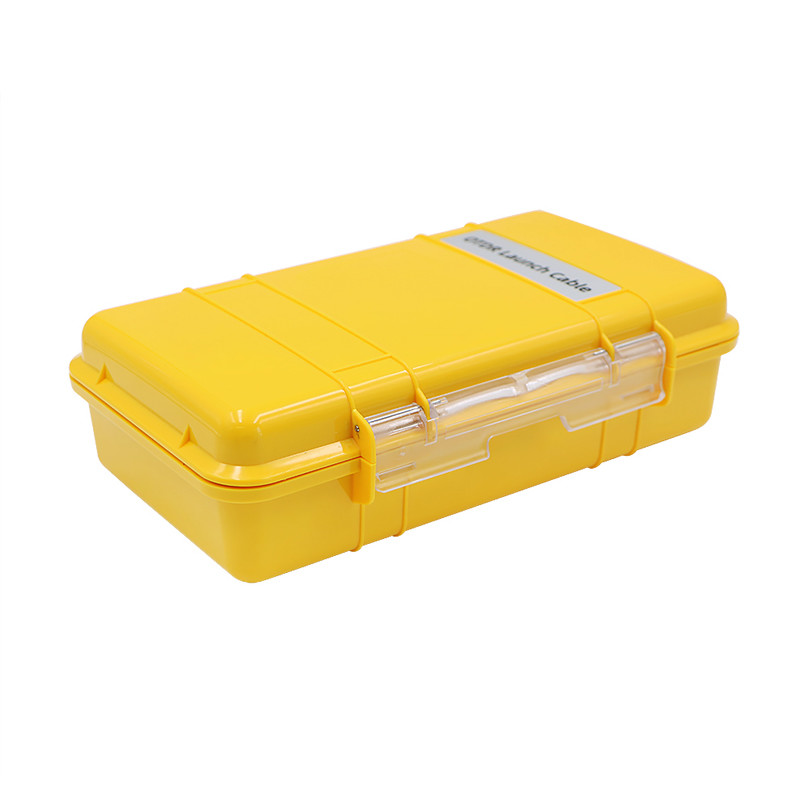

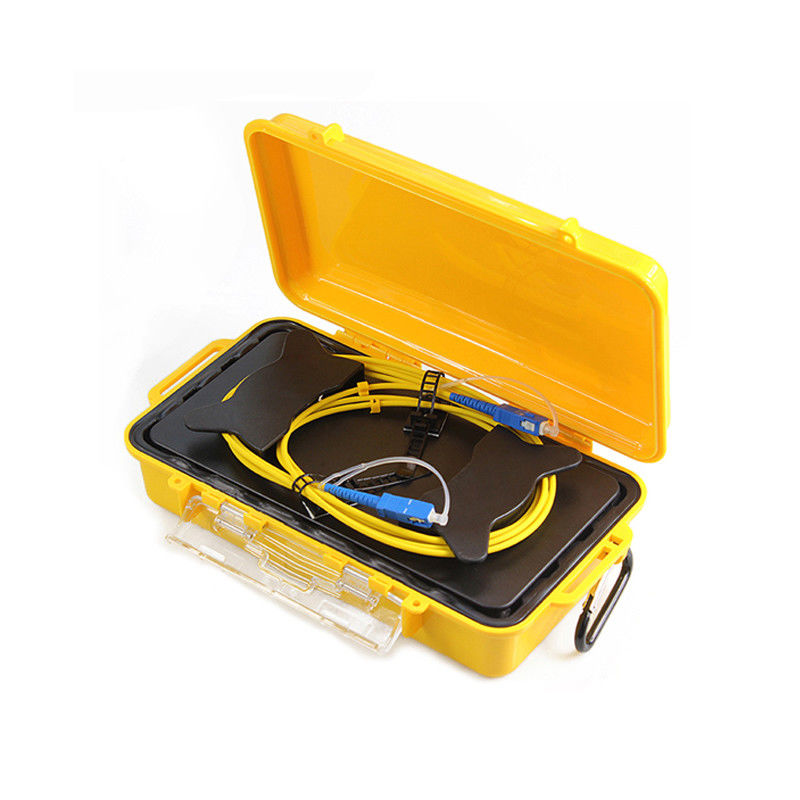

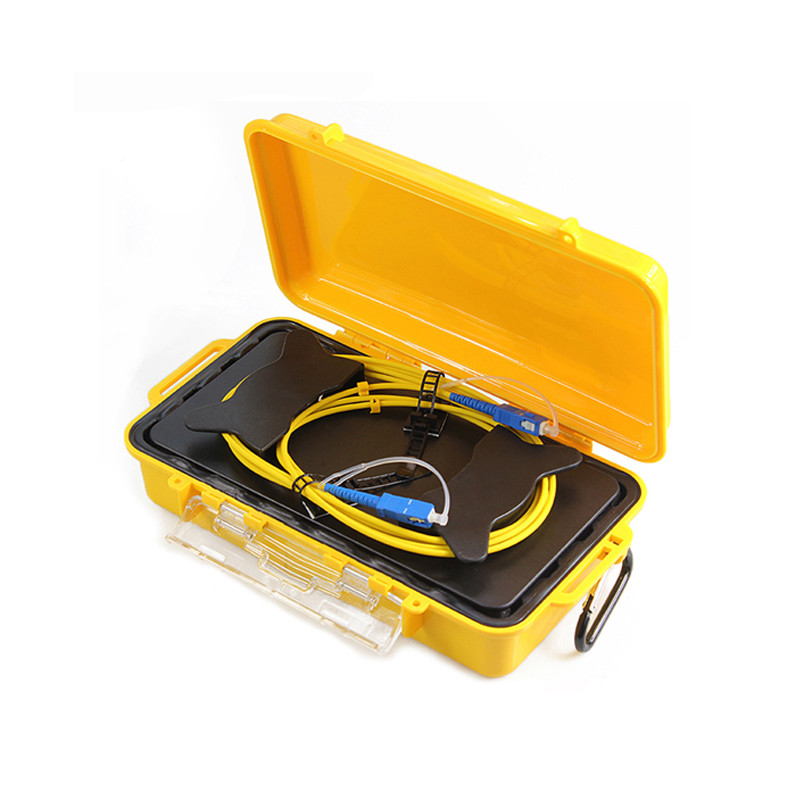

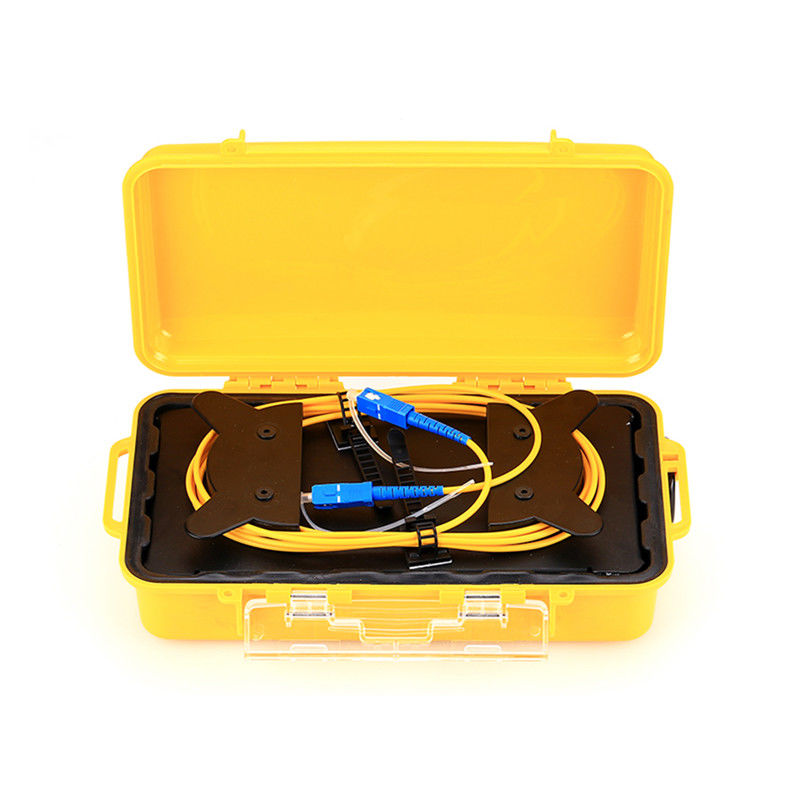

OTDR Launch cable box is mainly used to make up the dead zone of OTDR test. There are no fusion joints in the center of optical fiber, small size, light weight and easy to carry. The loss is less than or equal to 0.5dBm/km. It has excellent sealing properties, waterproof and anti-fouling. Come with a plastic box to conveniently store the OTDR launch cable
|
Dimensions(mm)
|
Diameter 6.25 ", Height 1.25"
|
|
Fiber Length(m)
|
100 to 1000
|
|
Fiber Types
|
Singlemode 9/125, Multimode 62.5/125, 50/125 OM2, 50/125 OM3
|
|
Lead Length
|
2 Meters, 3mm buffer
|
|
Insertion Loss
|
<0.3dB/km typical, <0.5dB/km max
|
|
Back Reflection (RL):
|
UPC: <-50dB, APC: <-60dB
|
|
Mating Reliability
|
<.2dB
|
|
Storage Temp.
|
-40° to +85° C
|
|
Humidity
|
0 to 95%, non-condensing
|
|
Weight
|
5 oz.
|
