| Fiber Core:: | SX | Cable Jacket:: | PVC, LSZH |
|---|---|---|---|
| Cable Color: | Grey | 1-144: | 1-144 |
| Highlight: | MPO Duplex armored fiber patch cord,armored fiber patch cord ST APC,mode conditioning patch cord 144F |
||

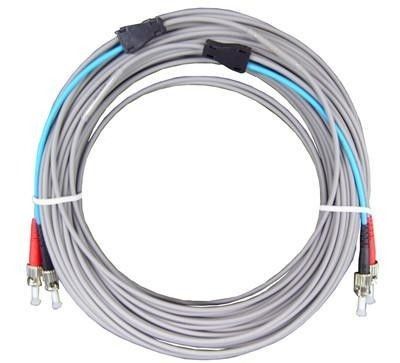

The armored fiber optic patch cables will not get damage even it is stepped byan adult, and they are anti-rodents, when they use such armored fiber optic patchcords, people do not need to worry that the rodent animals like the rats may bite the cables and make them broken.

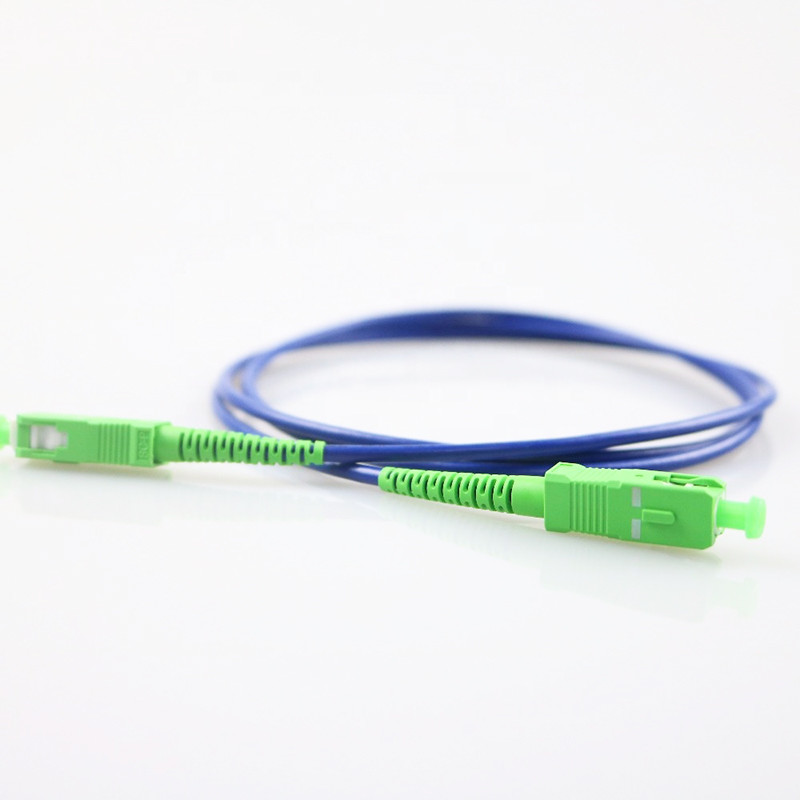

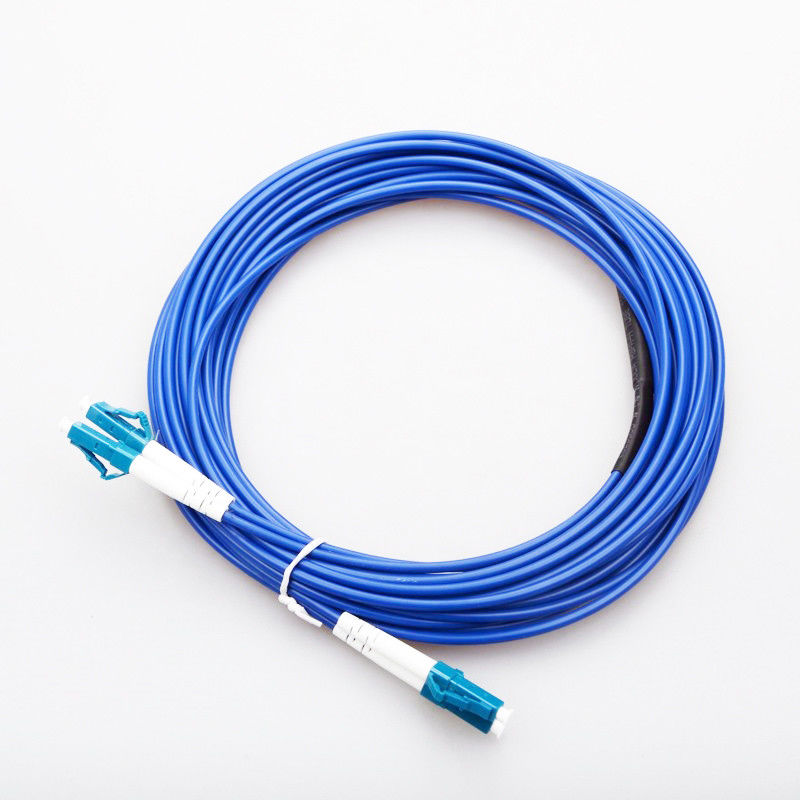

Armored fiber optic patchcord can be made similar outer diameter with the standard patchcords, this make them space saving. What is more, they can be with different jacket colors and jacket types,and the armored fiber optic patchcords are actually light weight, the armored fiber optic patchcords can be with SC, ST, FC,LC, MU,SC/APC, ST/APC,FC/APC,LC/APC etc types of terminations.
Specification
| Parameter | Unit | FC, SC, LC, ST, MU, MTRJ, MPO, E2000 Armoured fiber patch cord | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 |
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 |
| Cable diameter | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | φ3.0, φ2.0, φ0.9 |
