| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN |
| Certification: | ISO, CE, ROHS |
| Model Number: | FOSC-003 |
| Minimum Order Quantity: | 1PCS |
| Payment Terms: | T/T, L/C, Western Union |
| Body Material: | Strengthen Polymer Plastic | Name: | Splice Joint Closure |
|---|---|---|---|
| Protection Grade: | IP 68 | Maximum Bunchy: | 288 Fibers |
| High Light: | 288F FOSC fiber joint closure,fiber joint closure Waterproof 288F IP68,plastic enclosure box FTTH 288F |
||

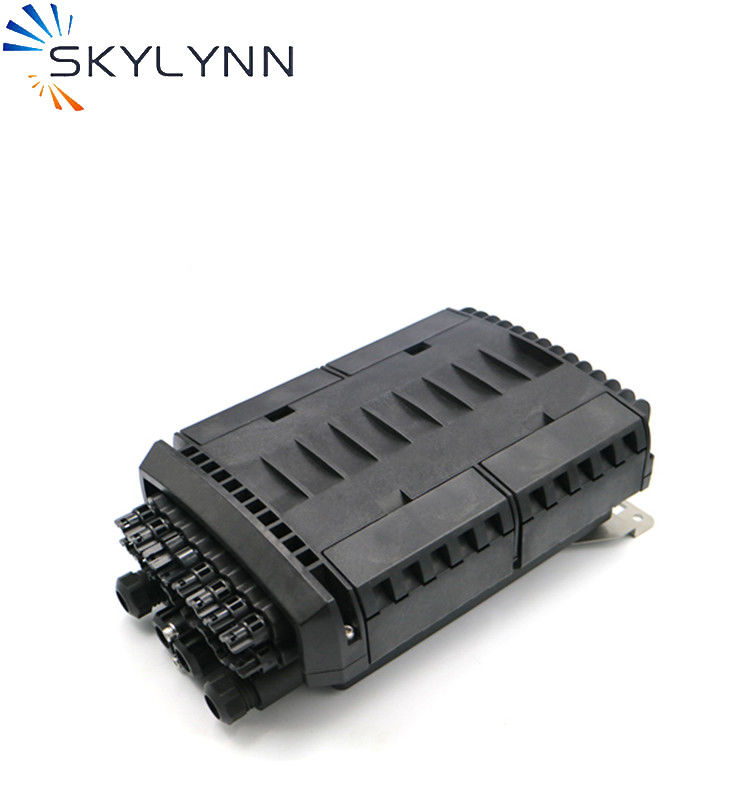

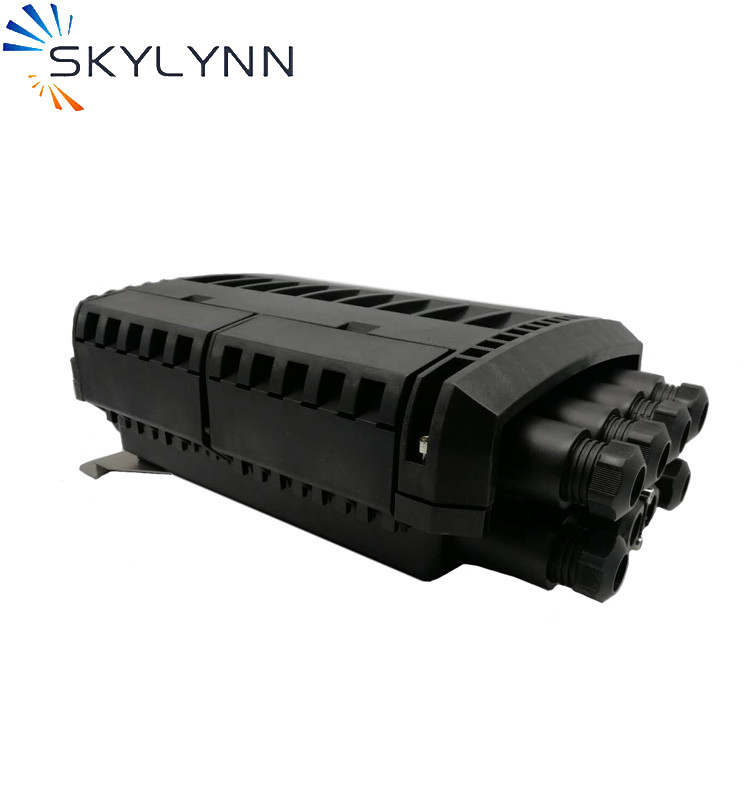

FOSC-003 Type Fiber Optic Splice Closure (FOSC) is mechanical sealing for reusable application, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.
The protection grade reaches IP 68.
Mechanical sealing structure and mid-span cable entry.
Max. splicing capacity of (Single fiber): 288 cores.
The casing of enclosure is made of PP, which is a kind of high strength engineering plastic.
Reliable cable introducing, fixing, protection, grounding devices.
Ambient temperature ranges from -40 to 65℃.
Fiber bending radius control more than 40mm.
The closure is of small volume, big capacity and convenient maintenance.
The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
Underground, Wall mounting and pole mounting installtion
FTTH Backbone Network Construction
5-35mm outdoor optic cable supported
|
Body Material |
Strengthen Polymer Plastic |
|
Dimensions |
395(H)×245(W)×130(D)mm |
|
Net Weight |
5 KG |
|
Color |
Black |
|
Cable Ports |
1 oval uncut port; 6 round ports |
|
Applicable Cable Diameter |
10~17.5mm; 8~17.5mm |
|
Maximum Capacity |
Bunchy: 288 fibers |
|

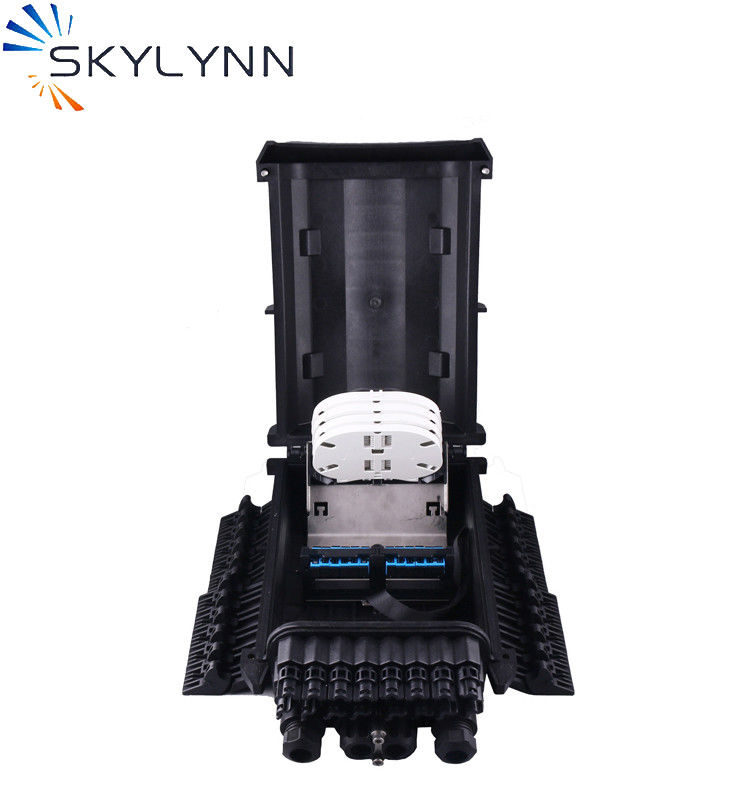

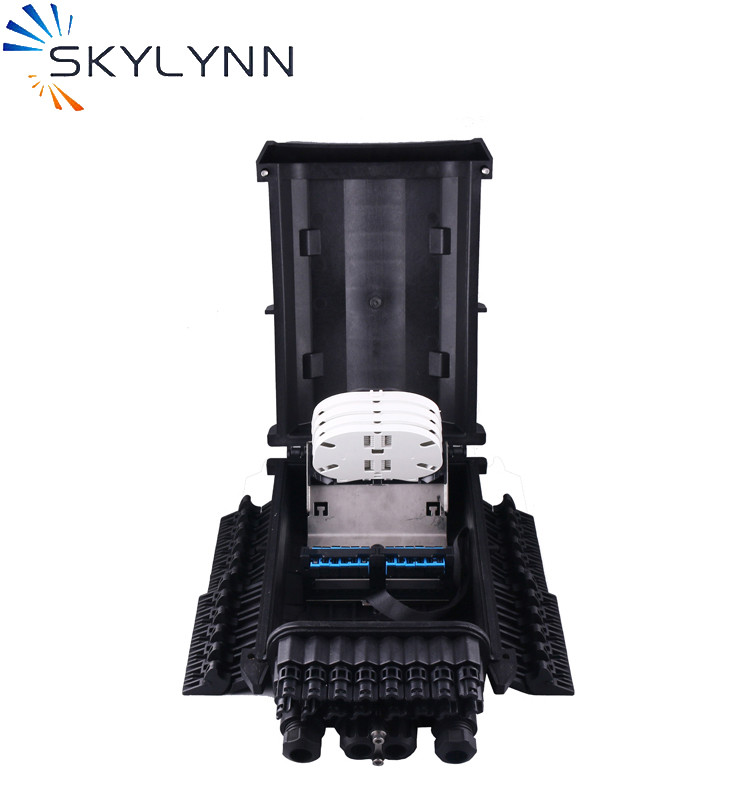

Quantity of Splice Tray |
12 trays, 24 fibers/tray |
|
Performance |
Mechanical |
|
Sealing Material |
Thermoplastic rubber |
|
Assembling method |
Aerial, pipelined, wall mounting, manhole |
|
Sealing |
IP68 |
|
Impact Test |
IK10 |
|
Temperature |
-40℃~65℃ |
