| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | FS-800 | Delivery: | FOB |
|---|---|---|---|
| Classification Color: | BLUE,GREEN | Dimensions(mm): | W17.5*H17.5*L173 |
| Function/Handling Type: | One Push | ||
| High Light: | SC FC Fiber Testing Tool 2.5mm,Fiber Testing Tool pen cleaner 1.25mm,one click fiber cleaning pen FS-800 |
||

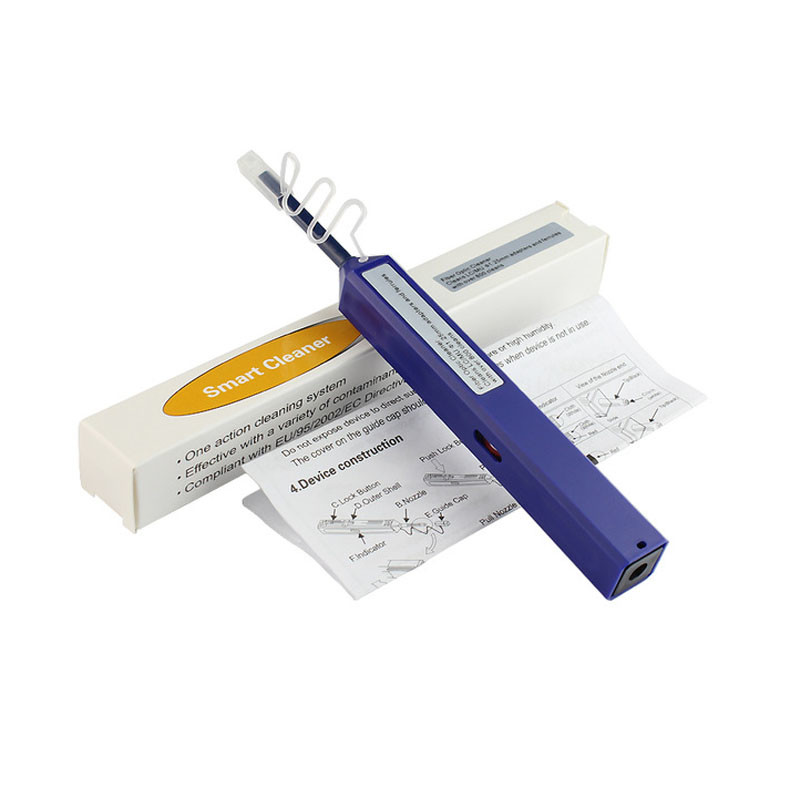

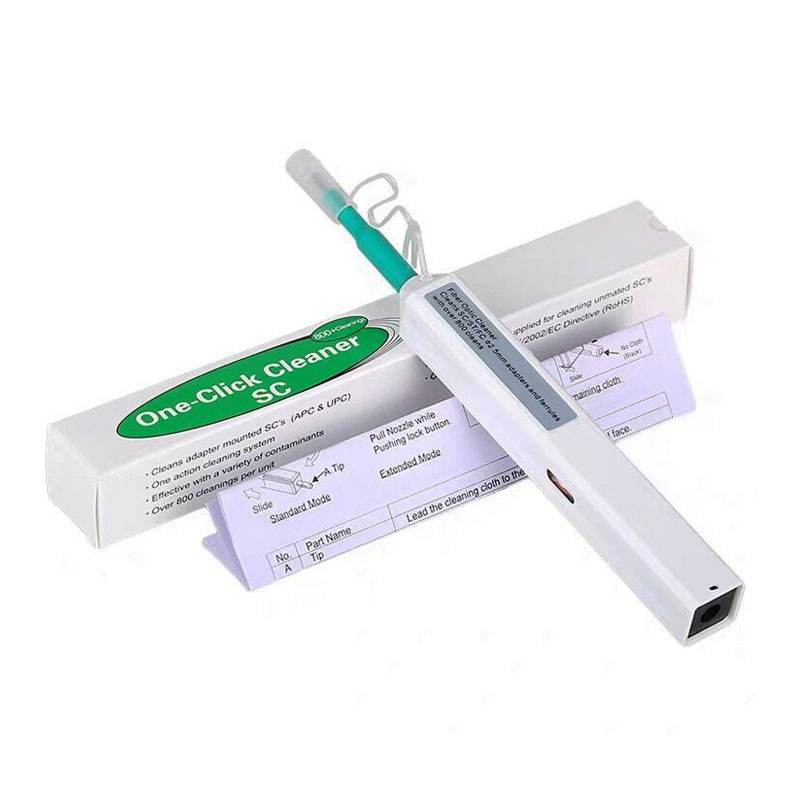

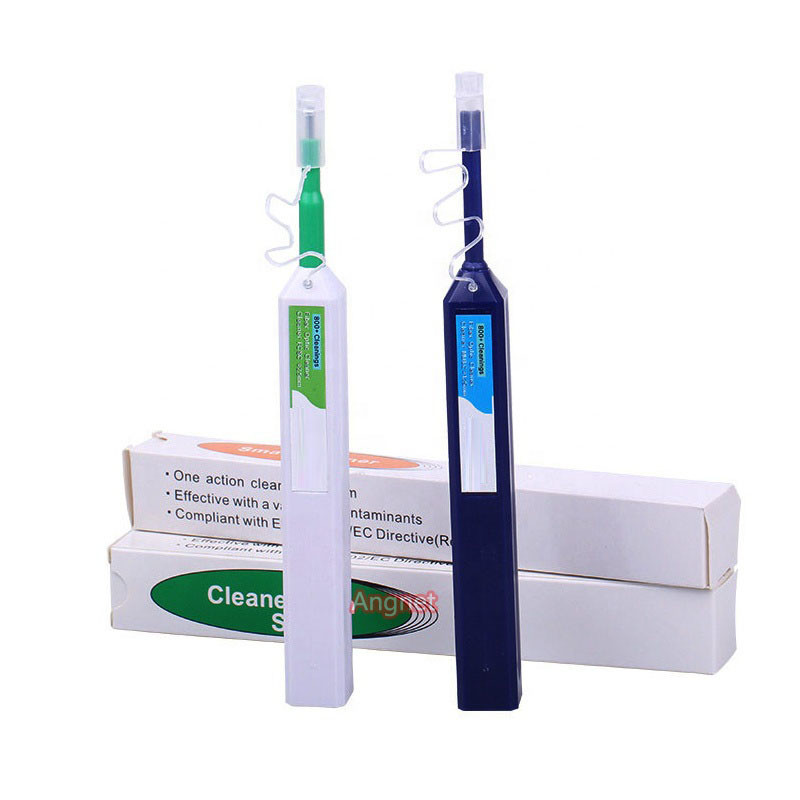

The one-click cleaner pen sc is an easy-to-use option for cleaning connectors on jumpers and in adapters. Widely used in optical network maintenance, engineering, device or device manufacturer, service provider, the advent of fiber optic cleaning pen easily solved the problem of fiber optic adapter ferrule cleaner. Simply insert the One-Click Cleaner into an adapter and push until an audible “click” is heard. The One-Click Cleaner uses the mechanical push action to advance an optical grade cleaning tape while the cleaning tip is rotated to ensure the fiber end-face is effectively, but gently cleaned. The One-Click Cleaner is a must-have for field technicians. Small enough to fit in a shirt pocket and a great addition to cleaning kits. Save your wrist – no more twist!
Ergonomic, comfortable design with single action cleaning
Precise mechanical action delivers consistent cleaning results
Automatically advance ensures each clean is performed with fresh cleaning tape
Low cost per clean
One action cleaning system
Easy pushing motion engages connector and initiates cleaner
Disposable with 800+ cleanings per piece
Made from anti static resin
Cleaning micro fibers are densely stranded and debris free
Extendable tip reaches recessed connectors
Cleaning system rotates 180 for a full sweep
Audible click when engaged
Cleans connectors on jumpers and in adapters
Effective on a variety of connector styles
A must-have for field technicians
|
Model Number |
FS-800 Fiber Optic Cleaner pen |
|
Classification Color |
BLUE,GREEN |
|
Ferrule |
2.5mm&1.25mm |
|
Connector Type |
SC,FC,MU,LC,ST,D4,DIN |
|
Dimensions(mm) |
W17.5*H17.5*L173 |
|
(Guide Cap dimensions and prongs are not included.) |
(Nozzle Extendability:L208) |
|
Function/Handling type |
One-Push |
|
No. of Cleanings |
>500times |
|
Cleaning Method |
Dry (Cleaning the Zirconia ferrule endface with cleaning cloth, with no chemical or solvent) |
|
Cleaning Times |
800 |
|
Cleaning Temperature |
-20 ~50dB(Return Loss) |
|
Weight |
200g |
